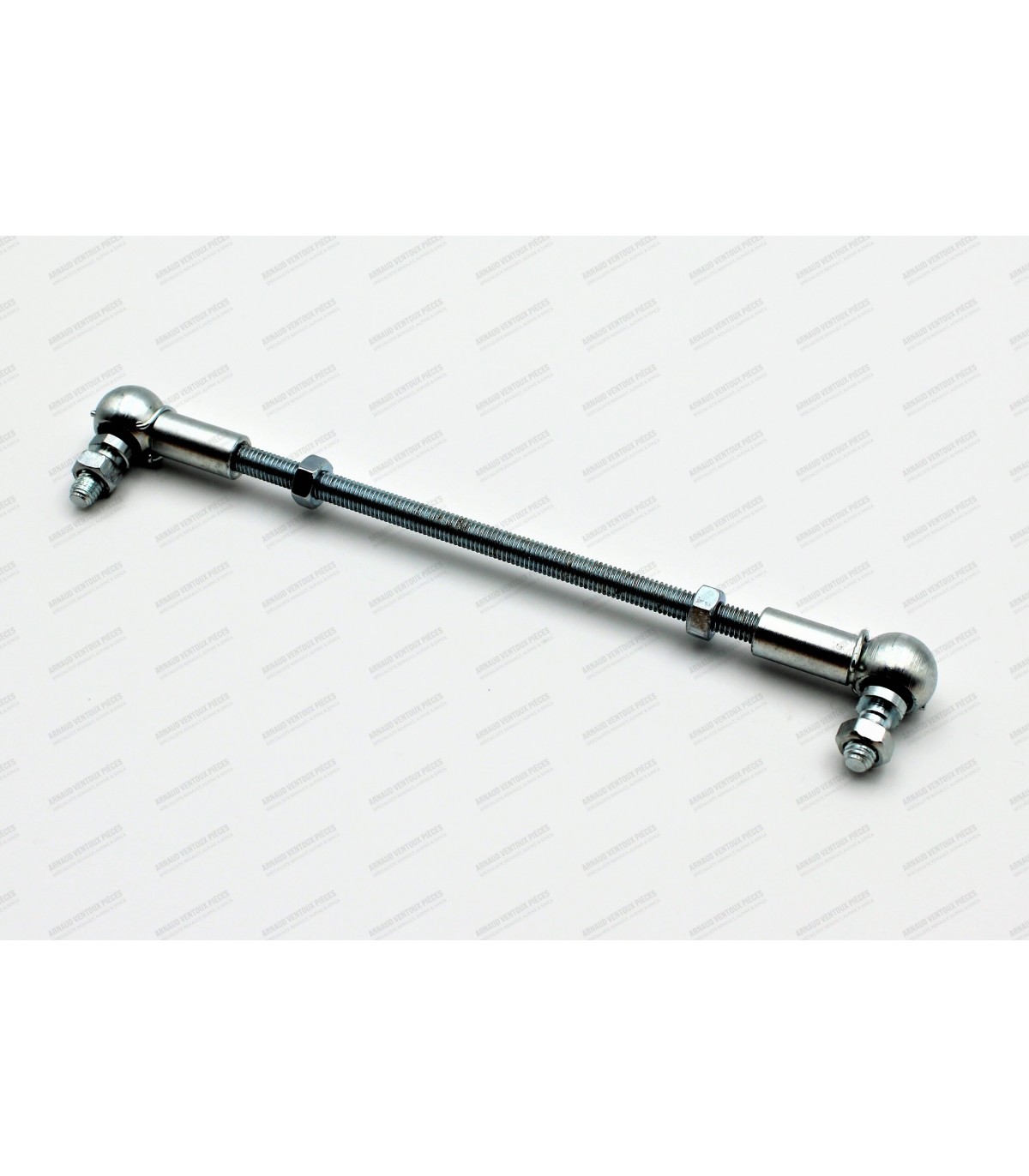

Metal adjustable throttle link

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.

The central unit is connected as follows:

• The 12V power supply (+ battery) wire on the "X" or "+" terminal
• The Switch or stalk control wire on the "L" or "Z" terminal
• The repeater indicator light wire (LED) on the "P" terminal

• Outer diameter: 260mm
• Hub passage diameter: 60mm
• Center distance of the 3 fixing holes: 71mm
• Thickness: 8mm

To turn on a temperature warning light

Trigger temperature 97°C

Suitable for:

• R5 Alpine Coupe / GR2 : Front Brake
• R12G / R17G : Front Brake
• R15.TS / R17TS / R17TL : Front Brake
• R16.TX (1st assembly) : Front Brake
• A310.4 (n°1 to n°909) : Front Brake
