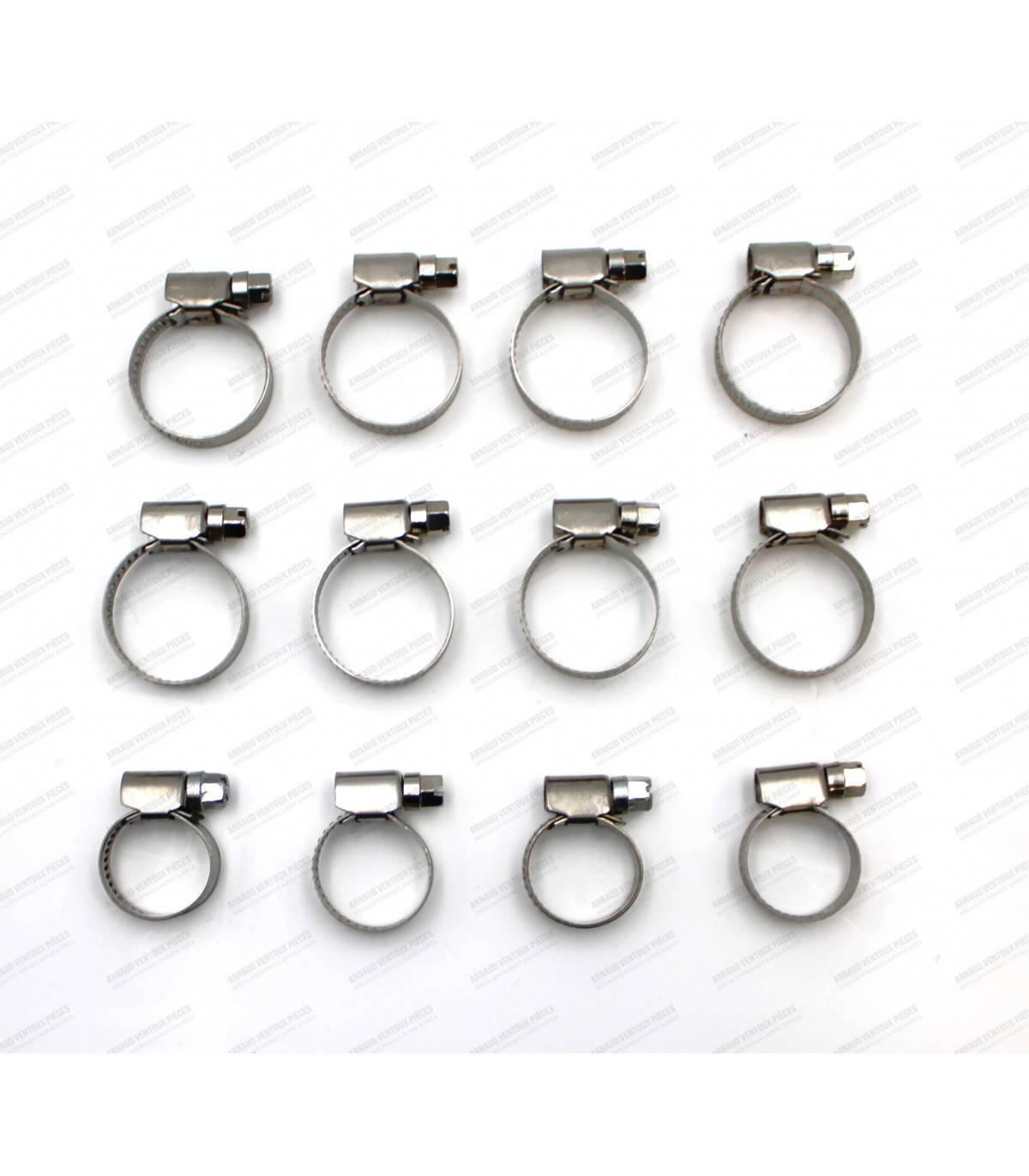

Kit of 12 stainless steel serflex clamps for heating circuit - A310.4 (2nd version)

• Supplied with 2 banjo bolts: M12x100 and 4 copper gaskets.

Compatible with the following vehicles:

• A310.4: From chassis no. 635 to end of series (With 2nd assembly clutch slave cylinder)
• A310 V6: All models

Features:

• Mounting hub 4 holes - Centering Ø 87mm
• Non-ventilated discs

Suitable for:

• A110.SC / SI: Rear disc
• A310.4 (All models): Rear disc

Suitable for:

• R5 / R18 / R21 / R25 / R30 / : Rear Brake
• R8: Rear Big Brake Installation
• R5 Alpine Turbo (122B): Rear Brake
• R12G / R17G: Rear Brake
• A110: Rear Big Brake Installation
• A310.4: Rear Brake
• A310 V6 (Pre-1980): Rear Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop facing forward (in the direction of wheel rotation)

• Alpine OE Ref: 6000002996 / 6000048136

Segment Characteristics:

• • Segment Diameter:Ø 78mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
