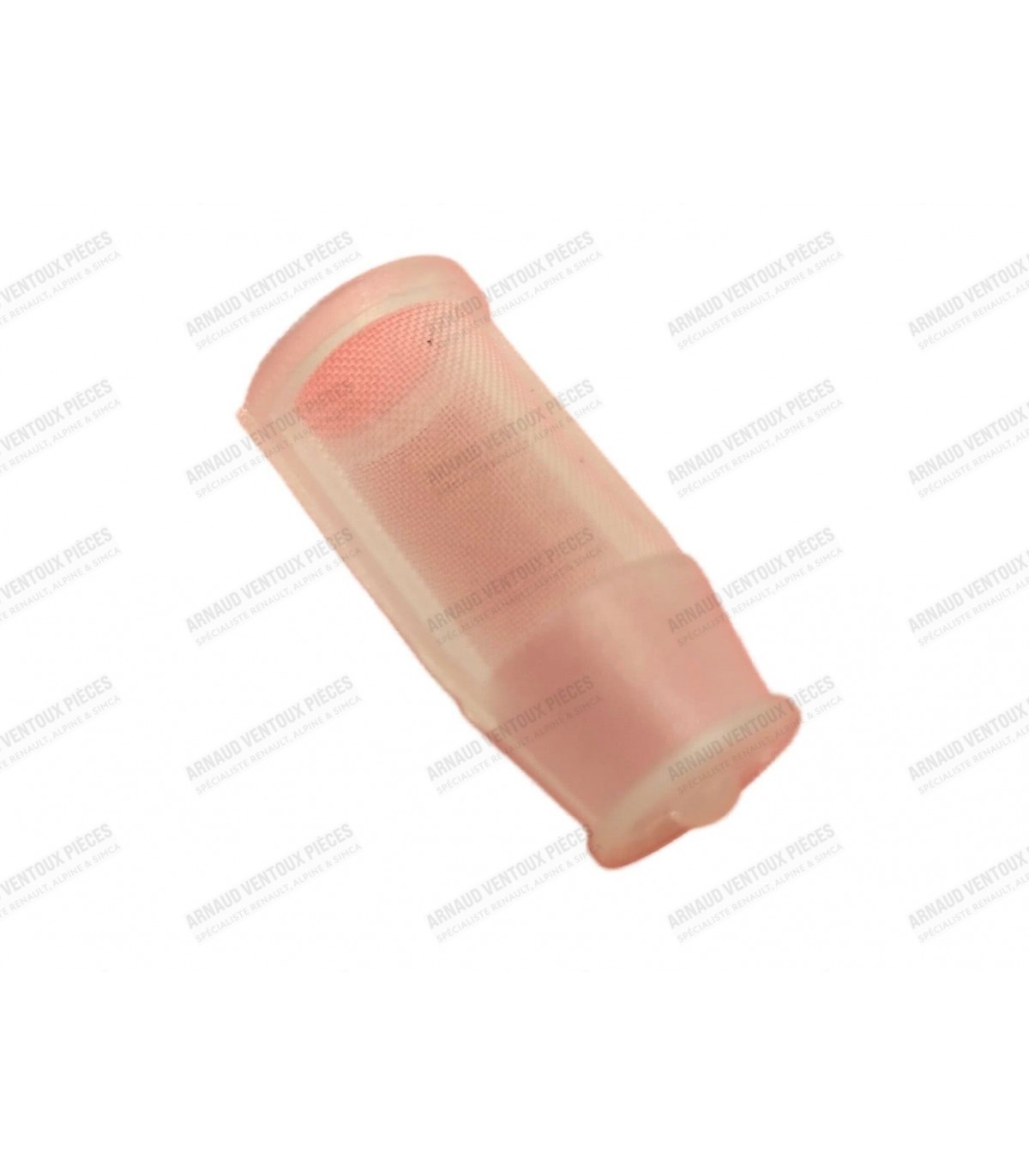

Filter for WEBER DCOE 40 and DCOE 45 carburetor

Reference:
48033
  • Suitable for WEBER 40DCOE and 45DCOE carburetors
  • Requires 1 part per carburetor

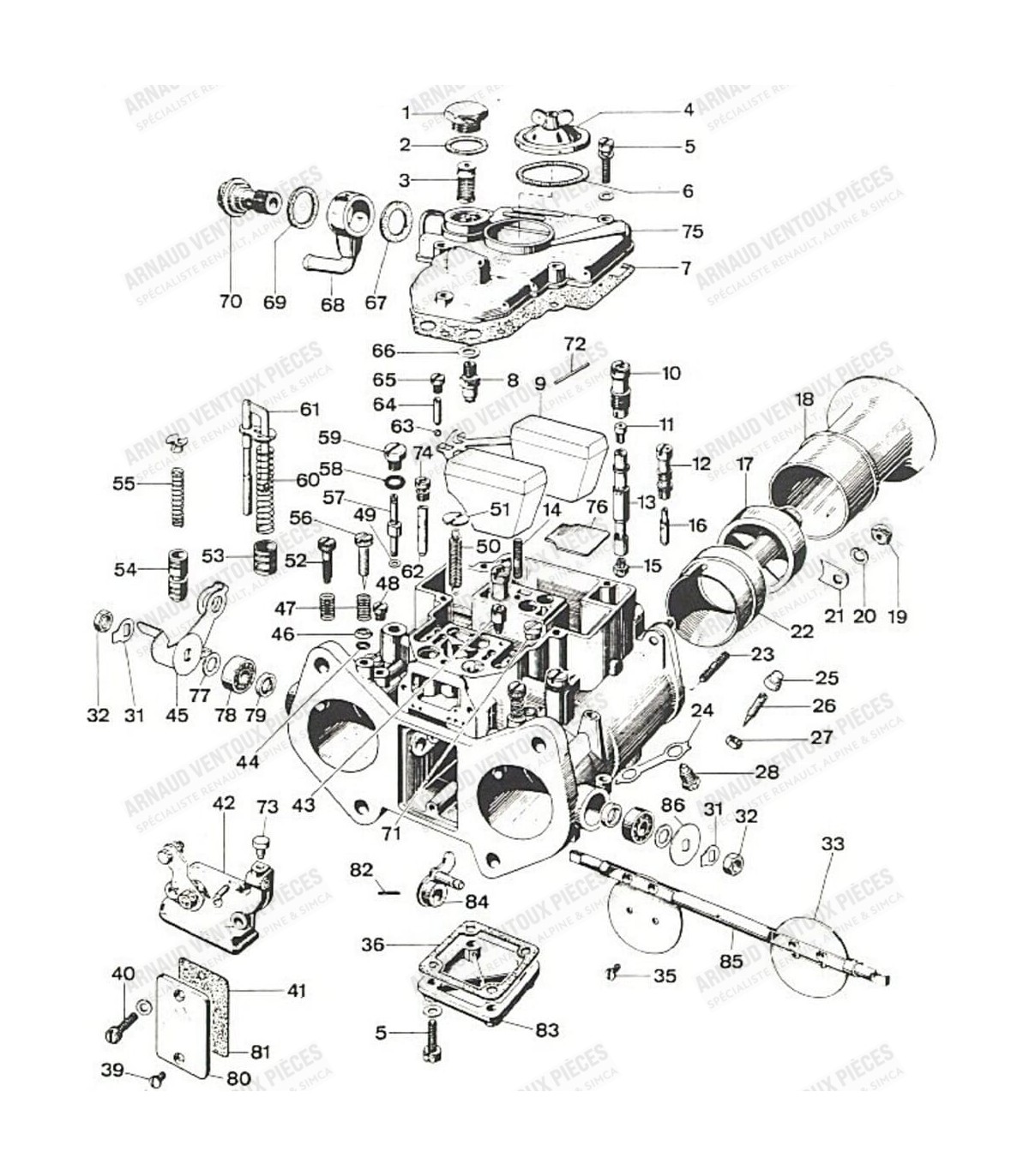

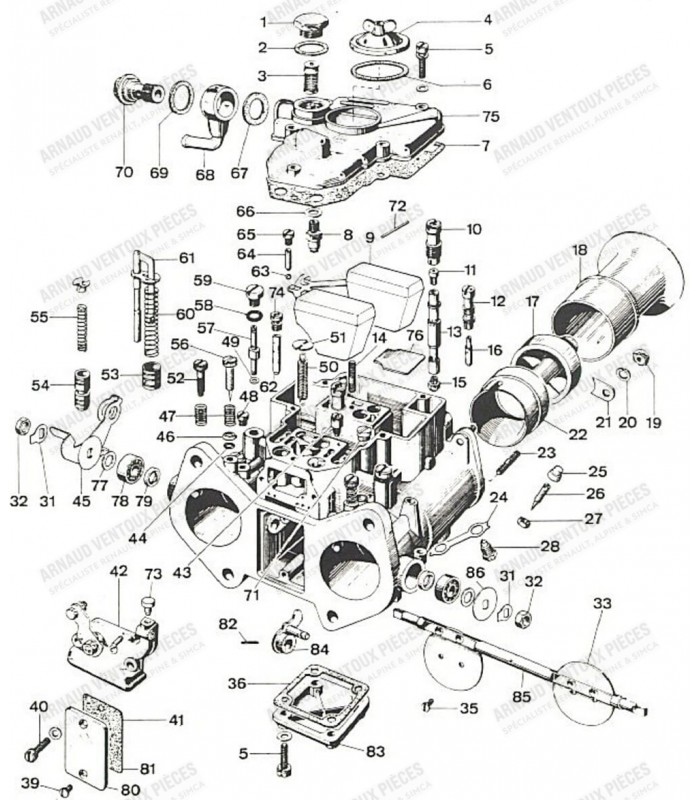

  • Number 3 on exploded view
  • Compatible with other WEBER carburetors, see below
Read moreShow less
€5.80 (tax incl.)
Order before 1pm and enjoy same day shipping !
In stock
Description

Below are the various WEBER carburetors compatible with the AVP48033 reference:

Carburetor Inlet Diameter

Type or model of Carburetor
from Ø22 to Ø28

24 IMB, 24/32 DDC, 26 IM, 26 IMB, 26 OC, 26/34 DHSA, 28 IMB, 28/30 DFTH, 28/30 DGV, 28/30 DHTA, 28 ICP, 28/36 DDE, 28/36 DHSA, 28/36 DLE,

28/36 DLEA, 28/36 DM, 28/36 DMA, 28/36 DMD
from Ø30 to Ø32

28/36 DLEA, 28/36 DM, 28/36 DMA, 28/36 DMD, 30 DIC, 30 DICA, 30 DMTE, 30 DMTR, 30 IBA, 30 ICF, 30/32 DHTA, 30/32 DMTE, 30/32 DMTR, 32 IBA, 32 ICB, 32 ICH,

32 ICR, 32 ICT, 32 DAF, 32 DAR, 32 DAT, 32 DATR, 32 DATRA, 32 DFB, 32 DFD, 32 DFM - DFE, 32 DG, 32 DGAS, 32 DGAV, 32 DGR, 32 DGV, 32 DHS, 32 DHSA, 32 DIF, 32 DIR,

32 DMSA, 32 DMTR, 32 IBSA, 32 IBSH, 32 ICS, 32 OF, 32/34 DMTL, 32/34 DMTR, 32/36 DAC, 32/36 DFAV, 32/36 DFV, 32/36 DGAV, 32/36 DGV

from Ø34 to Ø55

34 ADSD, 34 ADSDA, 34 DAT, 34 DATA, 34 DATC, 34 DATR, 34 DATRA, 34 DCHD, 34 DCHE, 34 DCS, 34 DGAS, 34 DHS, 34 DMS, 34 DMTR,

34 ICH, 34 ICR, 34 ICT, 36 DCA, 36 DCD,

36 DCNFA, ​​36 DCNV, 36 DCNVA, 36 DCNVH, 36 IDF, 38 ADLD, 38 ADS, 38 DCOE, 38 DGAR, 38 DGAS, 38 DPS, 40 DCOE 151, 40 DFA, 40 DFAV,

40 DFO, 40 IDF 70, 36 DCNF, 40 DCNF, 42 DCNF, 44 DCNF, 42 DFC, 44 IDF 71, 45 DCOE 152, 45 DFC, 48 DCO/SP, 48 DCOE, 48 IDF 6, 48 IDA, 50 DCO/SP, 55 COD/SP
Read moreShow less
Product Details
48033
