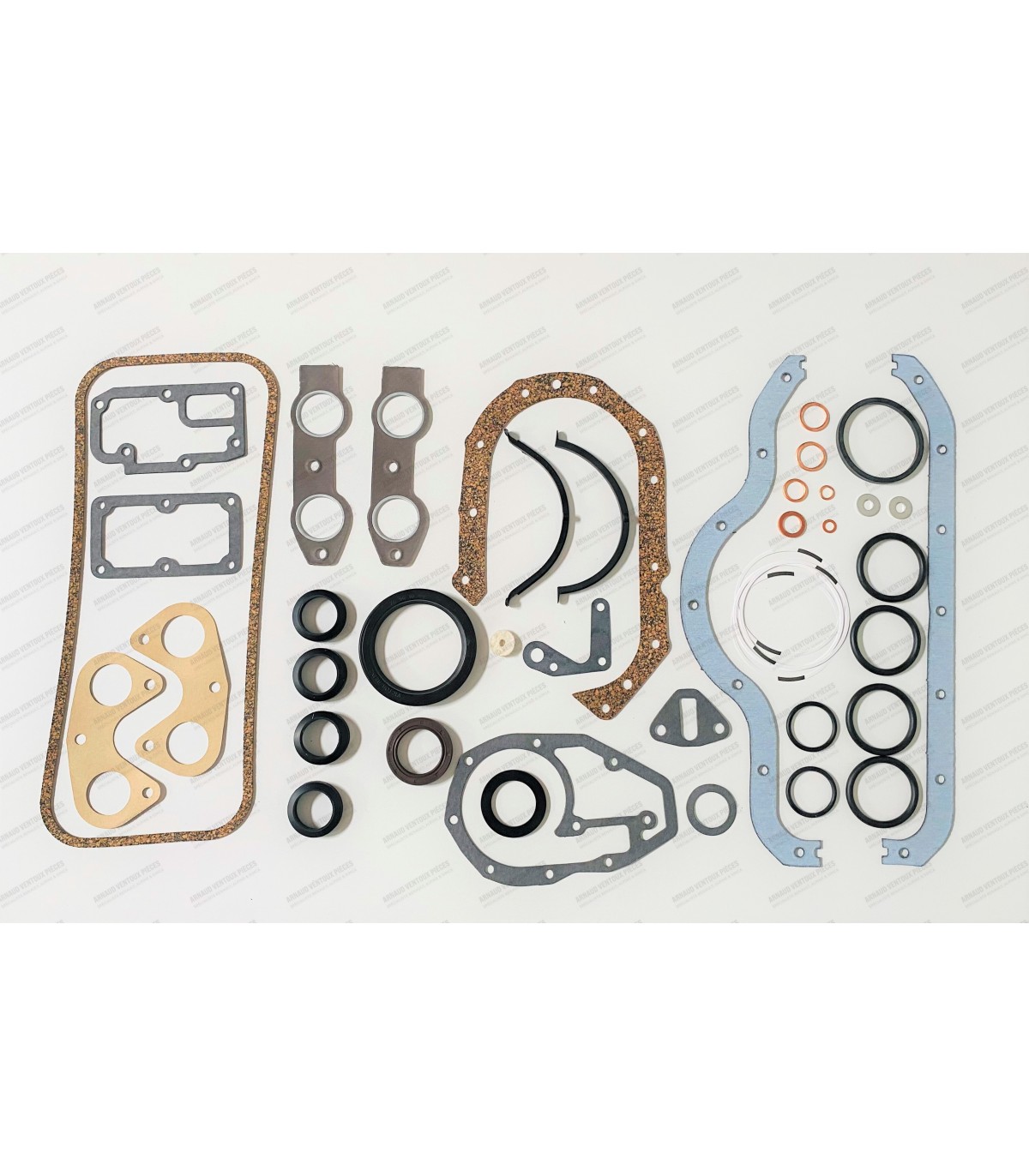

Engine gasket set (without cylinder head gasket) - 1255cc / 1296cc engine

• • Sold with water pump gasket
  • Distance between two pulley mounting bolts (Center-to-center distance):50mm
  • Pulley mounting using x4 M8 bolts (Not supplied)
  • Renault / Alpine OE Ref: 7701506944 / 7701457453

Suitable for:

• • R8 and R8G
  • Caravelle and Floride S
  • Alpine GT4
  • A110 (1300cc engine)
  • Matra Djet (Engine 1300 cm³)

To turn on a temperature warning light

Trigger temperature 105°C

• Supplied with x8 mounting studs and x4 O-rings (AVP4806) between the manifold and the carburetor.
• Carburetor mounting stud distance: 110mm and 70mm

The carburetors are mounted directly onto the manifold. A watertight seal is ensured by 4 O-rings; there is no need to use flexible or rigid flanges.

The AVP9215 water pipe is required in addition to the intake manifold.The original cooling circuit runs through the original intake manifold; if it is removed, the water circulation will be interrupted.

• Renault OE Ref: 7703001160 / 0607156600 / 0607156700

The oil filter sandwich plate fits between the oil filter and the engine block.

It offers improved oil flow thanks to wider, unrestricted internal channels, making it ideal for installing an additional oil cooler.

• Inlet and outlet ports (female):1/2" x 14 BSP (x2)
• Oil filter threaded adapter diameter:Male Ø 3/4"-16 UNF and female Ø 3/4"-16 UNF
• Two female ports: 1/8-27 NPT (for mounting oil pressure and temperature sensors)

Please note: this oil filter plate is not compatible with OEM hoses and fittings. You will need to replace these fittings and hoses.
