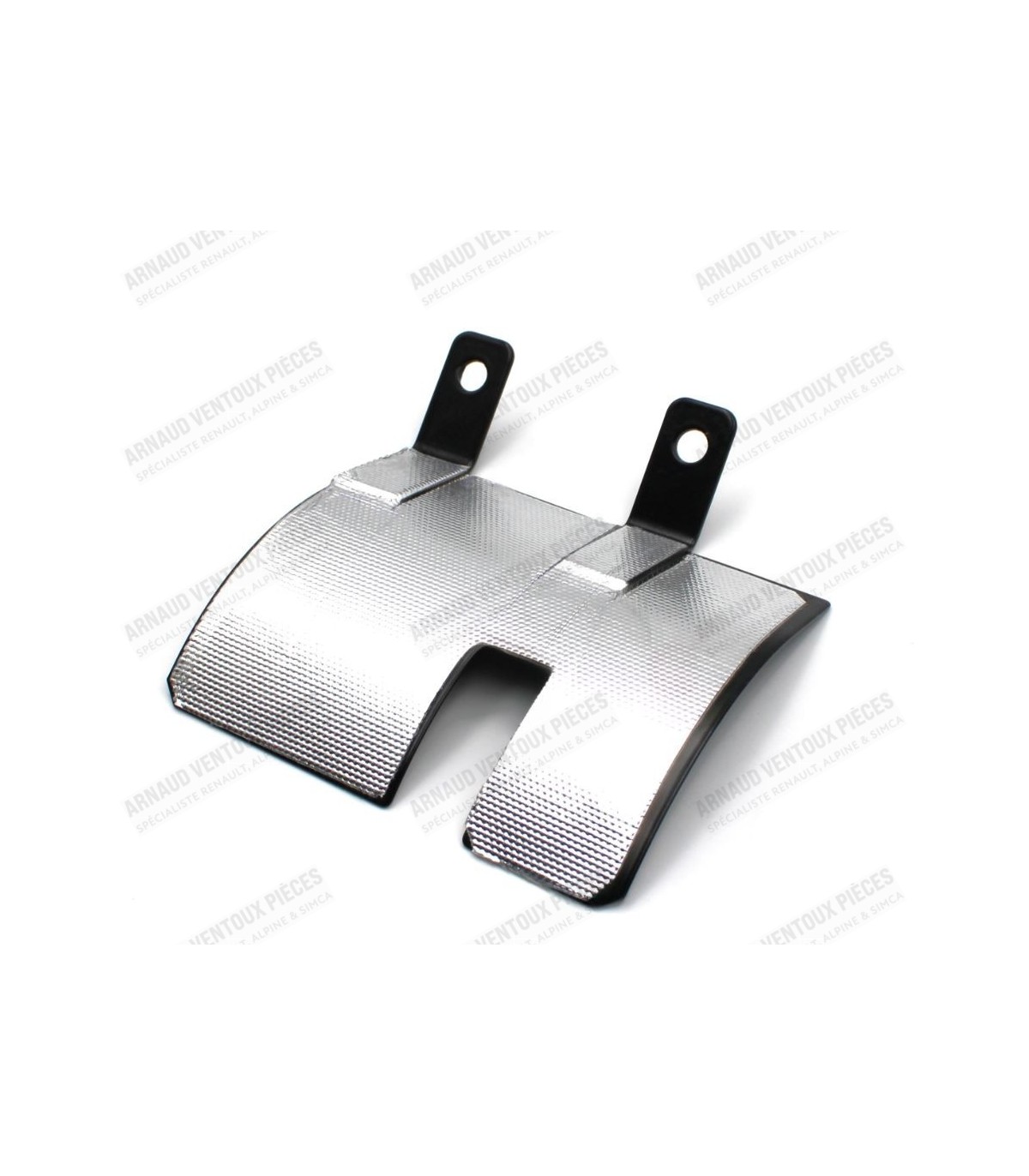

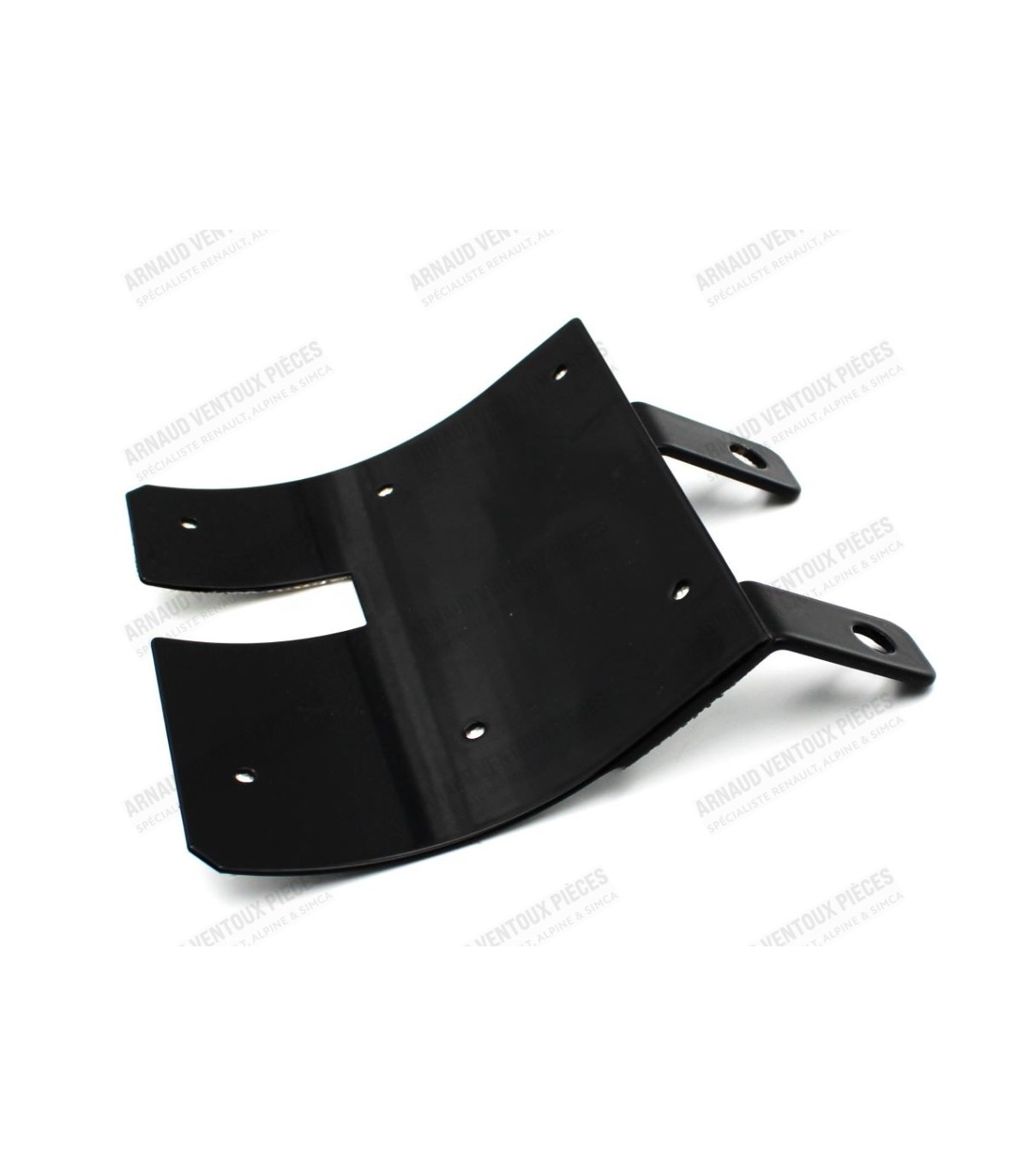

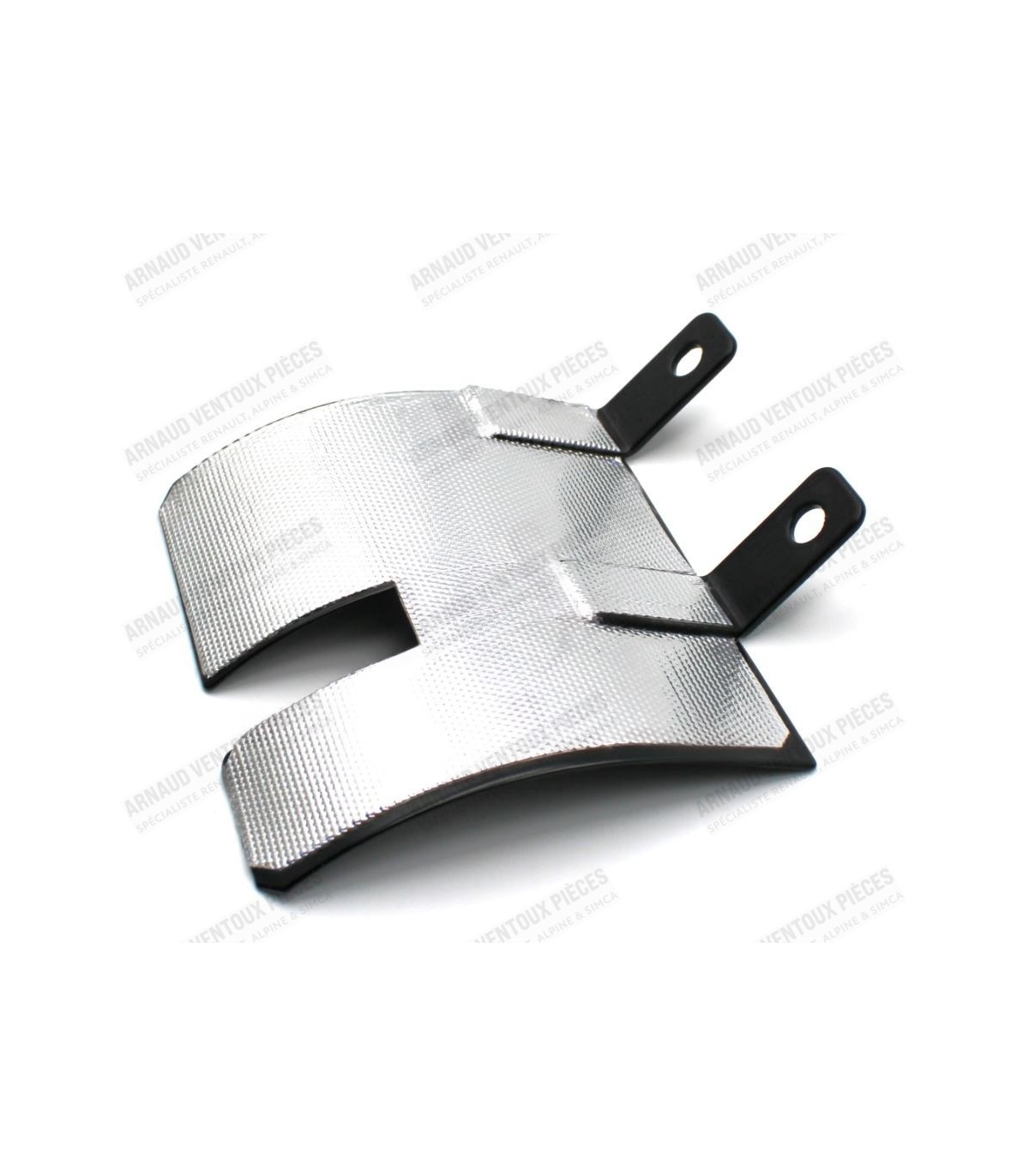

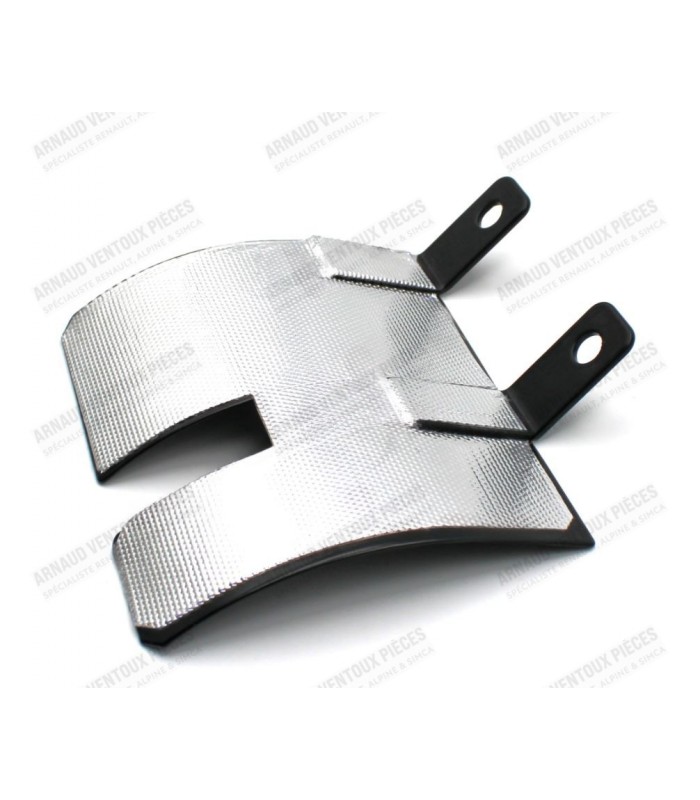

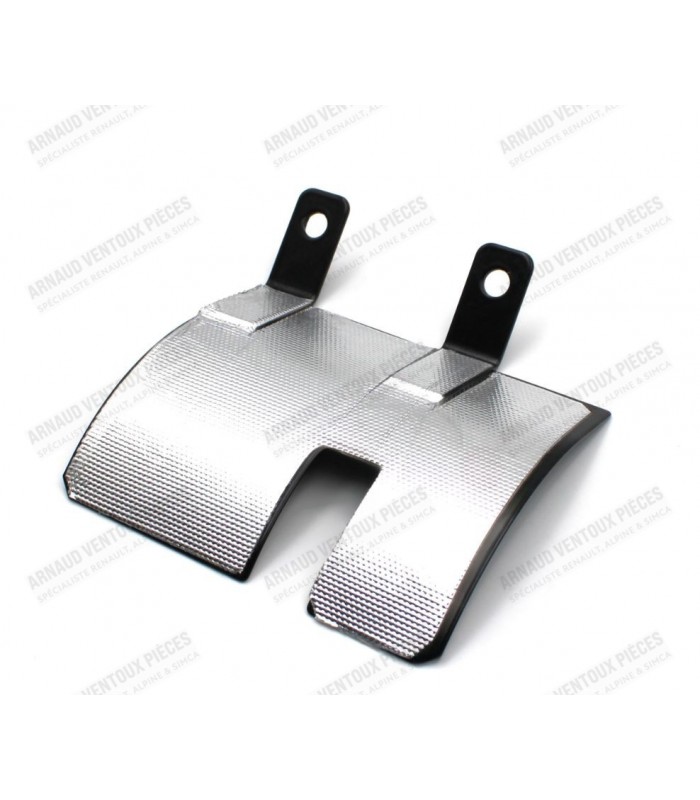

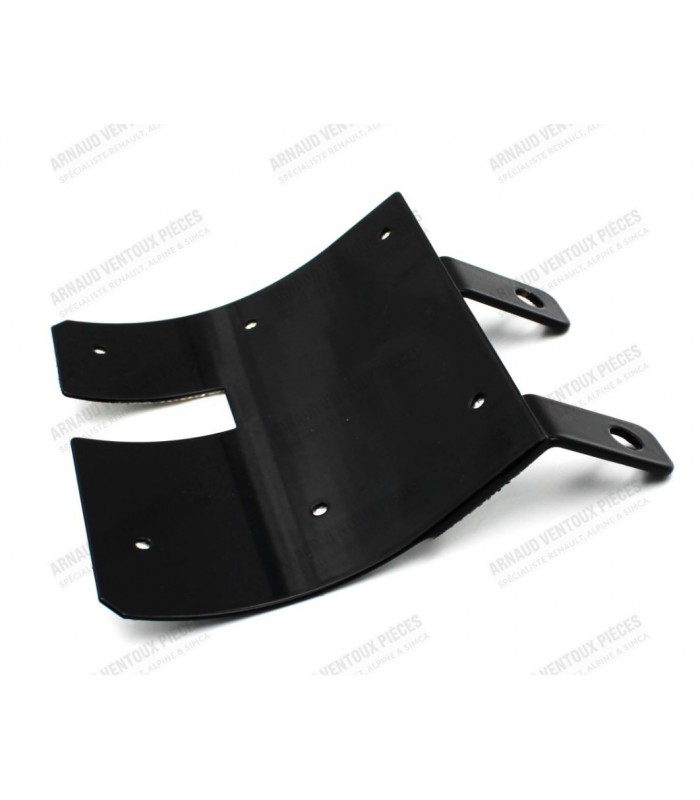

Starter heat shield with thermal protection - 1255cm³ or 1296cm³ engine - Ref 8320401

• Inlet / outlet connection : M22x150 (x2)

The central unit is connected as follows:

• The 12V power supply (+ battery) wire on the "X" or "+" terminal
• The Switch or stalk control wire on the "L" or "Z" terminal
• The repeater indicator light wire (LED) on the "P" terminal

• Screw M8x125
• Total length under head: 20.5mm

• For mounting a belt width: 13mm

Cylinder head gasket specifications:

• • Crimping diameter: Ø 62.5mm
  • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

• Sold in a pack of 4 slats.
• Material: French beech wood (Premium quality)
• Renault OE Ref.: 0857602212

• This ignition harness consists of4 spark plug wires and1 coil wire.
• We would like to point out that our spark plug wires are made with 7 mm diameter silicone wires, black with a standard copper core (wire material), which indicates that they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories such as a radio, tripmaster, monitor, or certain ignition kits electronic equipment, interference or disruption may occur.
