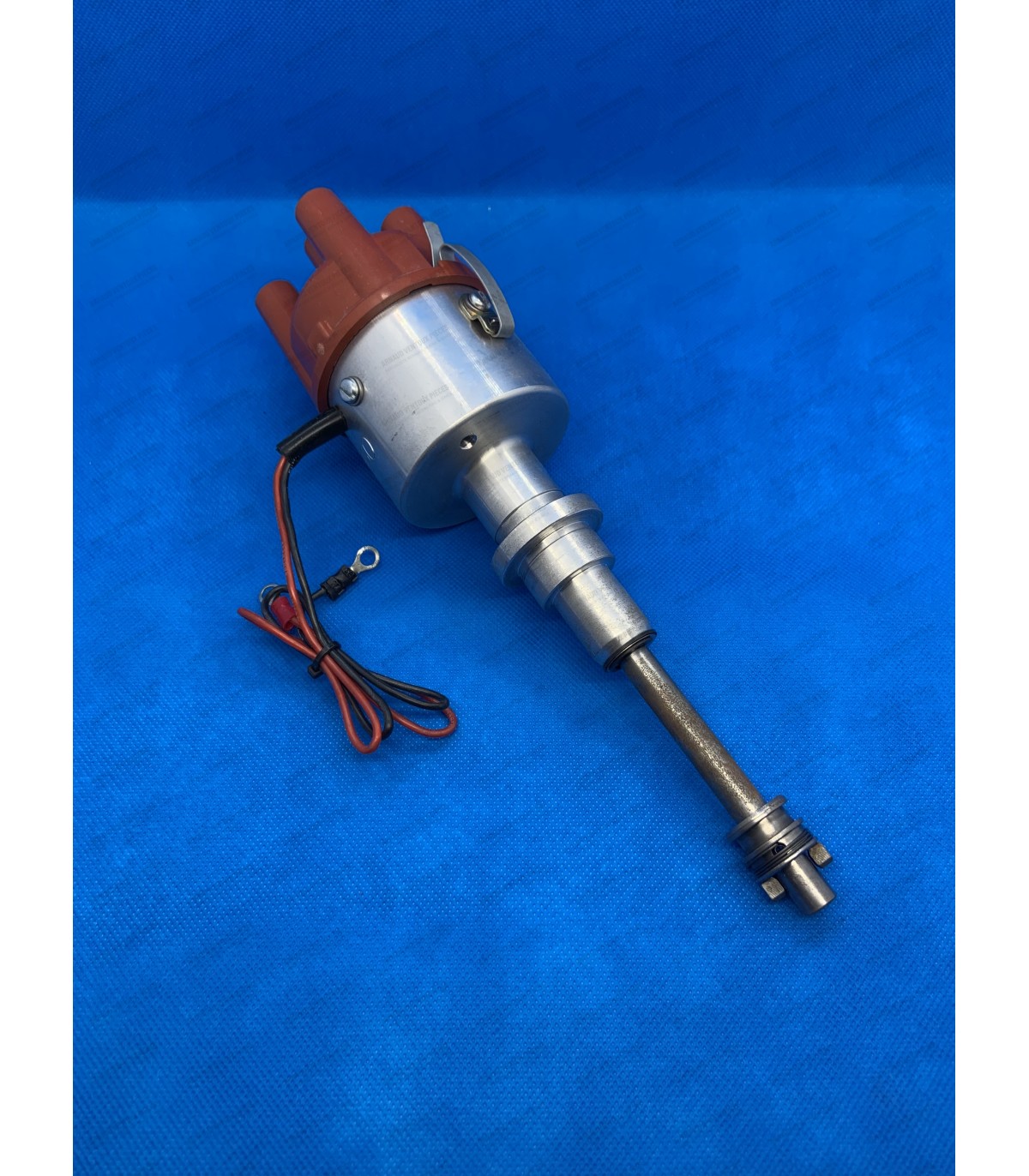

Ducellier 4136 ignition without depression (R230 curve) with integrated electronic ignition kit 12V

Compatible with :

• R8G R1134 (1108cc engine - Type 804) / R1135 (1255cc and 1296cc engine - Type812)
• Alpine A110 1100G and 1300G/S

• Built-in short extensions
• Straight coil terminal
• Coil wire length: 50cm
• This ignition harness consists of 4 spark plug wires and one coil wire.
• We would like to point out that our spark plug harnesses are manufactured with 7mm diameter silicone wires, in black or red, with a standard copper core, which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as radios, trip masters, monitors, or certain electronic ignition kits, some interference or disruption may be observed.

• Cardboard seal thickness: 1.3mm

• Primary winding resistance: 3.1 ohms
• Secondary winding resistance: 9200 ohms
• Coil compatible with electronic ignition kits ref. AVP4798 and AVP4799

• Mounting diameter of the head on the igniter: Ø 64.5mm

• Original Ducellier ref: 16903 - 661004 - 661154

Suitable for:

• R8.G (1255cc and 1296cc Engine)
• GT4 / Matradjet (1255cc Engine)
• A110 1100G and 1300G
• A110.1600 (S / SC / SI)
• A310.4 1600VF (Injection)
• R12G / R17G
• Super 5GT Turbo
