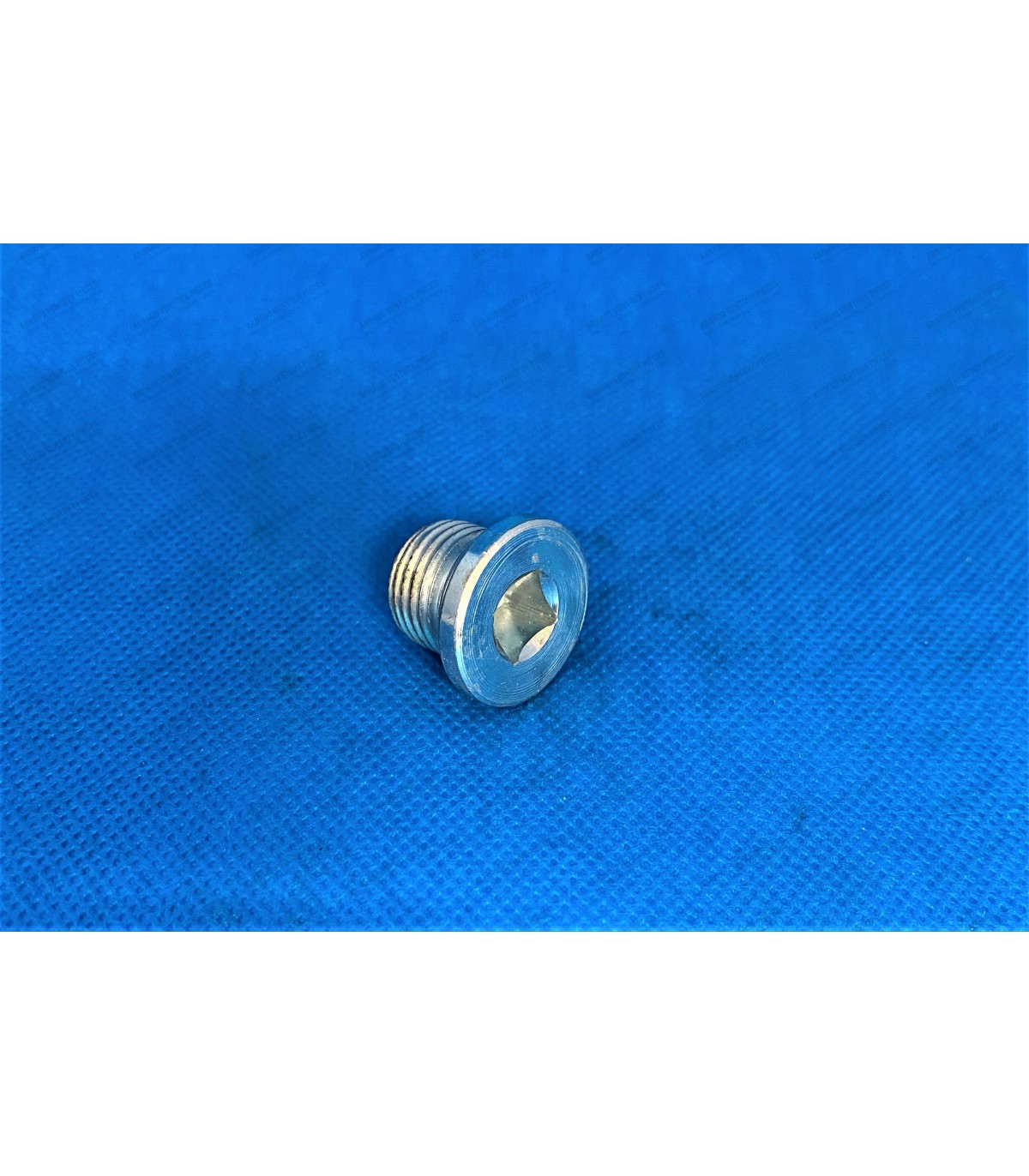

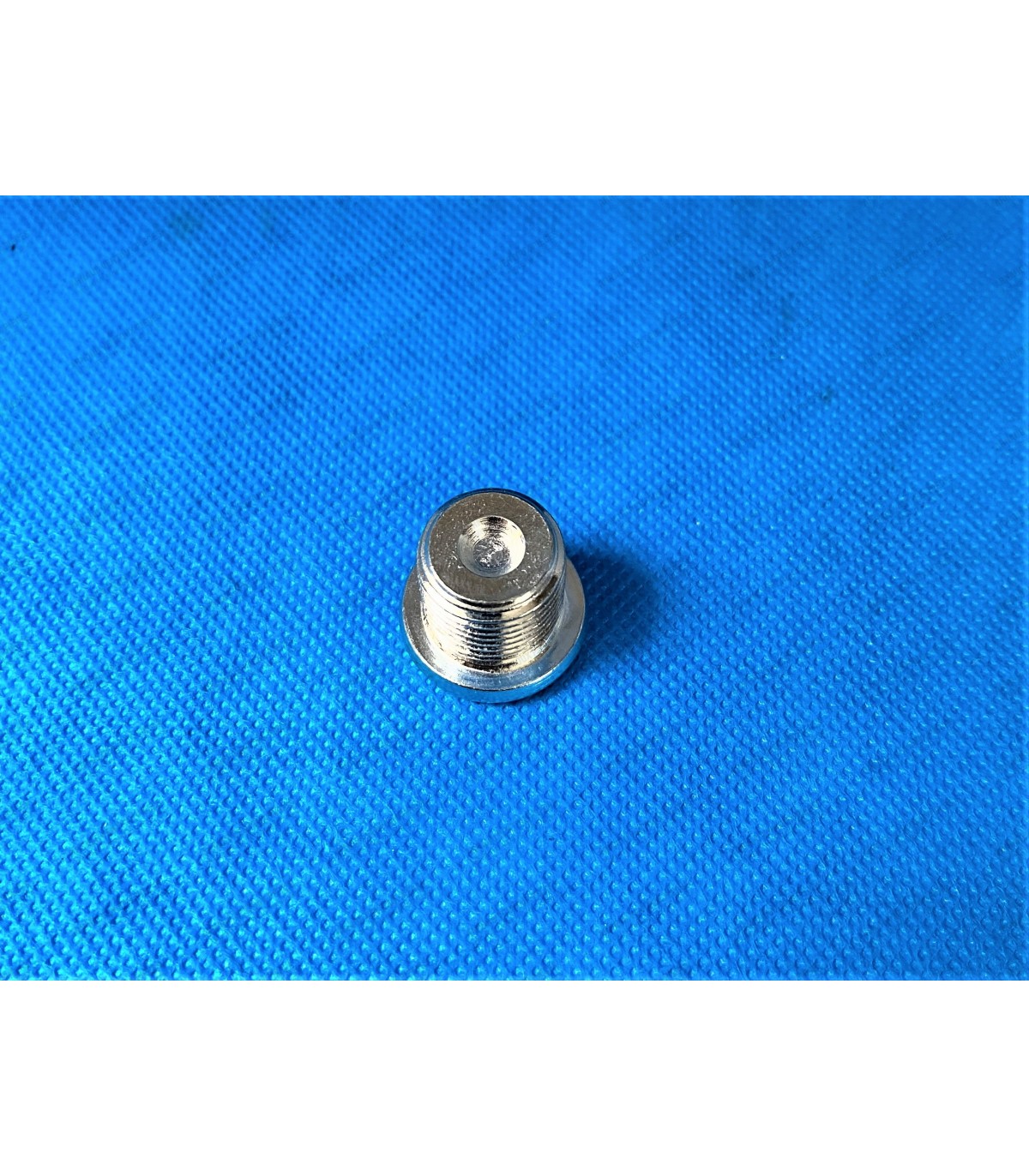

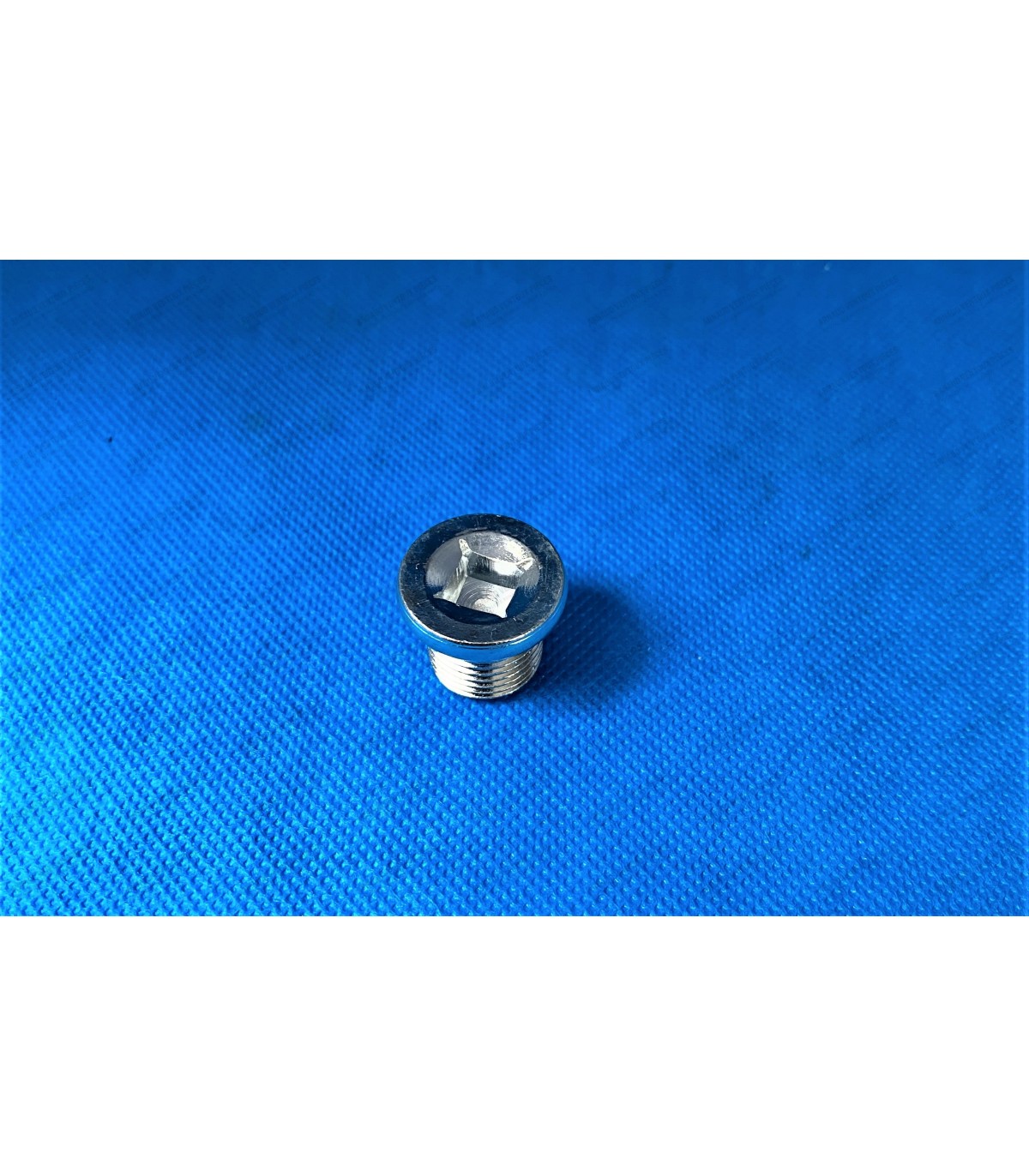

Drain plug - M16x150 - Réf 7903075033 / 7703075152

With Needle 1.25

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Panels (x4)

Dimensions of the various parts:

• • Liner bore diameter: Ø 55.8mm
  • Liner flange or top diameter (D): Ø 69.80mm
  • Liner base diameter (A): Ø 62.50mm
  • Overall height including skirts of cylinder liners (C):124mm
  • Height from top of cylinder liner to base gasket surface (E): 112.80mm
  • Shaft dimensions: Ø 16x46mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
  • Base gasket type: Copper gasket

Piston mounting direction: an arrow drawn perpendicular to the piston axis The figure is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​specified by the manufacturer or given in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Brake Disc Specifications:

• Outer Diameter: Ø 228mm
• Inner Centering Diameter: Ø 83mm
• Mounting Hole Spacing: 49.5mm
• Mounting with 6 Bolts: M8x125
• Disc Offset: 28.5mm
• Brake Disc Thickness: 10mm (Solid Discs)
• Sold in pairs (2 discs)

Important Brake discs have a specific mounting direction that must be respected; They are not interchangeable.

Mounting direction of a solid, non-ventilated brake disc : Discs must be installed so that the edge of the grooves closest to the outer edge of the disc makes contact with the brake pad first.

For competition use only; do not use these discs on public roads.

Suitable for:

• R4 Saloon / Van F4 and F6 / Rodeo : Front disc
• R5 Alpine (1223): Disc front
• R5 Alpine Turbo (122B) / Alpine Coupe / GR2: Rear disc
• R12 / R15TL: Front disc
• R12G / R17G / R17TS: Rear disc

Inlet and outlet Ø 6-8mm

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).
