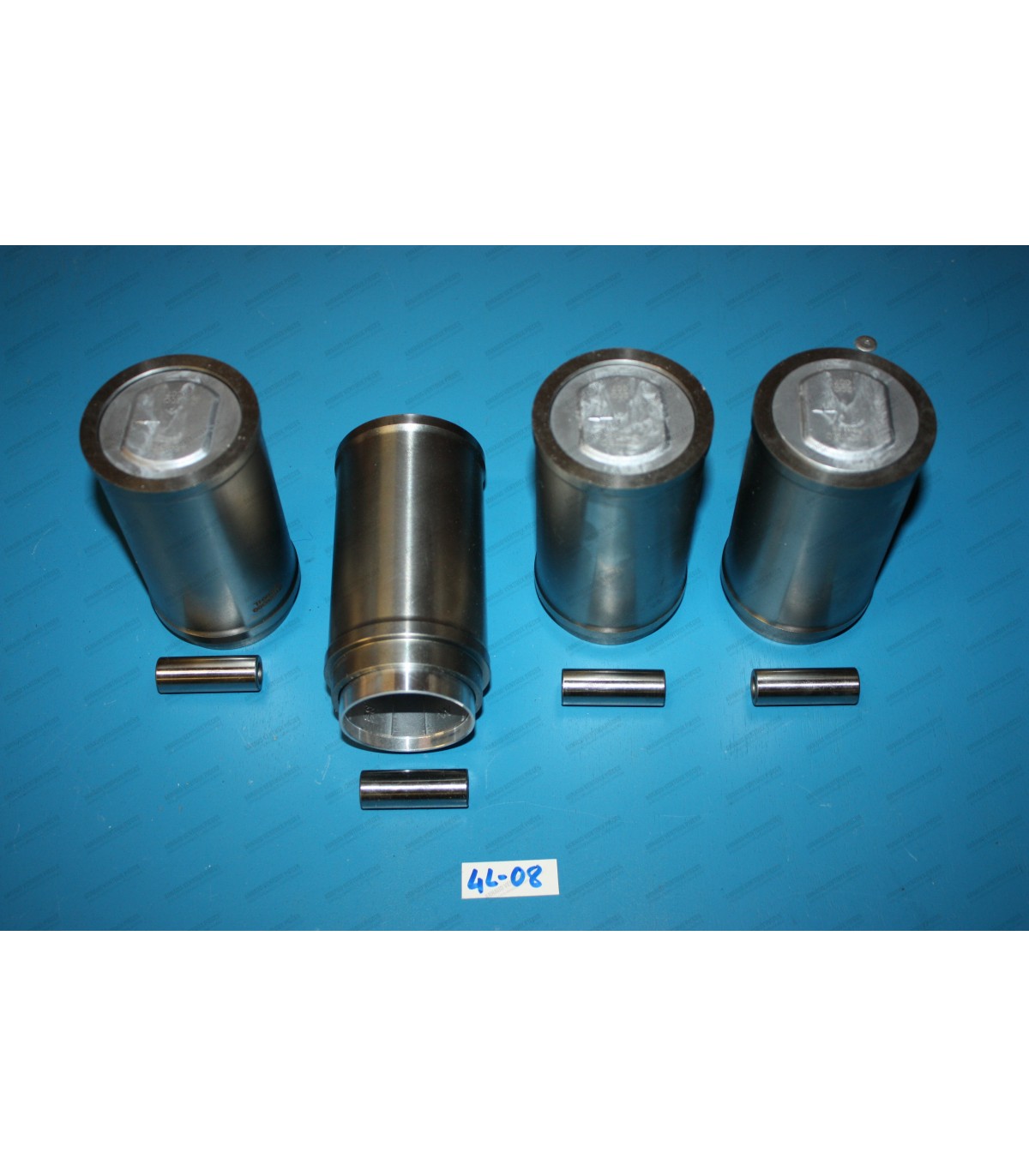

Set of 4 pistons and 4 liners Ø 55.8mm with segments and pins (Ø 16x45x10mm) - 782cc engine (Type 839-1 / 839-06)

Reference:
4L-08

The sets are supplied with the following components:

  • Liners (x4)
  • Pistons (x4)
  • Rings (x12)
  • Panels (x4)

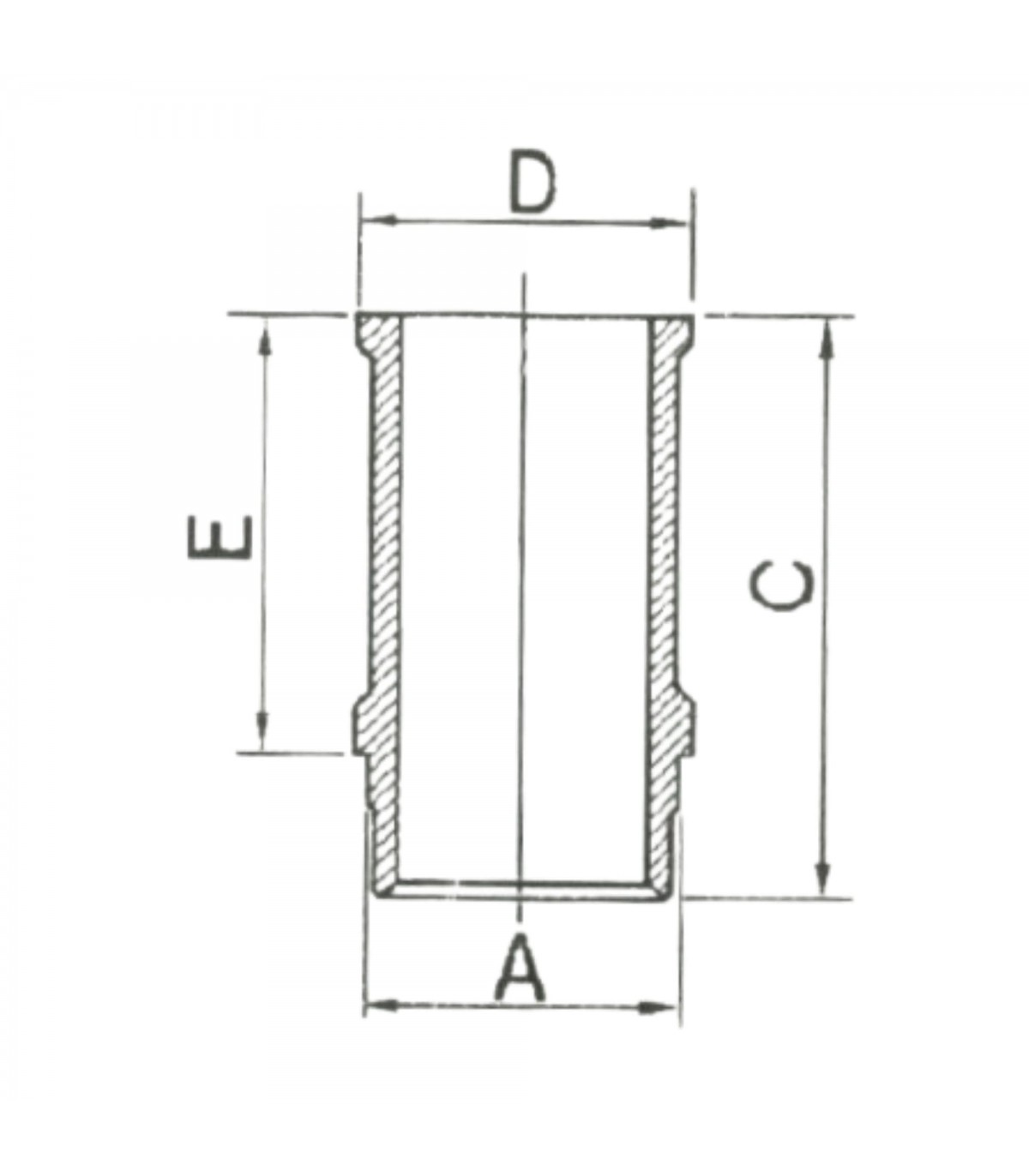

Dimensions of the various parts:

    • Liner bore diameter: Ø 55.8mm
    • Liner flange or top diameter (D): Ø 69.80mm
    • Liner base diameter (A): Ø 62.50mm
    • Overall height including skirts of cylinder liners (C):124mm
    • Height from top of cylinder liner to base gasket surface (E): 112.80mm
    • Shaft dimensions: Ø 16x46mm (Cirlip-free mounting)
    • Ring thickness:1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
    • Base gasket type: Copper gasket

Piston mounting direction: an arrow drawn perpendicular to the piston axis The figure is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​specified by the manufacturer or given in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Read moreShow less
€366.00 (tax incl.)
Order before 1pm and enjoy same day shipping !
In stock
Product Details
4L-08
