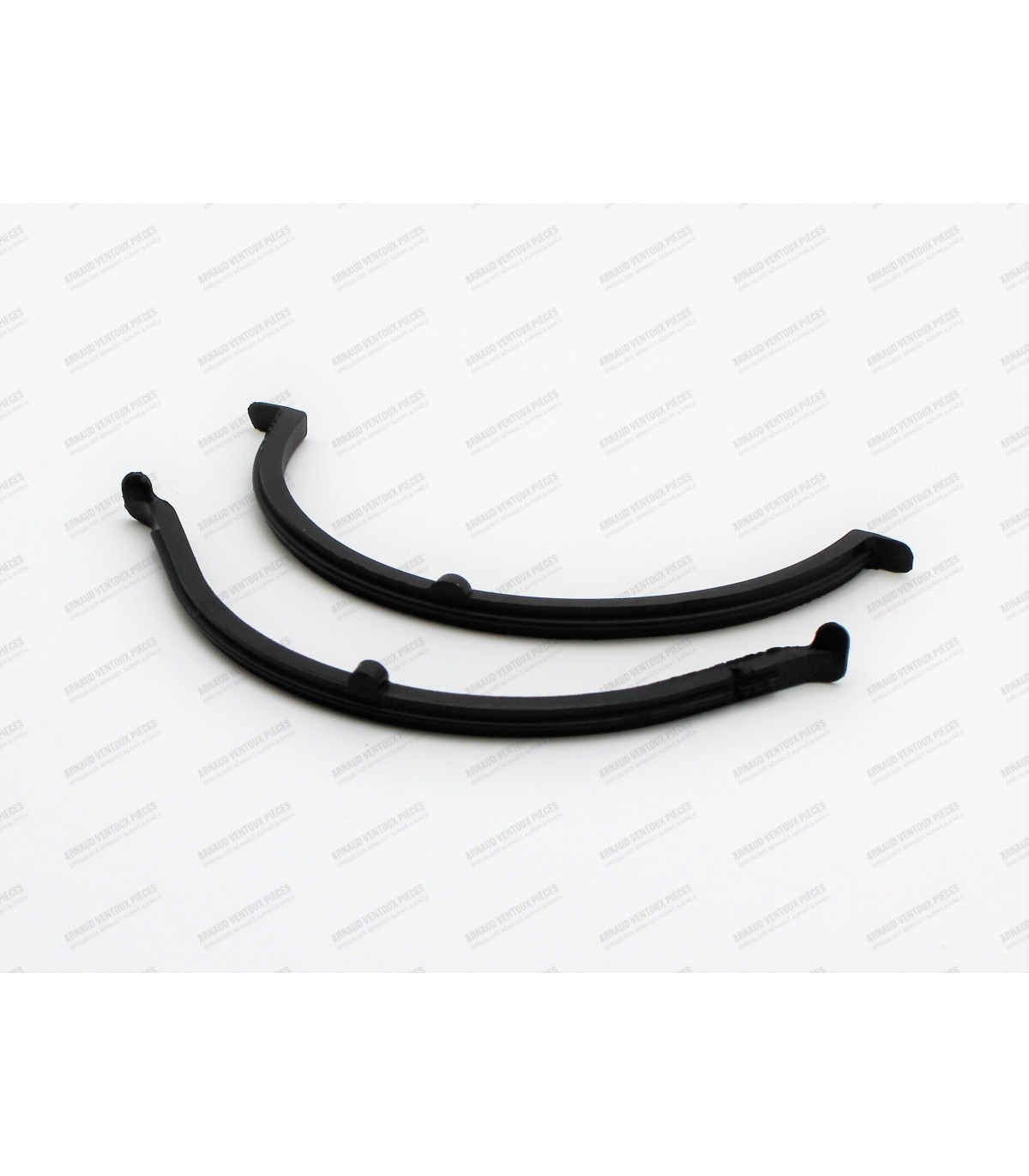

Engine oil pan cork seal - large bearing

• R4 (Billancourt Engine): Alternator belt - Ref 0854249800
• R5 Alpine (1223) / R5 alpine Turbo (122B): Water pump belt

• 4 spark plug wires + 1 coil wire
• Terminals on coil straight
• Length of coil cable: 61cm
• Length of 2 spark plug cables: 26.5cm
• Length of 2 spark plug cables: 36.5cm
• We would like to point out that our spark plug wires are made with 7mm diameter, black silicone wires with a standard copper core (wire material), which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as a radio, tripmaster, monitor, or certain electronic ignition kits, interference or disruption may occur. happen.

Suitable for:

• R8 / A110: Rear Big Brake Assembly
• R5 Alpine Turbo (122B): Rear Brake
• A310.4: Rear Brake
• A310 V6 (Pre-1980): Rear Brake
• R12G / R17G: Rear Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop facing forward (in the direction of wheel rotation).

For competition use only. Do not use these brake pads on public roads.

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Pin (x4)

Dimensions of the various parts:

• • Liner bore diameter: Ø 76mm
  • Liner flange or top diameter (D): Ø 90.10mm
  • Liner base diameter (A): Ø 80.60mm
  • Overall height including skirts of cylinder liners (C): 134mm
  • Height from top of cylinder liner to base seal area (E): 95mm
  • Shaft dimensions: Ø 20x65mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: one arrow drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Each kit is composed of all the color codes
