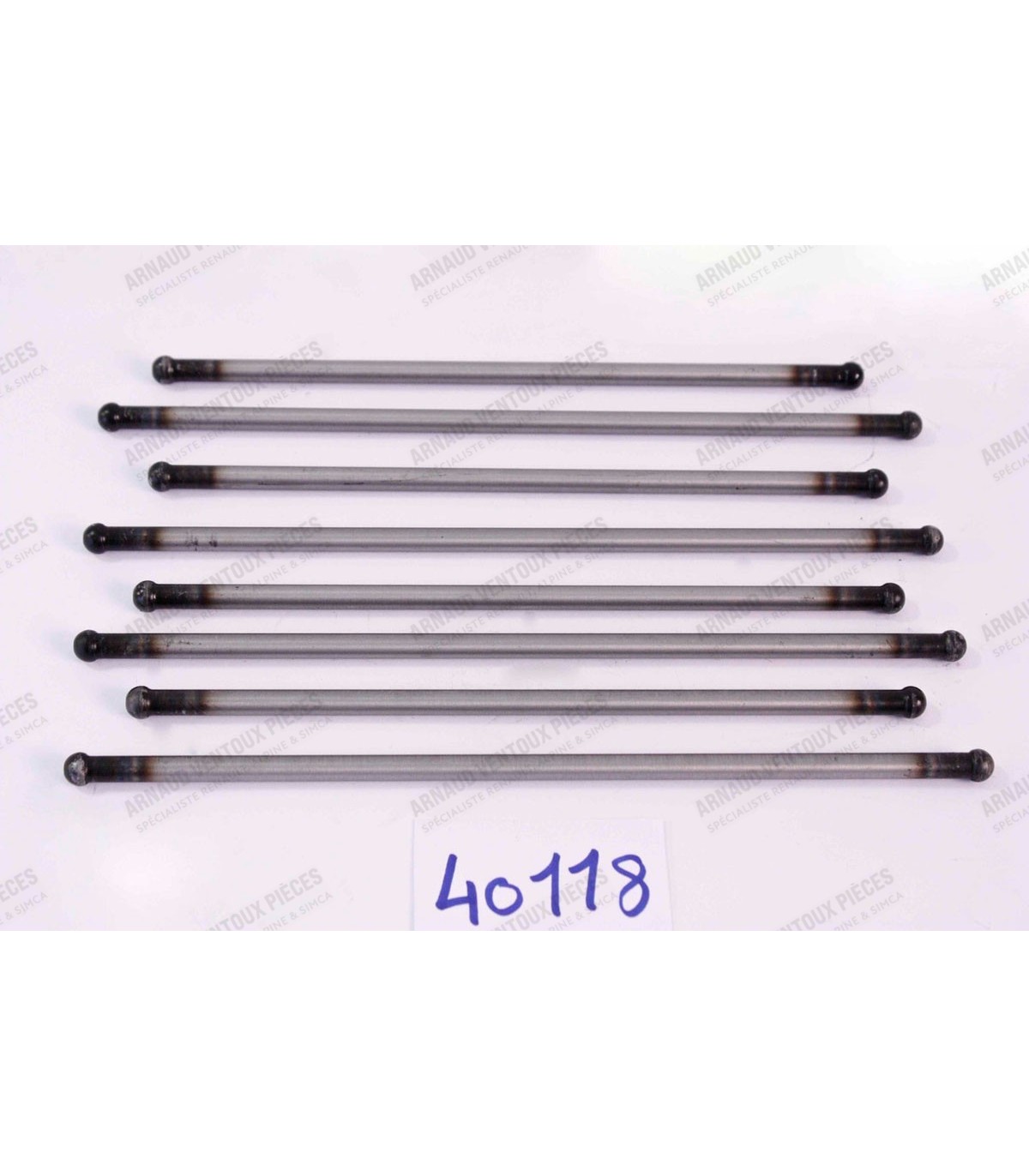

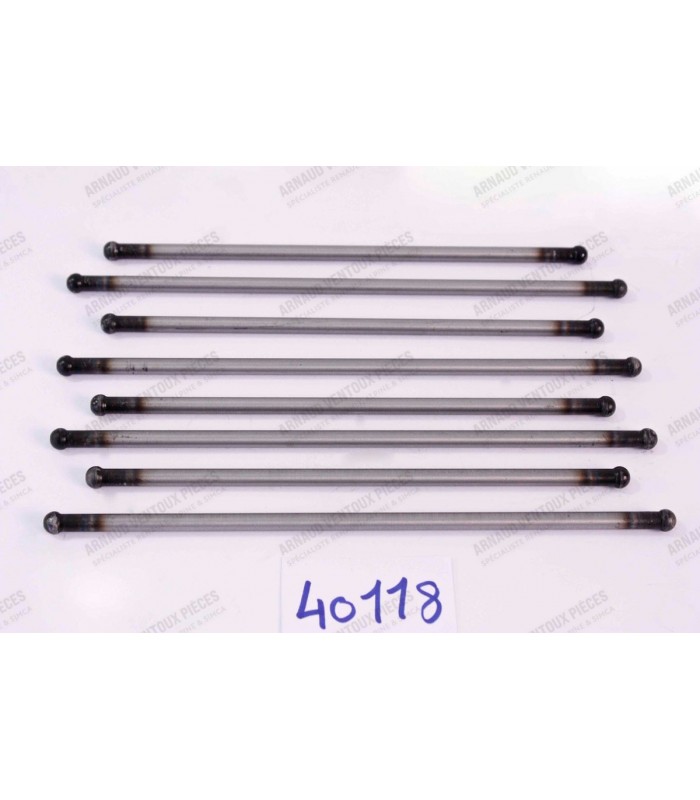

Set of 8 pushrods 2mm longer than stock - Lg: Adm 168mm / Ech 191mm

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Crankpin Diameter (A): Ø 43.73mm
• Housing Diameter (B): Ø 47.62mm
• Bearing Width (C): 20.75mm
• Bearing Thickness (D): 1.93mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

Thicknesses:
White Gasket: 0.06mm
Black Gasket: 0.07mm
Red Gasket: 0.09mm

For mounting the oil pressure sender (AVP4079) on the R5 alpine engine

Bearing Dimensions:

• Dimension: Repair Dimension (+0.25)
• Junnel Diameter (A): Ø 45.75mm
• Housing Diameter (B): Ø 49.89mm
• Bearing Width (C): 24.50mm (x4)
• Bearing Width (C): 19.50mm (x6)
• Bearing Thickness (D): 2.04mm
• Smooth bearings with lugs and holes Lubrication (x5) and grooves (x5)
• Bearing material: Bi-metal

• Suitable for WEBER 40DCOE and 45DCOE carburetors
• Requires 1 part per carburetor
• Number 3 on exploded view
• Compatible with other WEBER carburetors, see below

• OE Renault Ref: 0857694300
