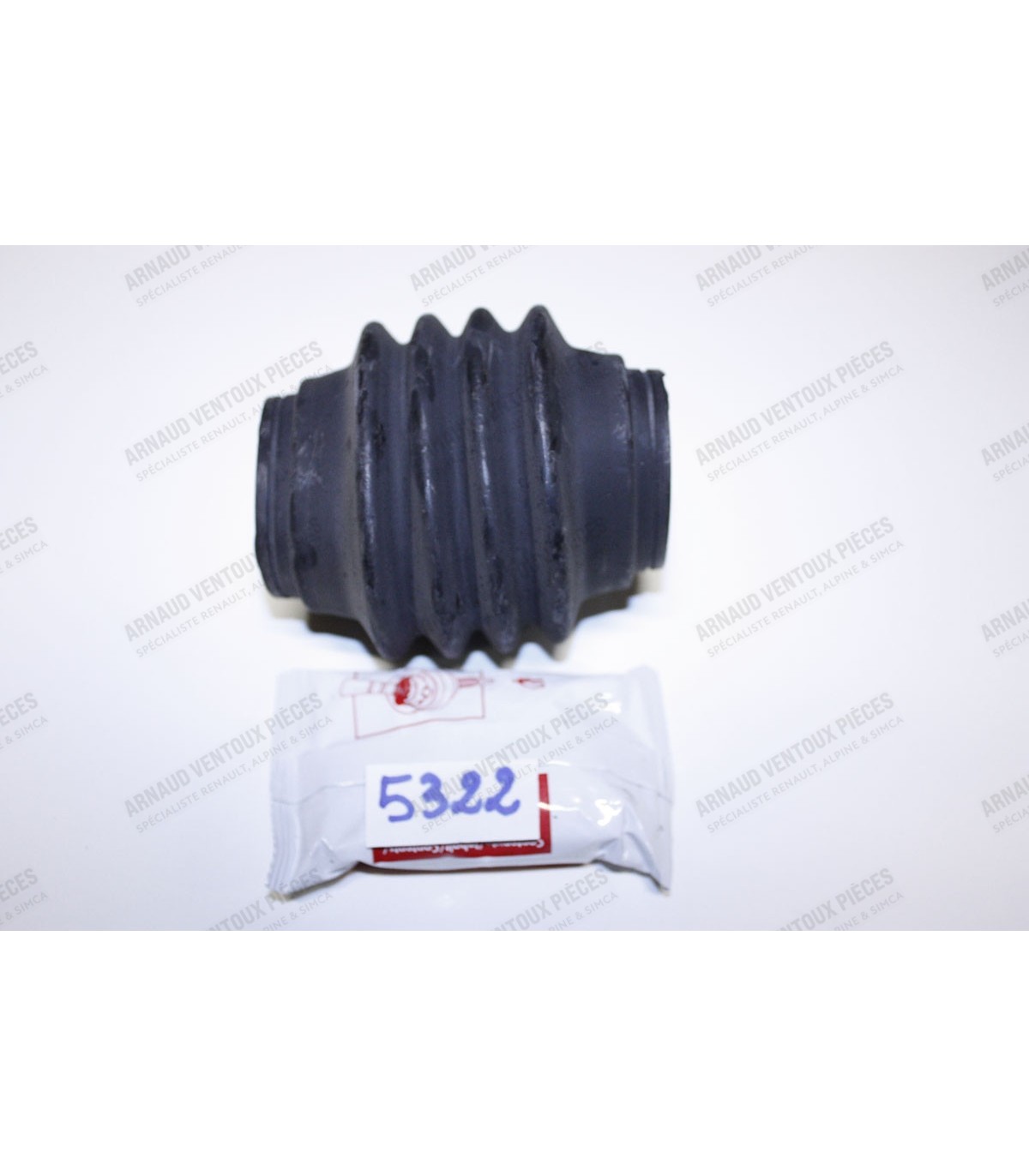

Cardan joint gaiter on the gearbox side - Ø 53x53x125mm - Ref 7701000986

Height 49mm (Extraflat)

Suitable for:

• R4 /4L : Front Brake
• R5 : Front Brake
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R8: Big Brake Installation Front Brake
• R12 (All models) : Front Brake
• R15 / R16 / R17 (All models): Front Brake
• A110 : Big Brake Installation Front Brake
• A310.4 / A310 V6 (Pre-1980) : Front Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)

• Suspension ball joints: M12x125 axle - Cone Ø 12.50mm to Ø 14mm
• Mounting center distance on the wishbone: 42mm and 51mm

Renault OE Ref: 7701450635 / 7701461161

Suitable for:

• R8 / A110: Front Brake (Big Brake Assembly)
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R12 (All models) / R15TL: Front Brake
• R16(L / TL / TS ) / R16TX (2nd assembly): Front Brake
• A310.4 (n°910 at the end of the series): Front Brake
• A310 V6 (Before 1980): Front Brake

Stud Dimensions:

• • Stud Thread: M12 (1.25 Pitch / Class 10.9)
  • Stud Head Diameter: Ø 19.80mm
  • Stud Recess Diameter: Ø 14.30mm
  • Length Under Head: 36mm
  • Overall Length: 41mm

Suitable for models :

• • R12: All models (Rear hubs with drum brake)
  • R17 TL: R1312 From #1 to 30470 (Rear hubs with drum brake)
  • R17 TL: R1322 From #1 to 2450 (Rear hubs with drum brake)
  • R16 TS: R1151 (Front hubs with disc brake and rear hubs with drum brake)
  • R16 L/TL: R1153 (Front hubs with disc brake)

• Hardness of the silentblock rubber: 75 Shores

Suitable for:

• R5 All models (2nd Version)

Seal dimensions:

• Inner diameter: Ø 22mm
• Outer diameter: Ø 33.3mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 25.8mm
• Push button diameter: Ø 21.5mm
