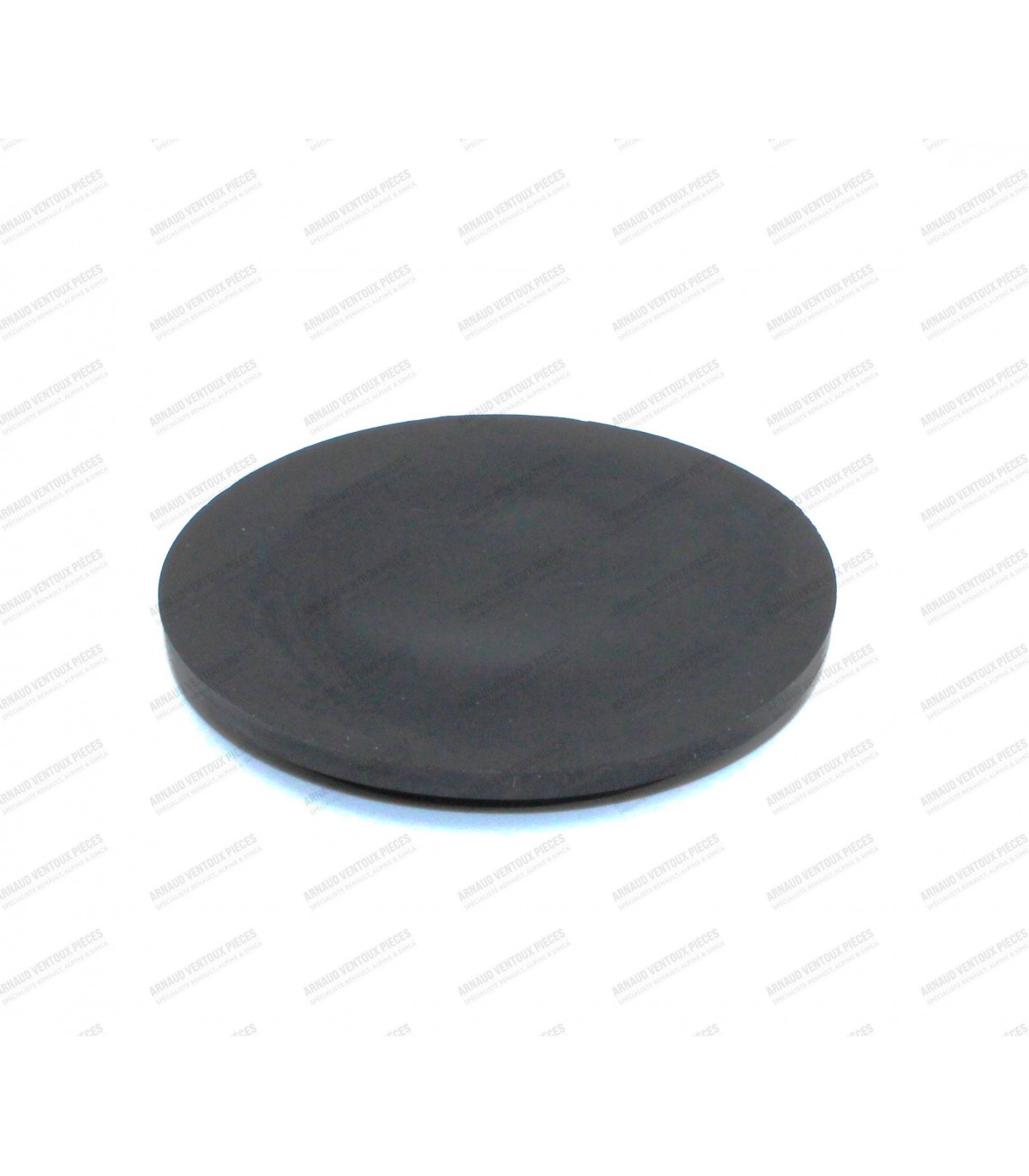

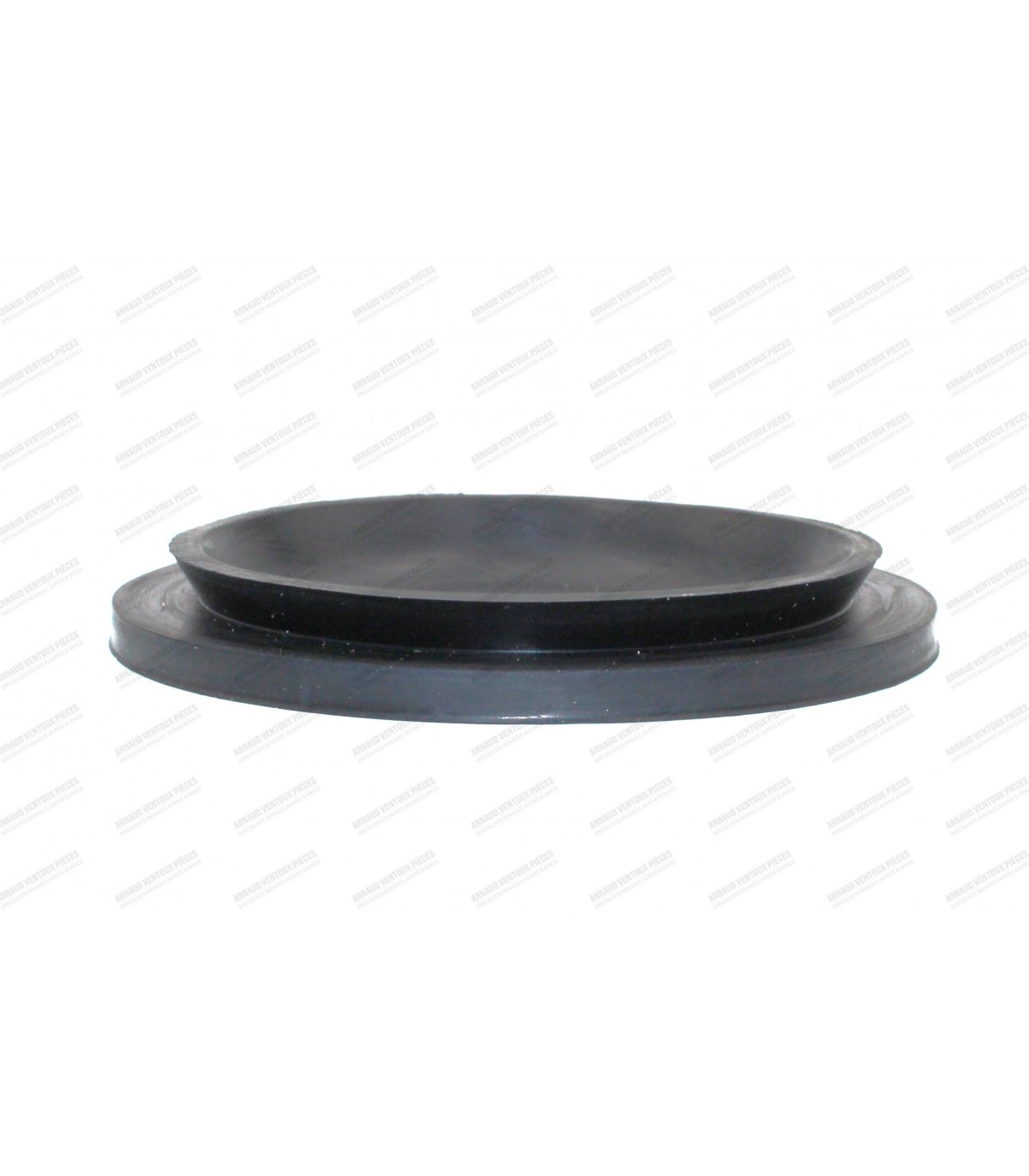

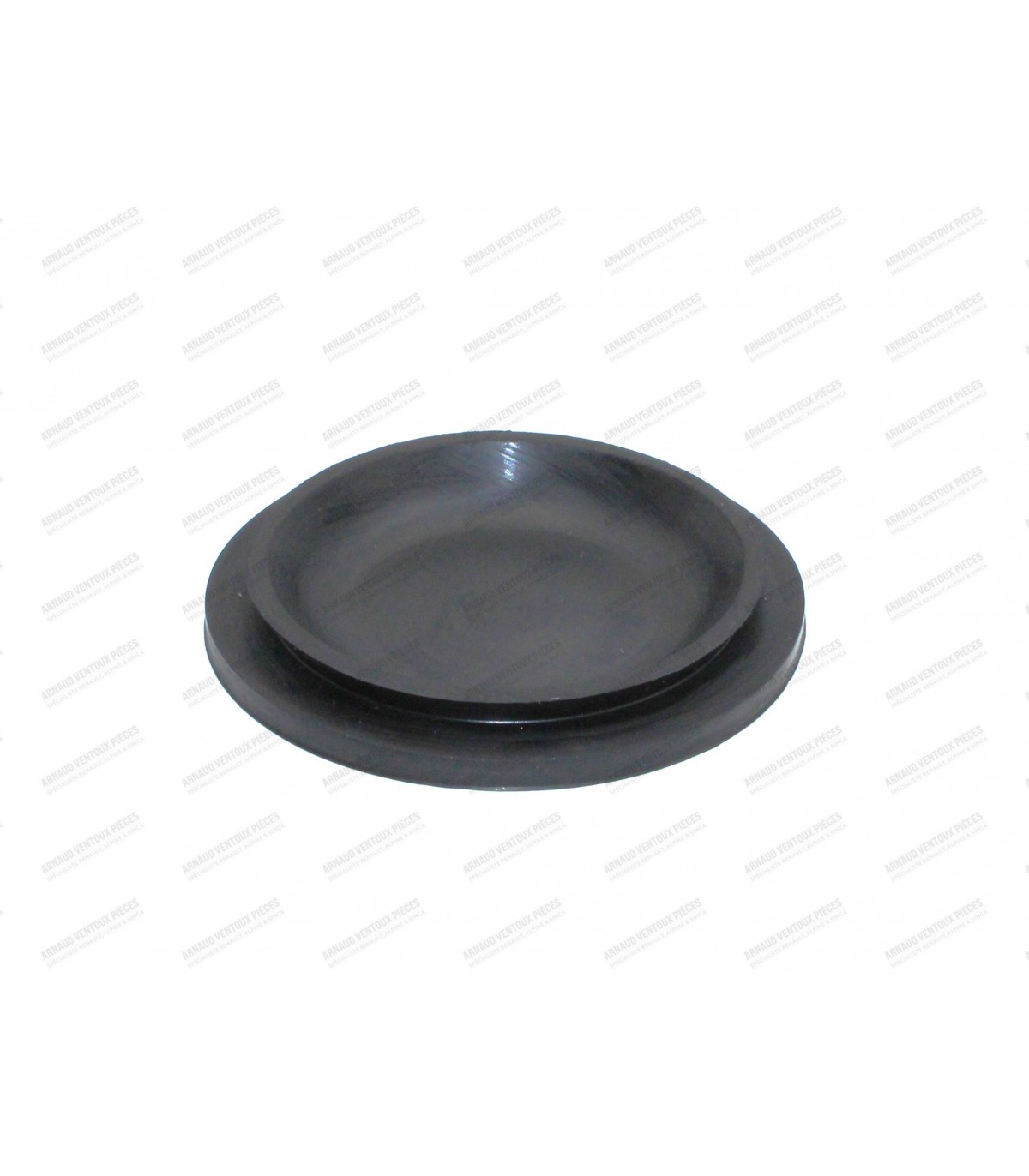

Round rubber cap for rear radiator and front boot bottom - Ref 6051676

• This ignition harness consists of4 spark plug wires and 1 coil wire.
• We would like to point out that our spark plug wires are made with Ø 7 mm silicone wires, black in color, with a standard copper core (wire material), which indicates that they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as Radios, tripmasters, monitors, or certain electronic ignition kits may cause interference or disruption.

The kits are supplied with the following components:

• Cylinder Heads (x4)
• Domed Pistons (x4)
• Rings (x12)
• Pin (x4)
• Circle Clips (x8)

Dimensions of the various parts:

• • Cylinder Head Bore Diameter: Ø 75.7mm
  • Cylinder Head Flange or Top Diameter (D): Ø 89.75mm
  • Cylinder Head Base Diameter (A): Ø 80mm
  • Overall height including skirts of cylinder liners (C): 128mm
  • Height from top of cylinder liner to base seal area (E): 94.80mm
  • Shaft dimensions: Ø 20x63.5mm (Cirlip-free mounting)
  • Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: (arrow) drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Delivery in France only
• Complete treatment designed to restore the interior of your fuel tank.
• For tanks with a capacity of 25 to 40 liters.
