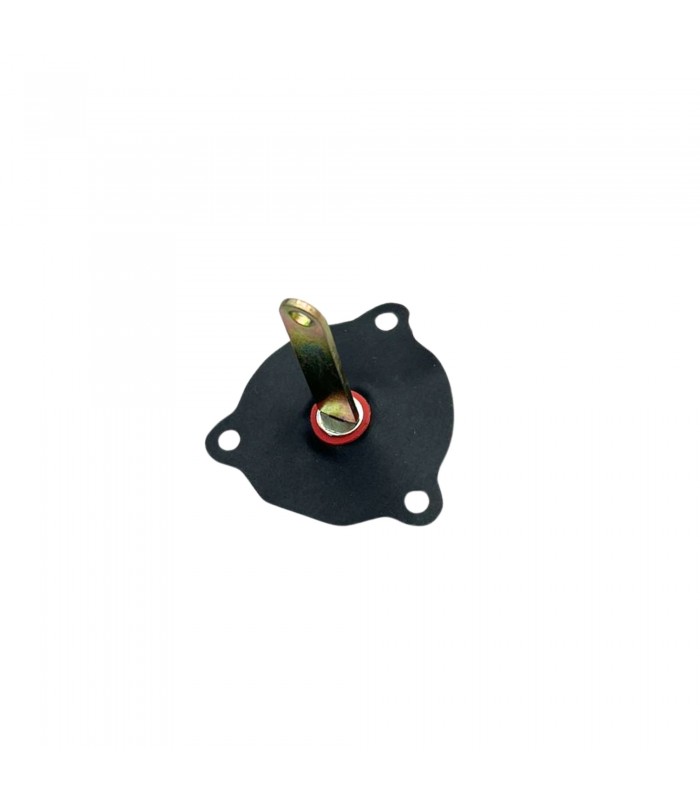

Return pump diaphragm (Large models) - Weber 32 DIR (Straight rod)

• Stem length: 37mm
• Membrane mounting hole spacing: 27mm
• Cup diameter 1: Ø 8.20 mm
• Cup diameter 2: Ø 10.20 mm

• OE Renault Ref: 7700611453 / 7701348715

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.

Compatible for any Ducellier igniter with an inside diameter of the body of 58.8mm

• Renault OE Ref: 7700502325 / 7700511457 / 7703087032 / 7703087087
