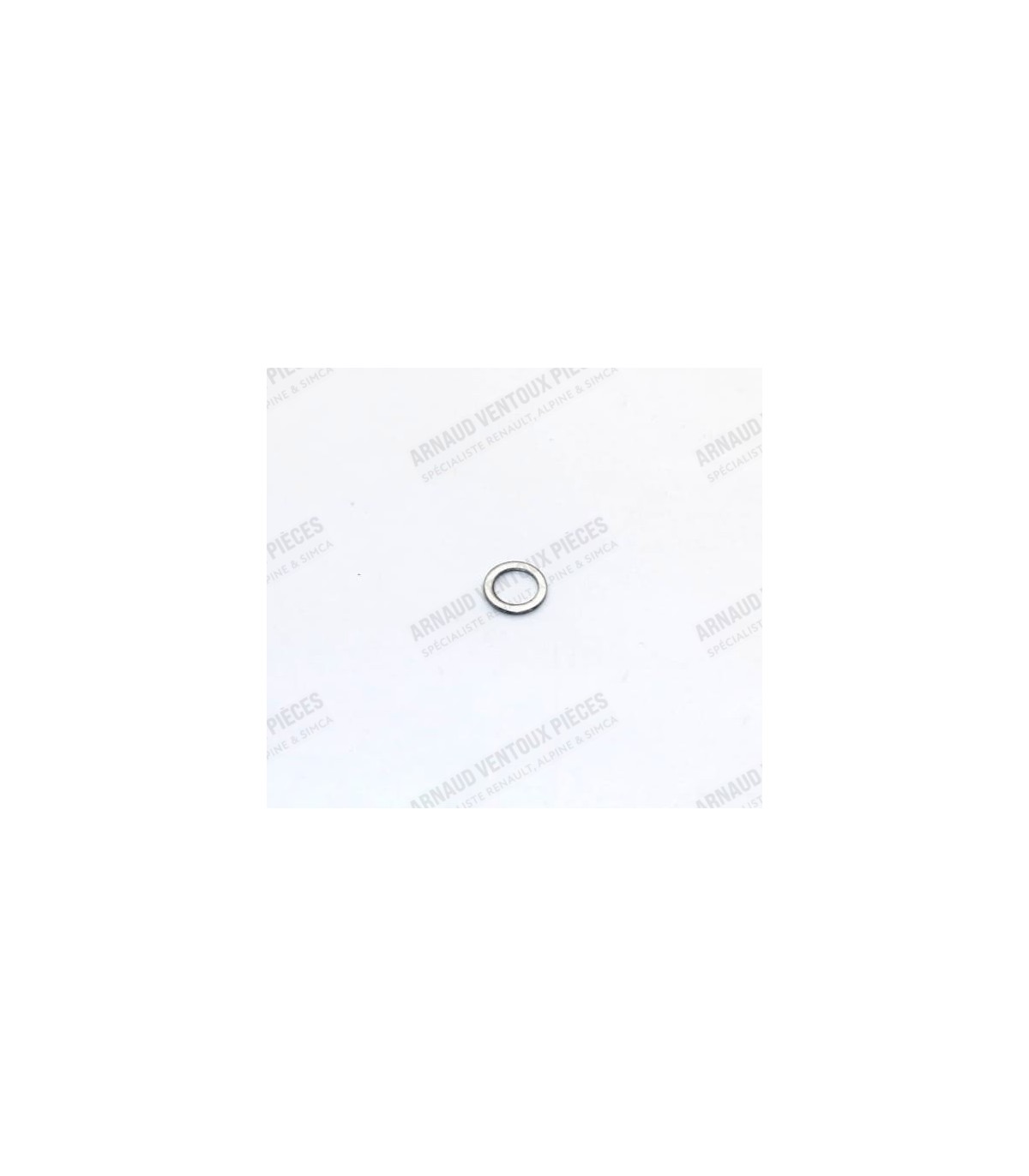

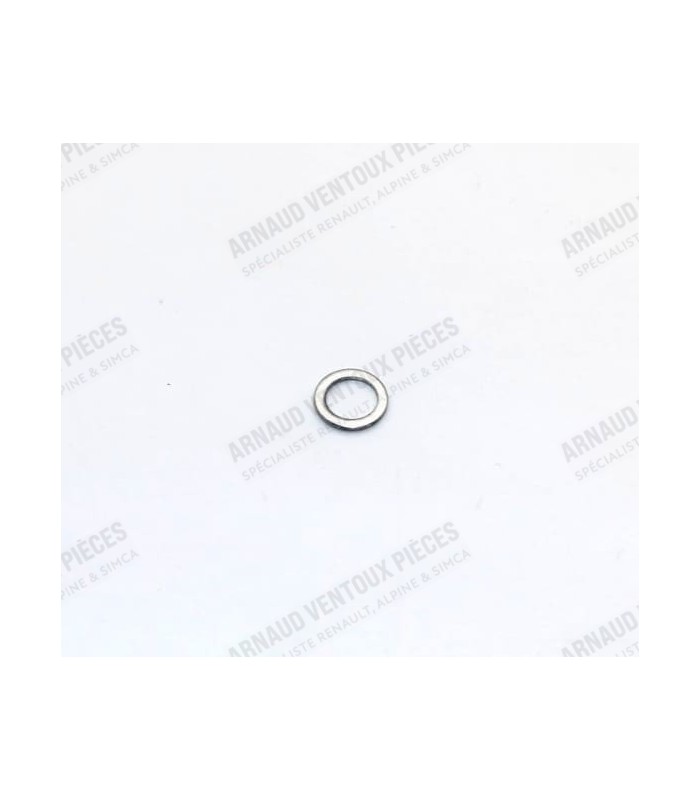

Accelerator pump jet gasket for WEBER DCOE 40 and DCOE 45 carburetor

• Air intake trumpet/trumpet for WEBER 40DCOE carburetor
• Protrusion length from the carburetor: 75mm
• ATTENTION: Must be mounted with venturi REF AVP 48084 or 48085
• Mounting with kit REF 48097
• Suitable for mounting AVP filters ref 48099, ref 48100, or ref 48103 (Note the space requirements in the engine compartment).
• Allows for use with the chassis of an R5 Alpine engine in the A110 small chassis with AVP intake manifold REF 4811

• This bracket attaches to the gearbox studs

• Suitable for WEBER 40DCOE and WEBER 45DCOE carburetors
• Location at the bottom of the tank
• Requires 1 piece per carburetor

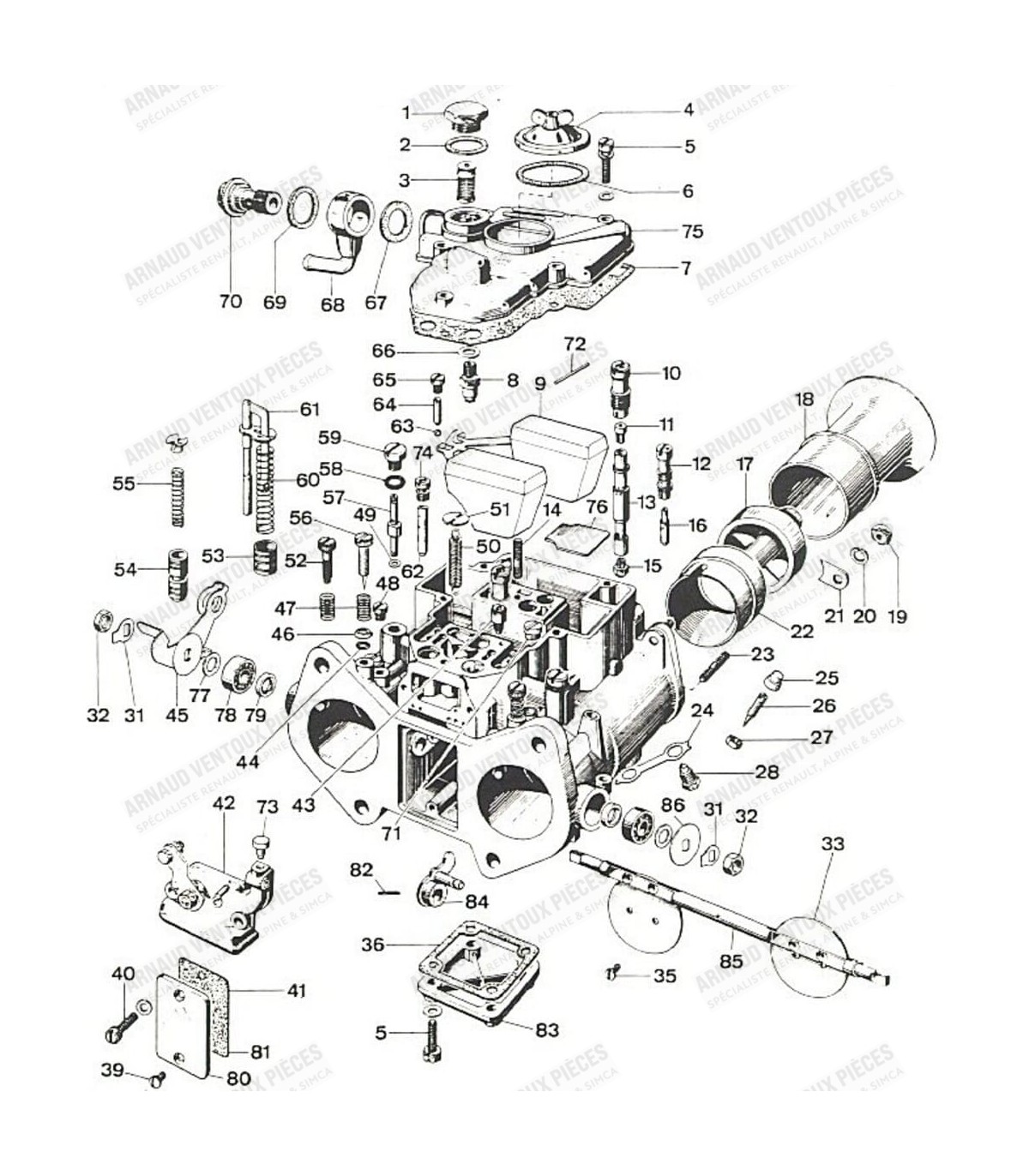

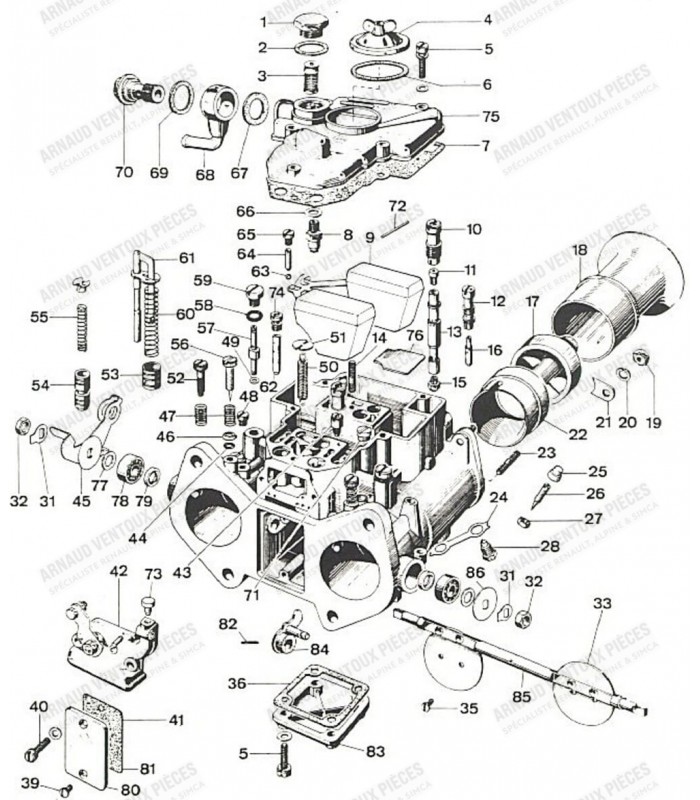

• Number 43 on exploded view
• Diameter: Ø6mm / M6x100

• Rubber boot made with a rubber compound designed to resist transmission oils and hydrocarbons
• Sold individually, without the metal ring and oil seal

• Suitable for carburettor WEBER 40DCOE / 45DCOE
• To ensure a perfect seal between the mixture screw and the carburettor body (do not forget the support cup)
• sold individually, need 2 pieces for a carburettor
• Number 44 on exploded view
• Compatible with other WEBER carburettors, see below

Flexor Specifications:

• • Mounting hole spacing:4 x 50.50 mm
  • Mounting hole diameter: Ø 8.4 mm
  • Center hole diameter:Ø 10.50 mm
  • Flexor thickness: 11 mm
  • Material:Rubber flexor with metal reinforcement
  • Supplied with 4 x M8 x 20 mm screws and 4 x nylock nuts

For some assemblies with a center screw, replacing this screw with a socket head cap screw (SHCS) or modifying the flexor may be necessary.
