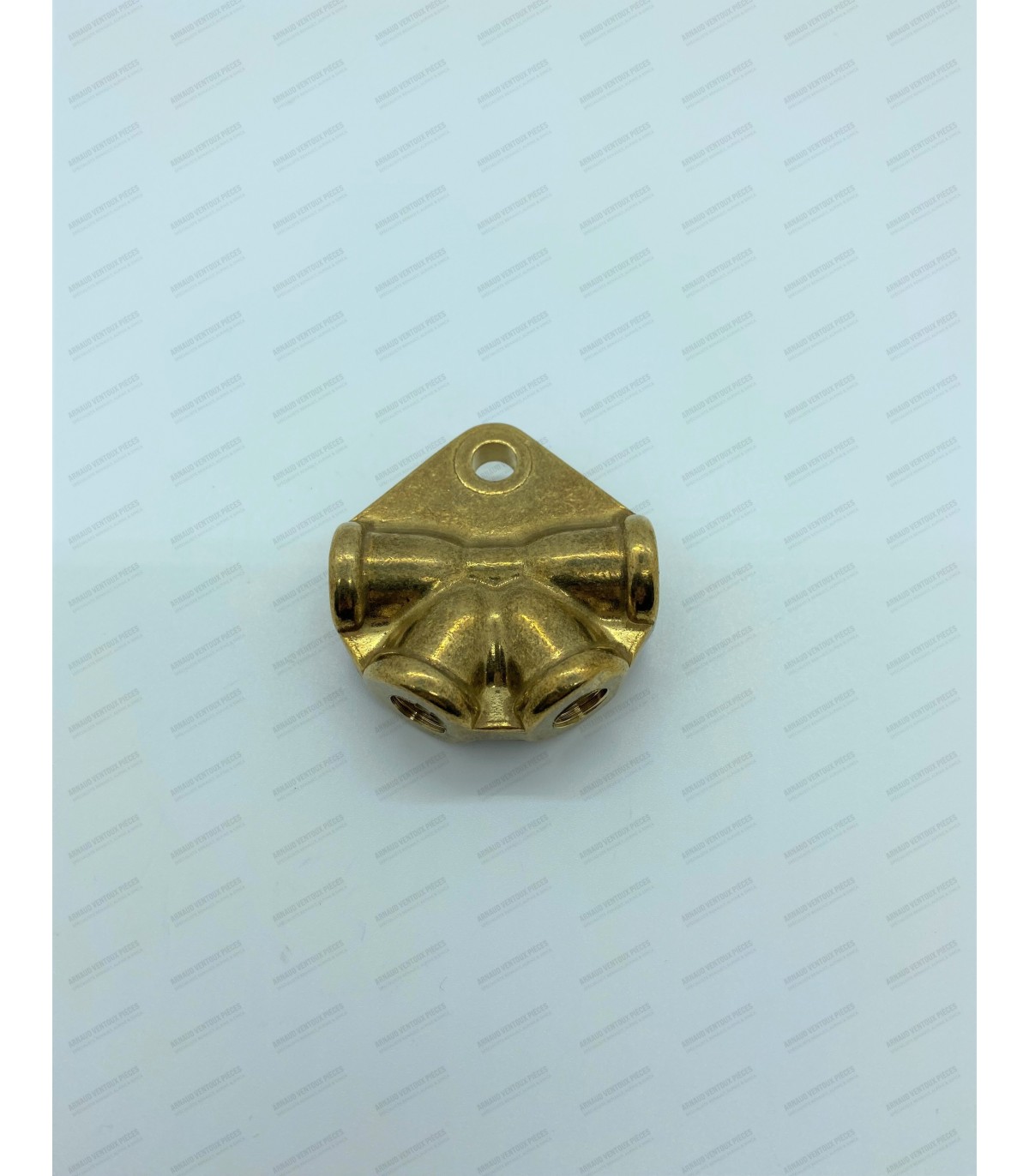

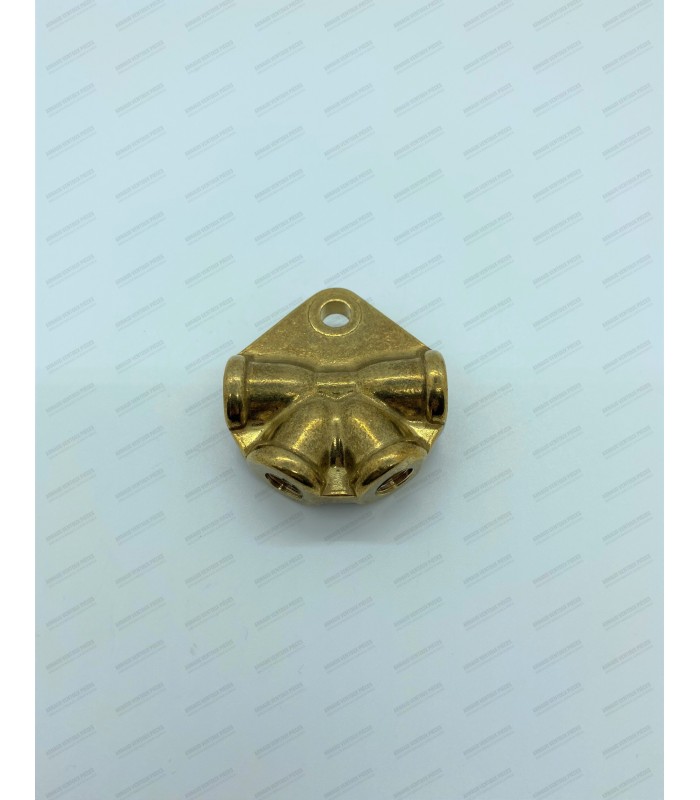

Front Brake Pipe Connector (4 Way) - R8G

• Connection thread: outgoing cone
• Fixing distance: 25mm

• Connection thread: outgoing cone
• Fixing distance: 25mm

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.

• • Overall length: 256.5 cm
  • Sheath length: 194.5 cm
  • Cable length: 245.5 cm

Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.

Sold complete with teat (inside Ø 6mm), insert, support and cap.

• This hose kit can be fitted to both front (Ø 48mm) and rear (Ø 48mm) calipers with a hydraulic handbrake, provided the banjo bolts on the rear brake fittings are replaced with two Ø 3/8"-24UNF bolts (Length under head 25mm).
• The kit comes with two Ø 3/8"-24UNF banjo bolts (Ø 9.52mm) and two Ø 10x125 banjo bolts.

Suitable for vehicles:

• 4CV / Juvaquatre: Type 662 Engine (From June 1956)
• Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
• R4: Billancourt Type 800-02/05 Engine (From 1962)

Bearing dimensions:

• Dimension: Repair dimension (+0.25)
• Crankpin diameter (A): Ø 37.75mm
• Housing Diameter (B): Ø 41.14mm
• Bearing Width (C): 21.18mm
• Bearing Thickness (D): 1.69mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal
