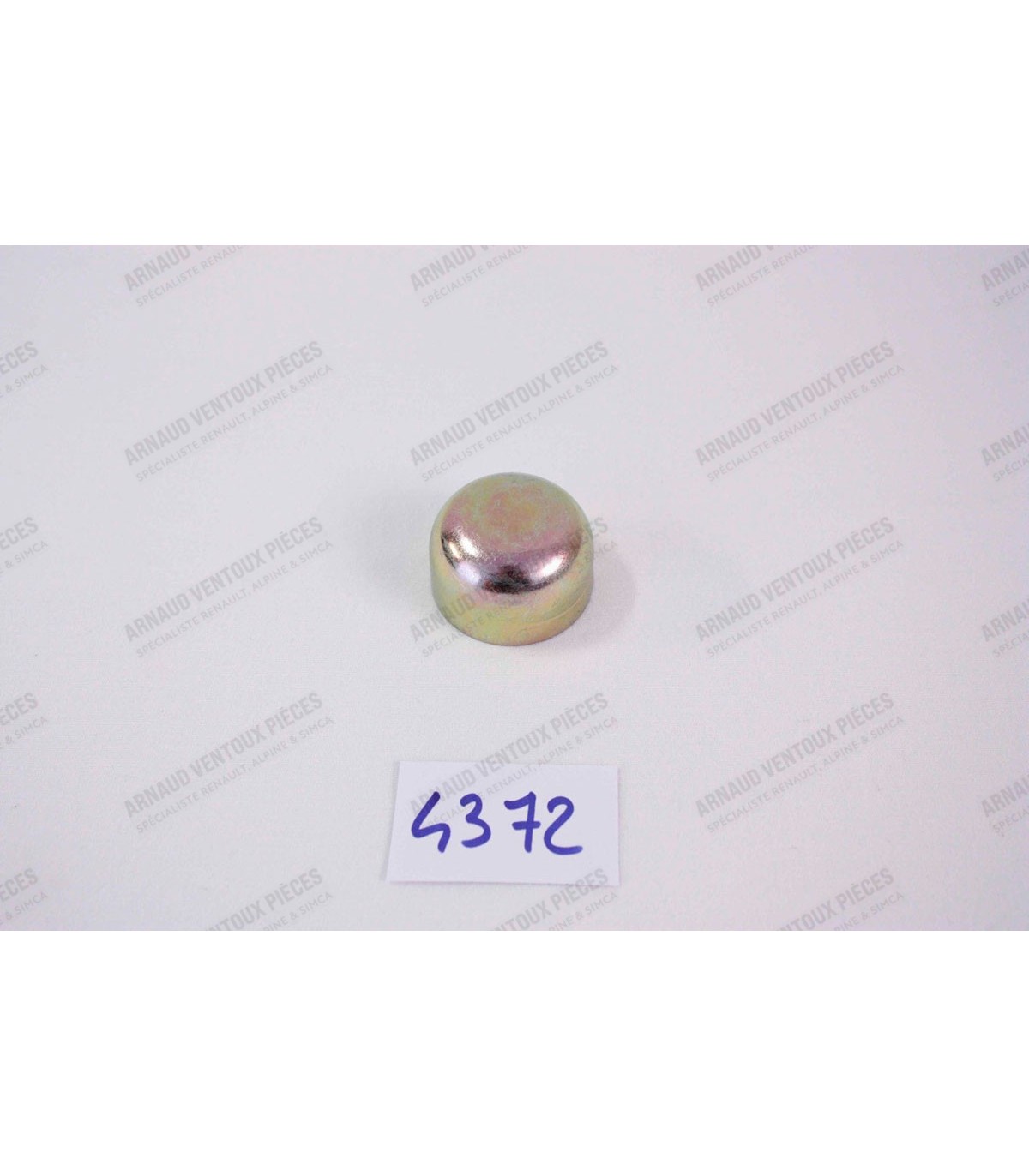

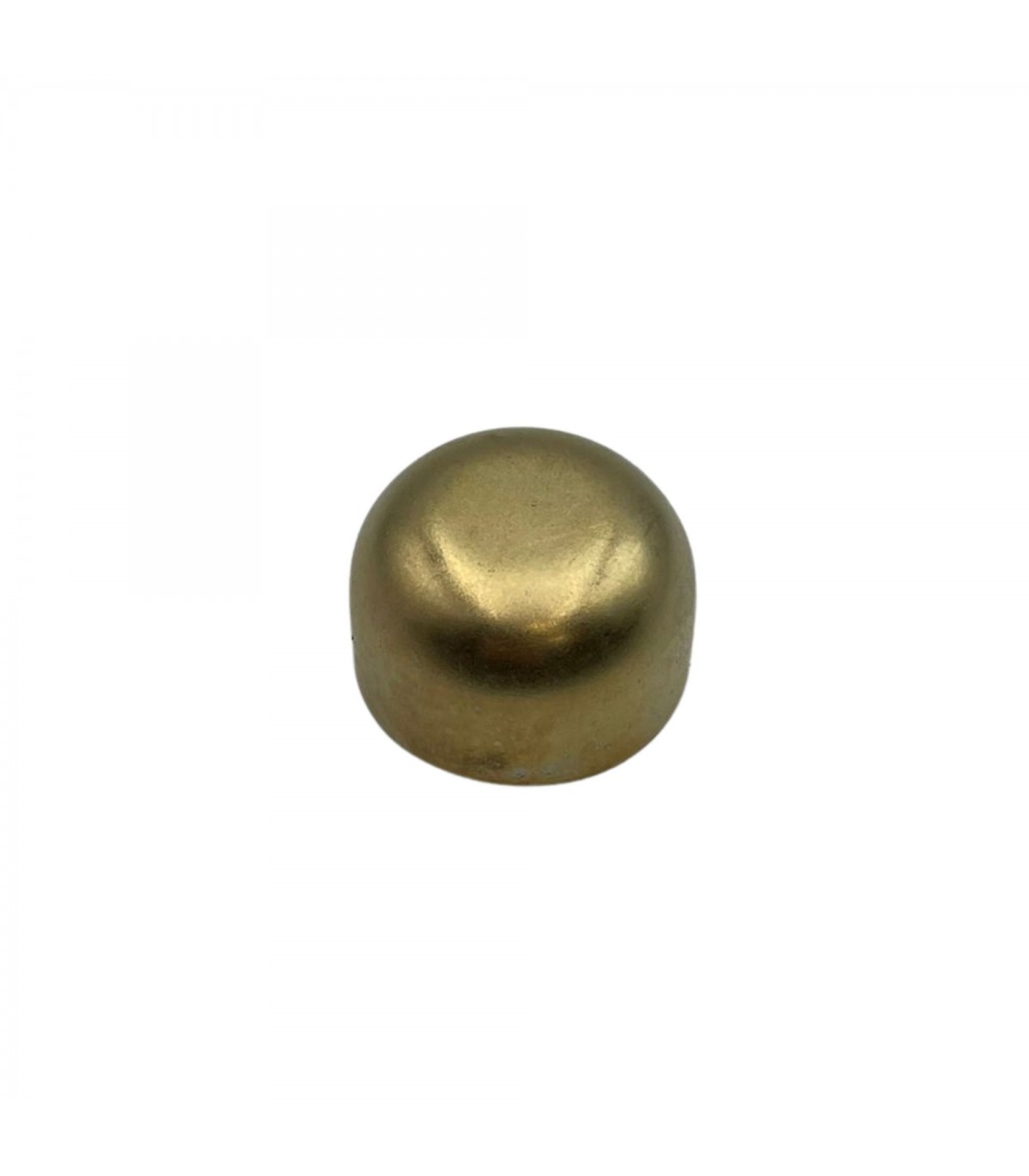

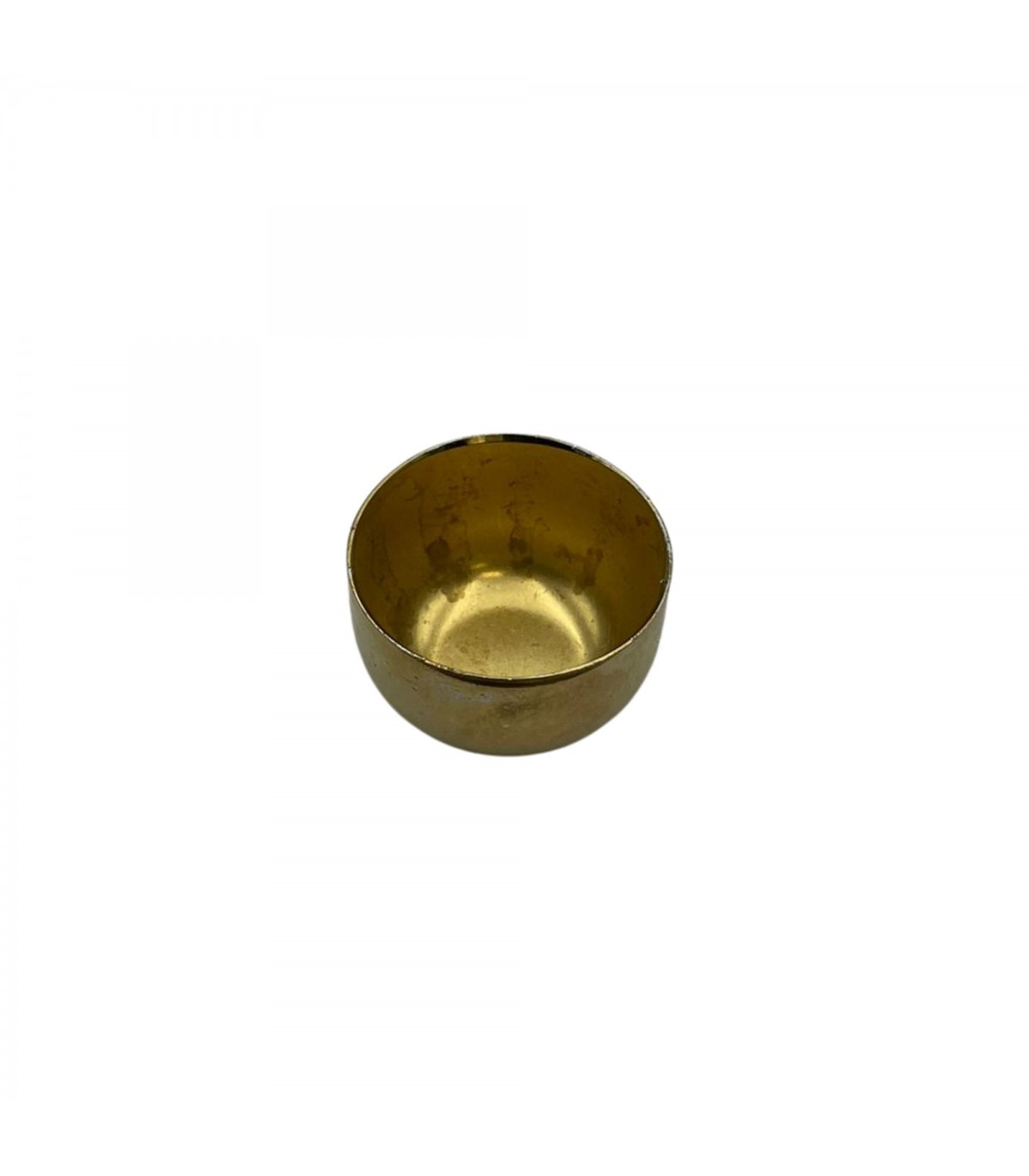

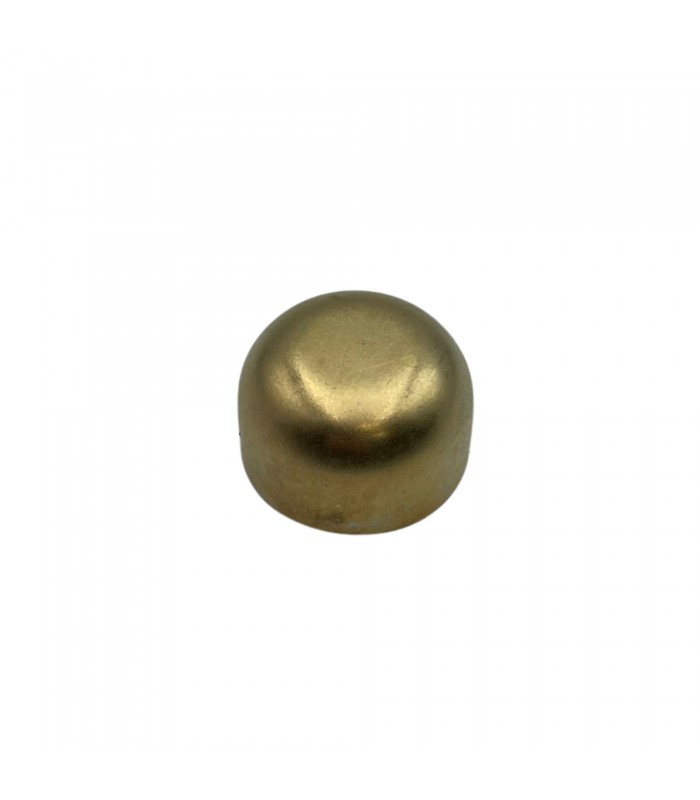

Front hub cap (Ø 40x42x26.5mm) - Ref 0607035200 / 0605443400

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).

Stud Dimensions:

• • Stud Thread: M12 (1.25 Pitch / Class 10.9)
  • Stud Head Diameter: Ø 19.80mm
  • Stud Recess Diameter: Ø 14.30mm
  • Length Under Head: 36mm
  • Overall Length: 41mm

Suitable for models :

• • R12: All models (Rear hubs with drum brake)
  • R17 TL: R1312 From #1 to 30470 (Rear hubs with drum brake)
  • R17 TL: R1322 From #1 to 2450 (Rear hubs with drum brake)
  • R16 TS: R1151 (Front hubs with disc brake and rear hubs with drum brake)
  • R16 L/TL: R1153 (Front hubs with disc brake)

For front bonnet windscreen bay seal ref. 4923

For seal under front bonnet ref. 4924

Nut Dimensions:

• Nut Thread: 1/2"-20UNF (+/- 12.5mm)
• Inner Diameter: 6.50mm

• Allows you to replace the choke cover with a simple WEBER choke cover for a 40DCOE or 45DCOE carburetor.
• Suitable for carburetors: 40 DCOE, 45 DCOE, 40 IDF, 44 IDF, 48 IDF.
