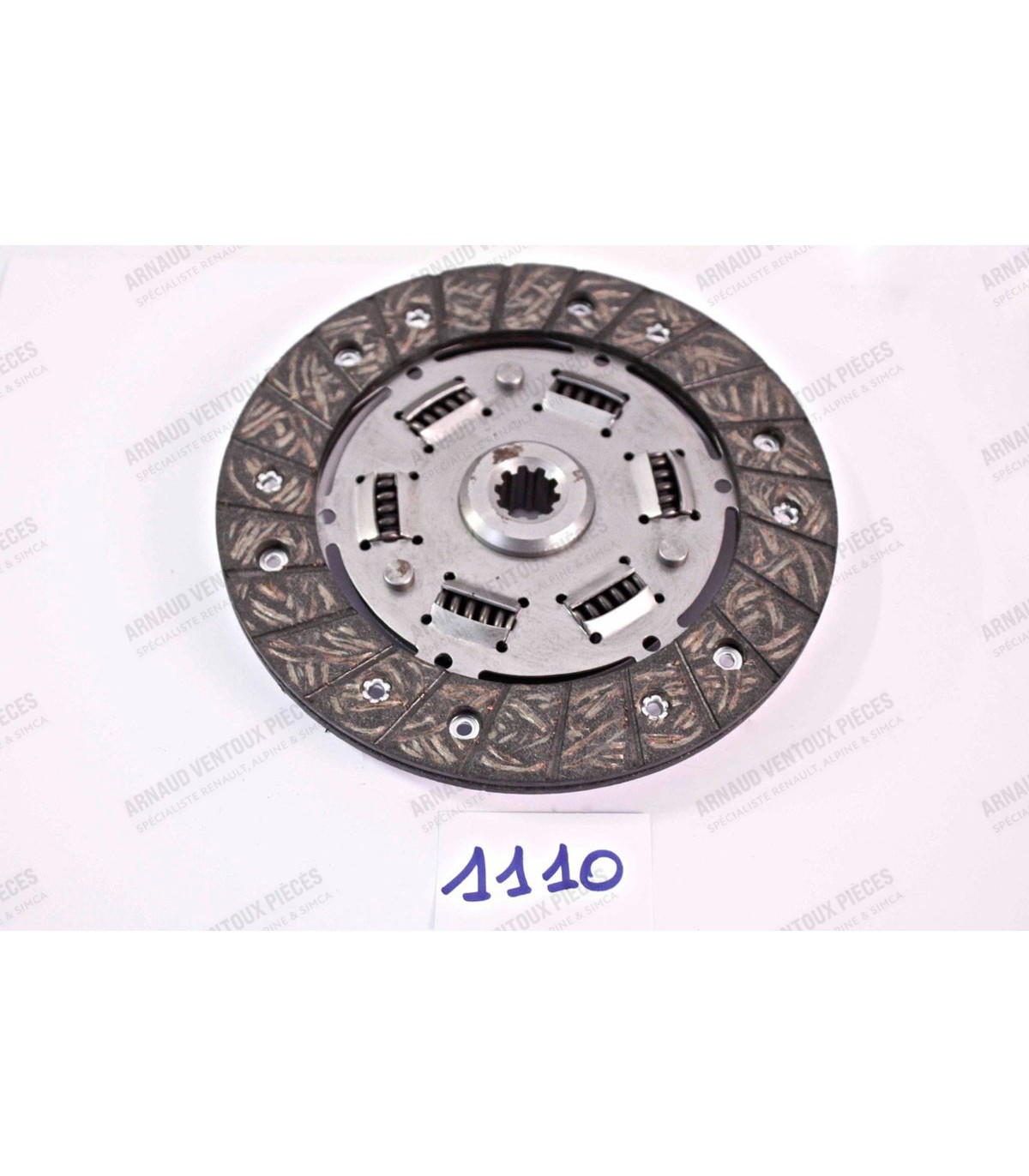

Clutch disc - 10 splines Ø 160mm

Convient pour les boites de vitesse type : 289 / 314 /316 / 318 /325

• Mounting center distance: 44.5mm
• Thickness: 5mm

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum

• Renault OE Ref: 85295330 / 0857734900

Suitable for:

• R8 (R1130 / R1132): Solex 32 DISTA / DITA
• Caravelle: Solex 32 DISTA / DITA

Please note, several versions have been put on sale, it is important to check the compatibility with your vehicle.

• Ref OE Renault: 8212132 / 8213280 / 8213902 / 8213270 / 8214060

Suitable for:

• 4CV: Drum brake (From 06/1953 until end of series)
• Alpine A106: Drum brake
• Dauphine (All models): Disc brake
• Caravelle / Floride: Disc brake
• R10 / R8 (All models): Disc brake
• Alpine A110 and GT4: Disc brake
• Matradjet: Disc brake
