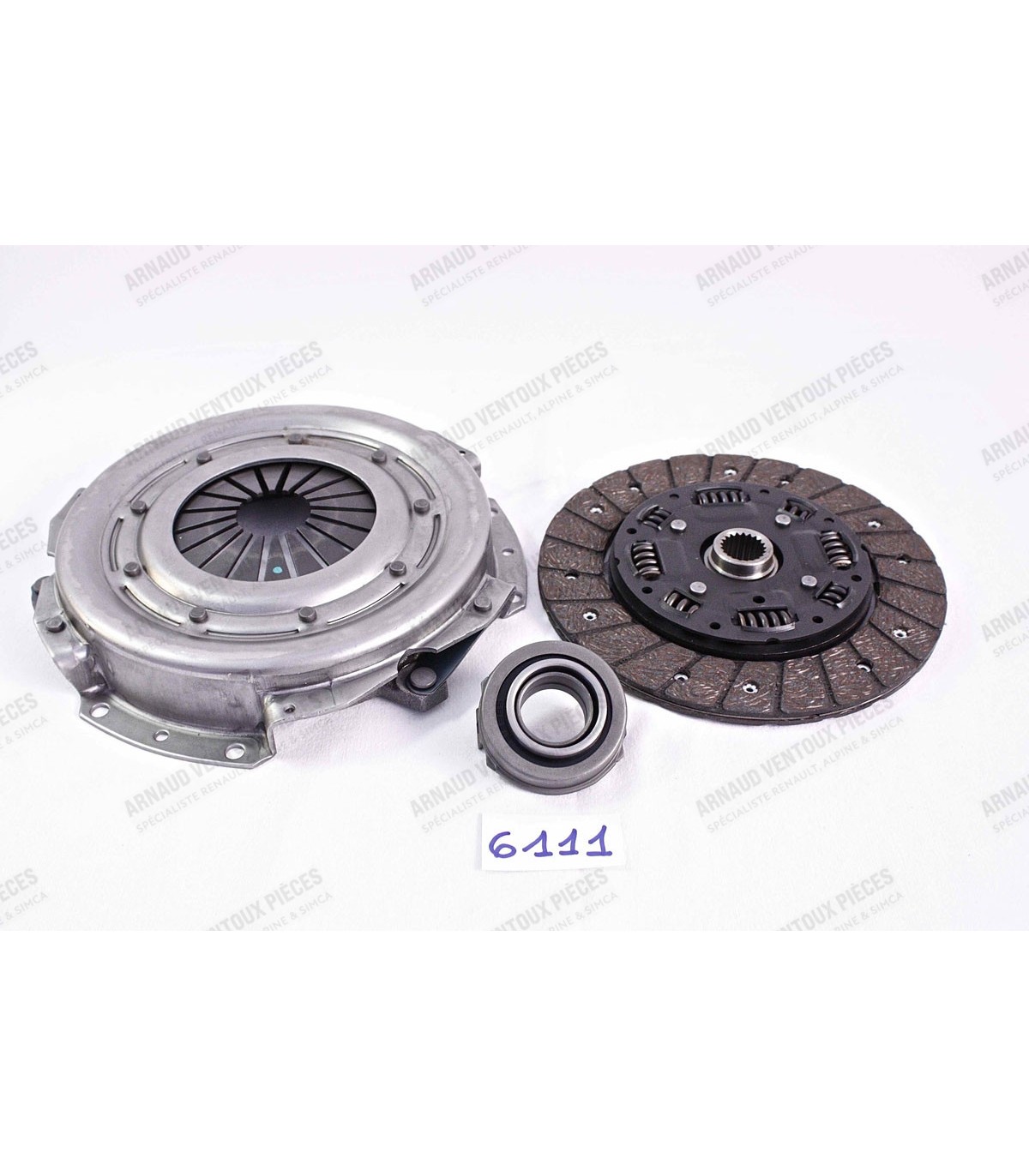

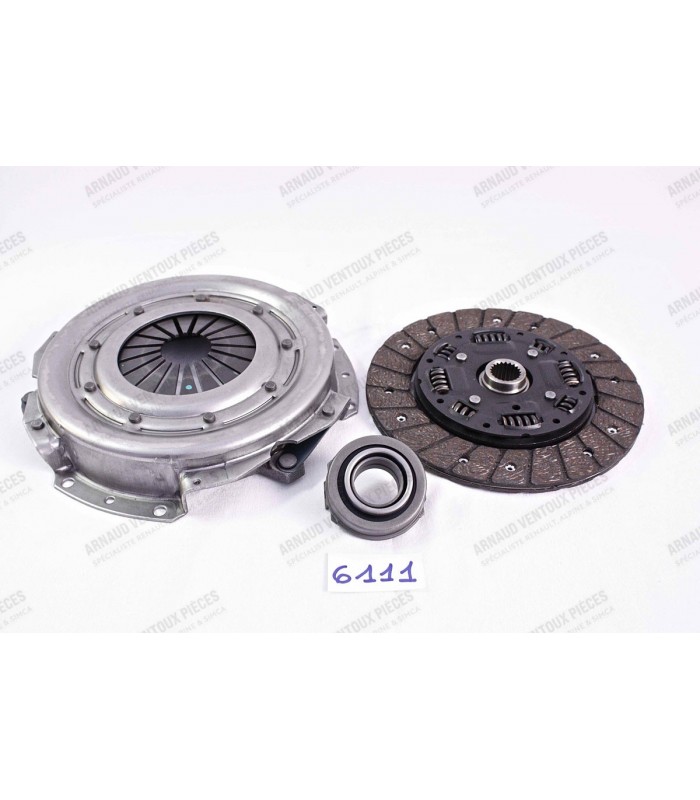

3-piece clutch kit (Disc, mechanism and thrust bearing) - Ø 215mm - Engine 1600cm³

• Delivery in France only
• Anti-corrosion paint for engine block, crankcase, brake drum, and gearbox.
• Resistant to 180°C
• Capacity: 500ml
• Color: RAL 9006 Aluminum Gray
• Applicable directly with a brush or spray gun by diluting the paint with thinner reference C024.

Suitable for:

• Box 352
• Box 365-00 / 365-02 / 365-05
• Box 365-10 / 365-14 / 365-20 / 365-24 /365-28 / 365-29 - 365-33
• Box 395

Bearing Dimensions:

• Dimension: Original (Standard) Dimension
• Crankpin Diameter (A): Ø 48.00mm
• Housing Diameter (B): Ø 51.60mm
• Bearing Width (C): 21.75mm
• Bearing Thickness (D): 1.77mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material :Bi-metal

• OE Renault Ref: 0855969000 / 0855893300 / 7703087062

TRW paste is used for the repair, assembly and conservation of hydraulic brake elements, particularly brake calipers which must be reassembled using special greases.

Compatible with all brake fluids for mounting the cups and anything that comes into contact with the brake fluid, master cylinder, wheel cylinder.

Synchro Characteristics:

• • Outer cone with angle (A):6°40'
  • The outer friction faces or sectors (x15) are different: x3 small and x2 large
  • Synchro with a lug on the face opposite the main lugs of the synchro (See diagram)
  • Renault OE Ref: 7700557051

Suitable for 2nd gear synchros for the following gearboxes:

• • • 330 Gearbox: 330- ...
    • Box 336: 336- ...
    • Box 352: 352-30 / 352-31 / 352-33 / ...
    • Box 353: 353- ...
    • Box 364: 364- ...
    • Box 365: 365-05 / 365-10 / 365-14 / 365-20 / 365-24 / 365-33 / ...
    • Box 385: 385-10 ...
    • Box 395: 395-02 / 395-03 ...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mix-ups.

The gearbox numbers on the identification plate are not the most reliable indicators for identification.

Suitable for the following gearbox:

- Gearbox 365-05 / 365-10 / 365-14 / 365-20 / 365-24 / 365-33
