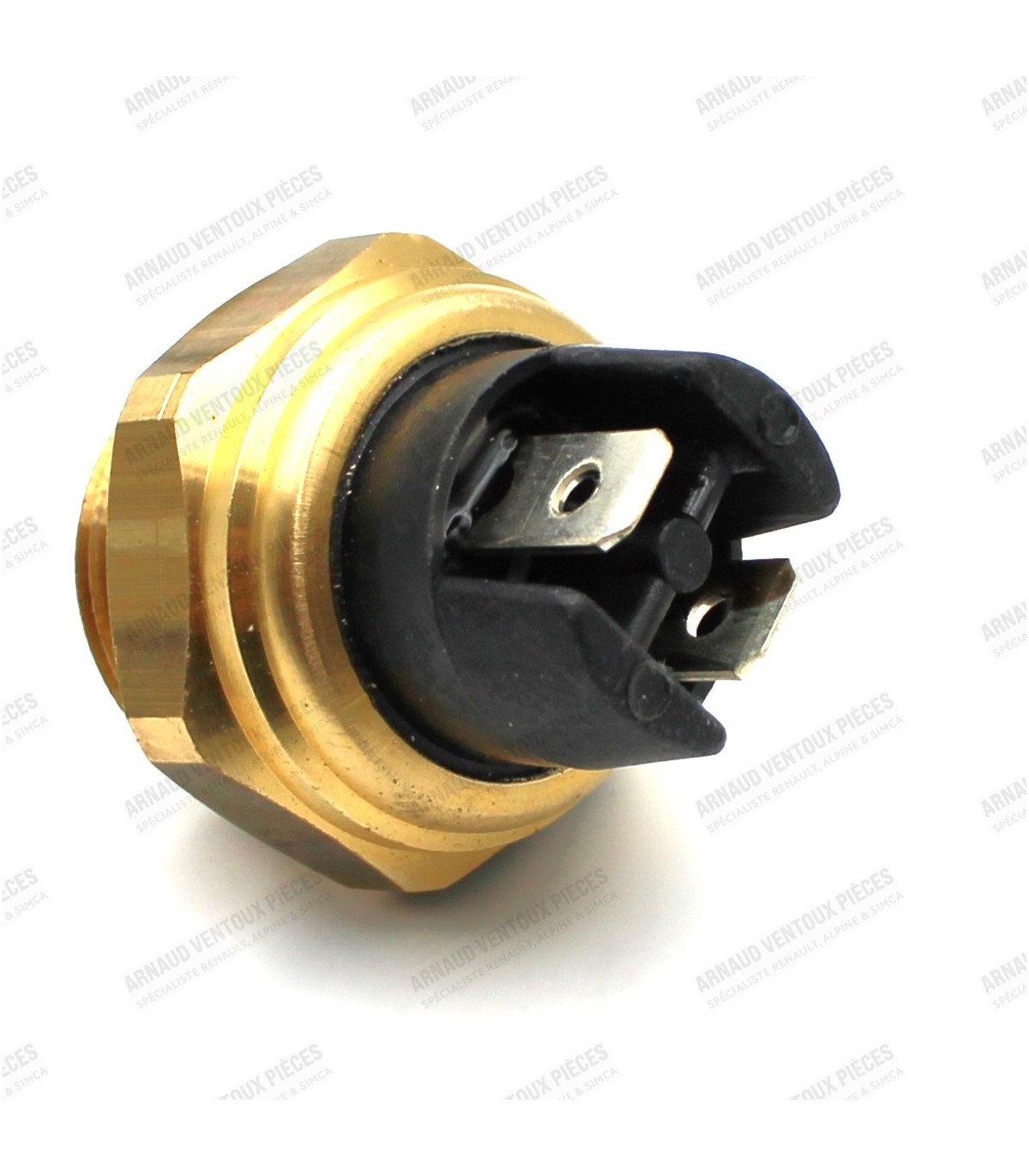

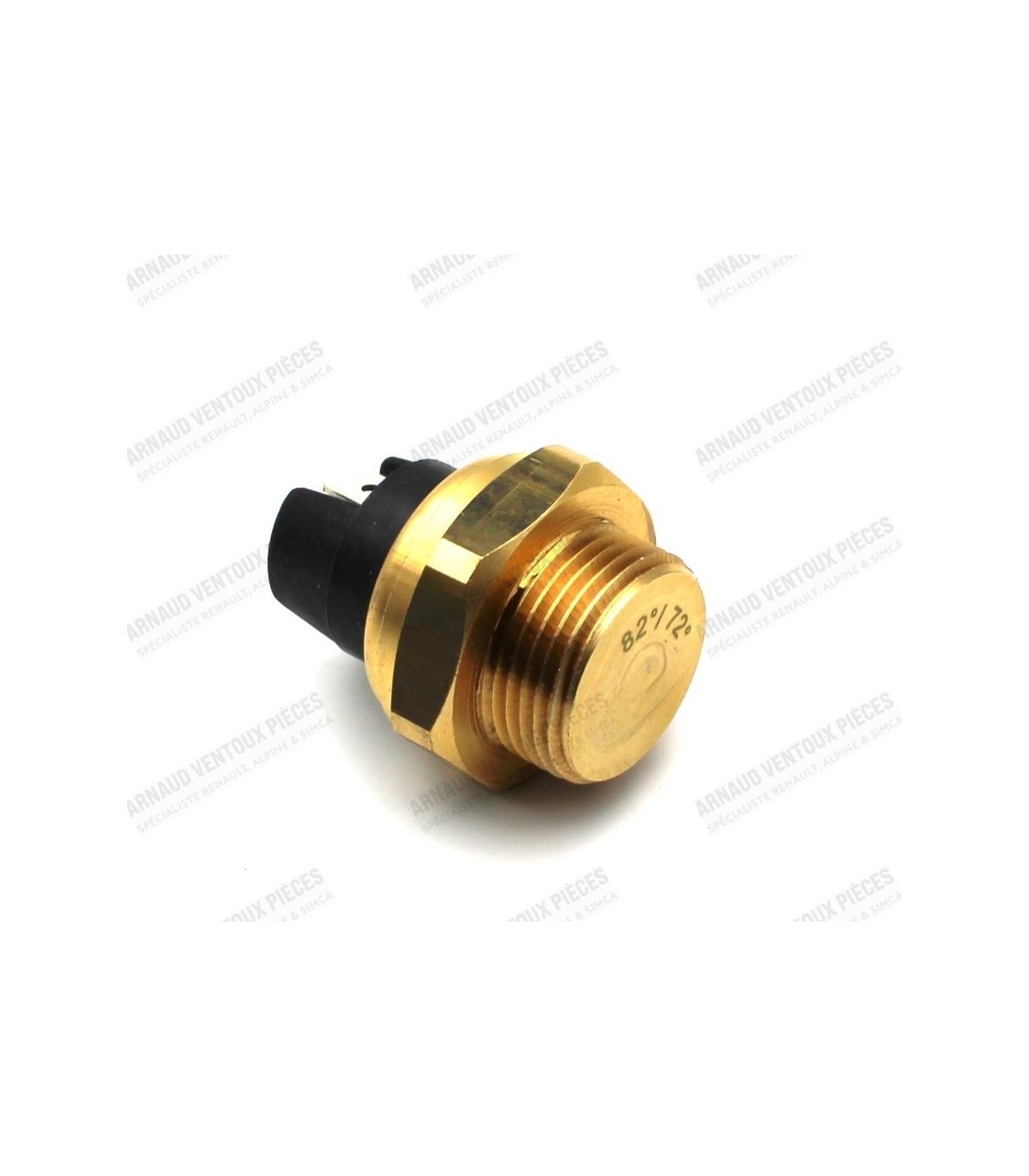

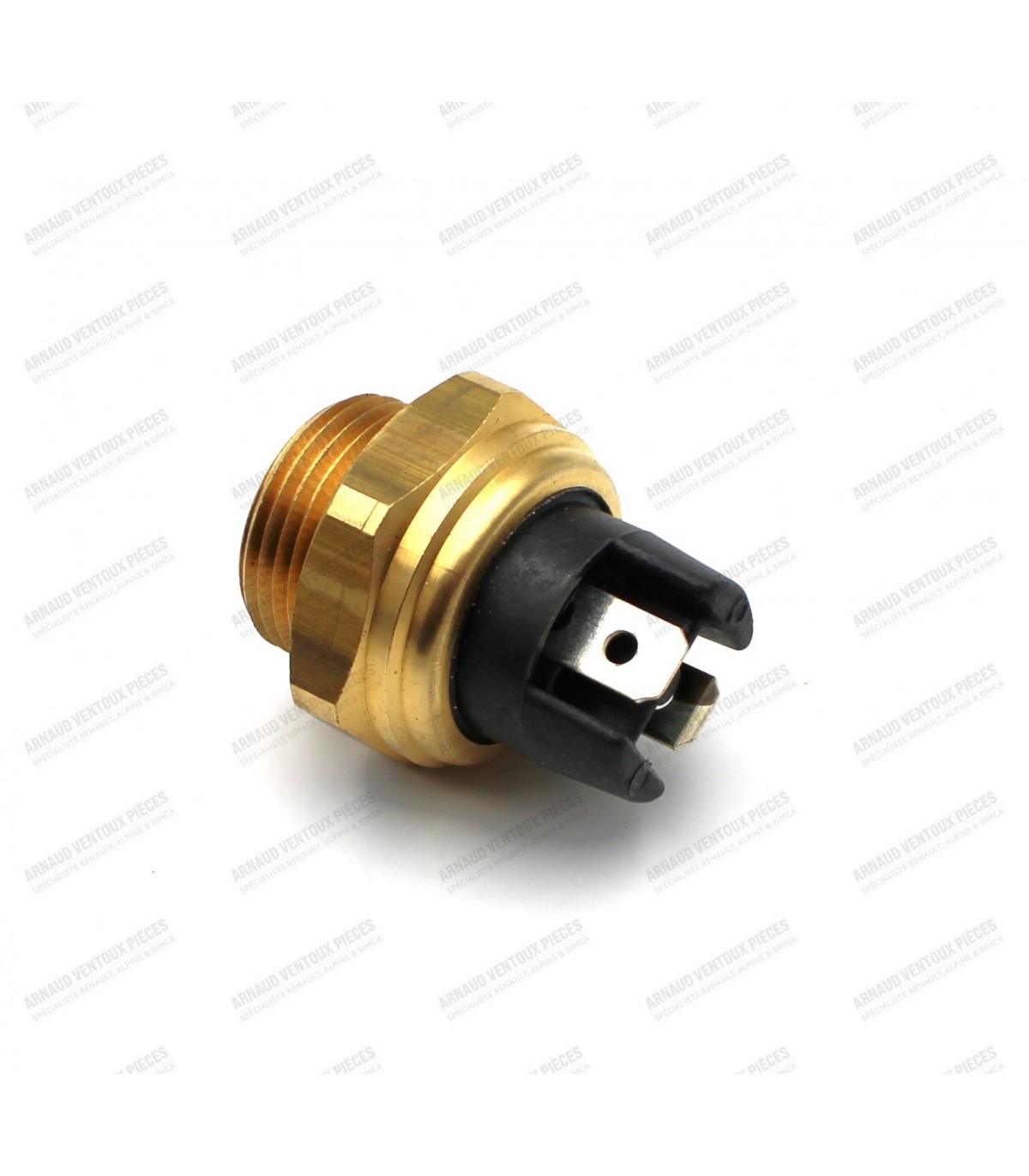

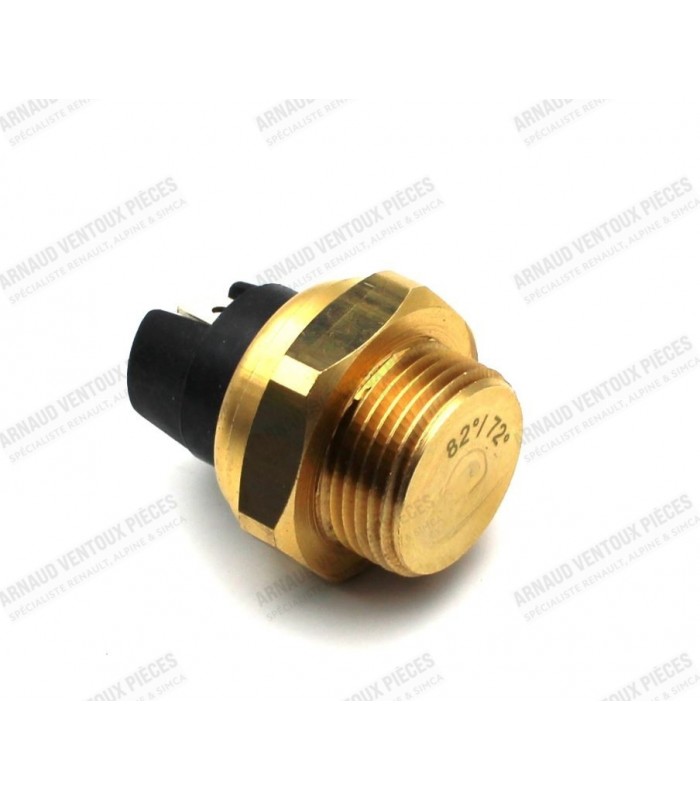

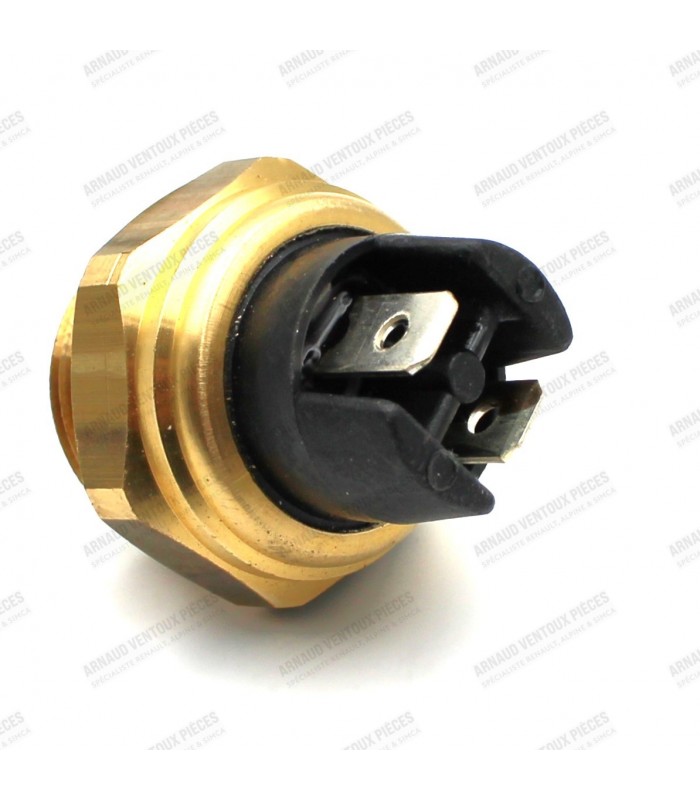

Thermo contact fan on radiator - 82°C / 72°C - Ø 22x150

• Need 3 AVP6815 gaskets and 1 AVP6816 gasket to equip one engine

Suitable for:

• A110.1600 VD and VH (SC / SI / SX)
• A310.4 (All models)
• A310 V6 (From number 1 to number 47709)

Segment Characteristics:

• Segment Diameter:Ø 76mm
• Thickness of Upper Segments (Fire-resistant): 1.75mm
• Thickness of Intermediate Segments  (Waterproof): 2mm
• Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Height 49mm (Extraflat)

• Renault OE ref: 7700703164
• OE Simca Ref: 22502Q

Bleeder screw specifications:

• Thread diameter: M7 - 1.00 pitch
• Overall length: 26.3 mm
• Length under head: 15.5 mm
• Thread length: 10 mm
• Wrench size: 8
• Sold individually

• Throat extension: 24mm
• Maximun pressure: 4.5 bar
• Maximun speed: 210km/h
• For rim drilling with a diameter of 11.3mm and a thickness of 1.8 to 4mm (For thicker rims, a metal valve is recommended)
