Sold individually, 16 pieces per engine (8 pieces per cylinder head) required
Screw dimensions:
- Thread: M12
- Screw pitch: 1.5 mm
- Length under head: 178 mm
- Screw head: Hexagonal
In stock

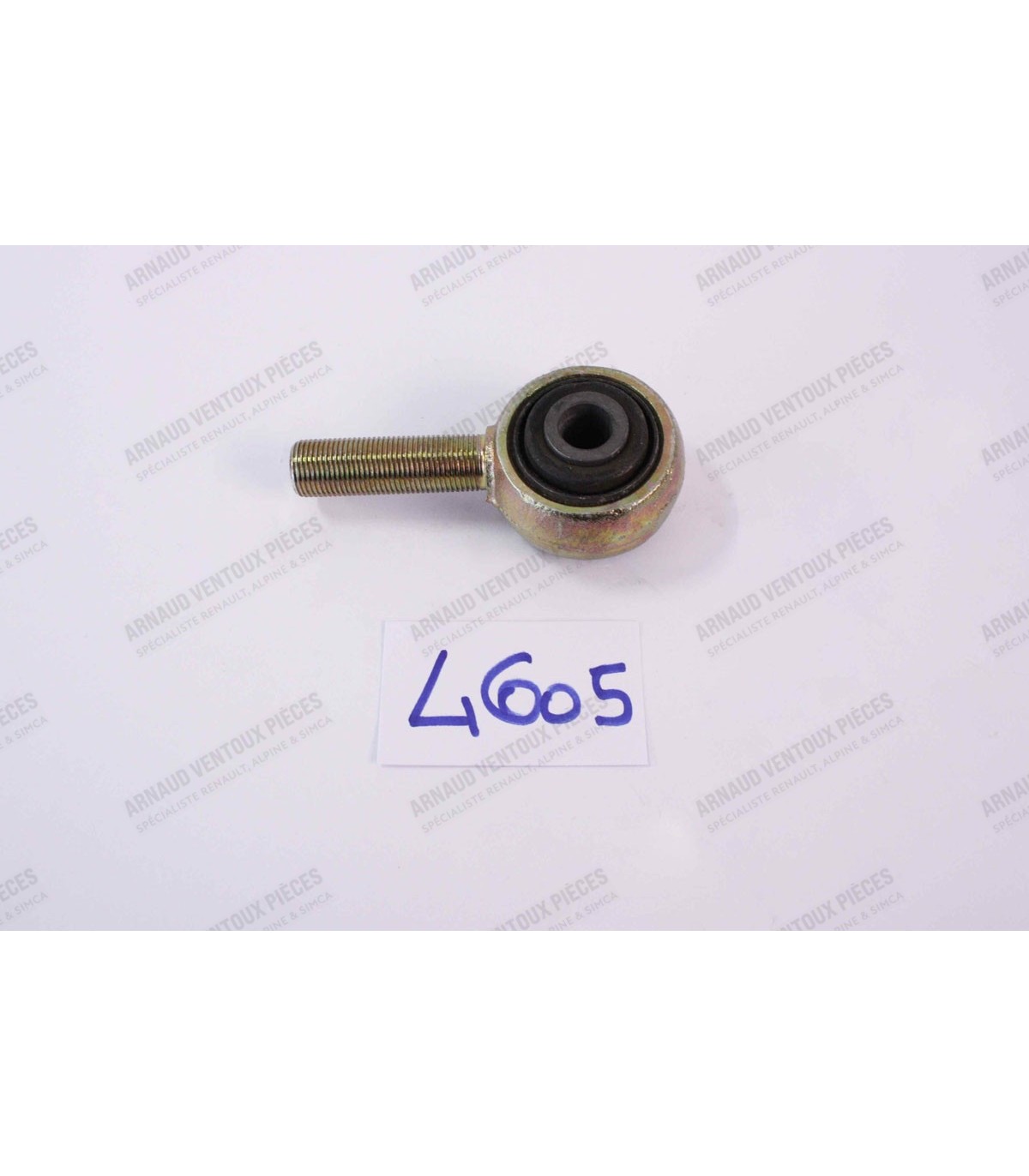

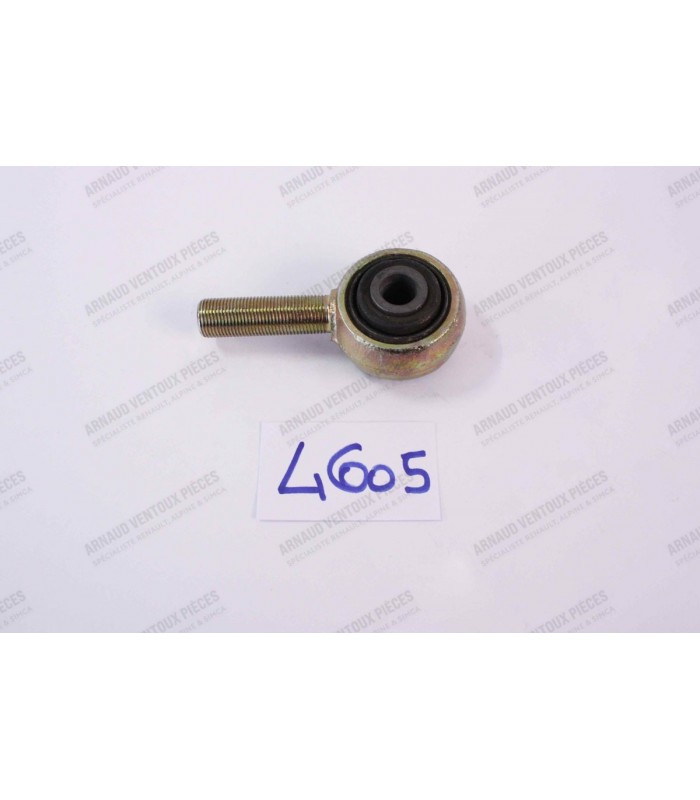

Rack and pinion output ball joint or tie rod end ball joint Rear - M12x100 (Right hand thread) - Ref 7700504987
Reference:
4605
Suitable for:
- Eye end cap of rack and pinion - Ref 0824373600 / 7700504987
- Front tie rod end cap or rear tie rod end cap - A110 - Ref 7700504987
- Exhaust hanger - A310 V6 - Ref 7700504987
Inner diameter of the eye: Ø 10mm
€16.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
In stock
The kits are supplied with the following components:
- Cylinder Heads (x4)
- Domed Pistons (x4)
- Rings (x12)
- Pin (x4)
- Circle Clips (x8)
Dimensions of the various parts:
-
- Cylinder Head Bore Diameter: Ø 75.7mm
- Cylinder Head Flange or Top Diameter (D): Ø 89.75mm
- Cylinder Head Base Diameter (A): Ø 80mm
- Overall height including skirts of cylinder liners (C): 128mm
- Height from top of cylinder liner to base seal area (E): 94.80mm
- Shaft dimensions: Ø 20x63.5mm (Cirlip-free mounting)
- Ring thickness: 1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction: (arrow) drawn perpendicular to the axis of the piston, figure on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values given by the manufacturer or in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
In stock
In stock
In stock
