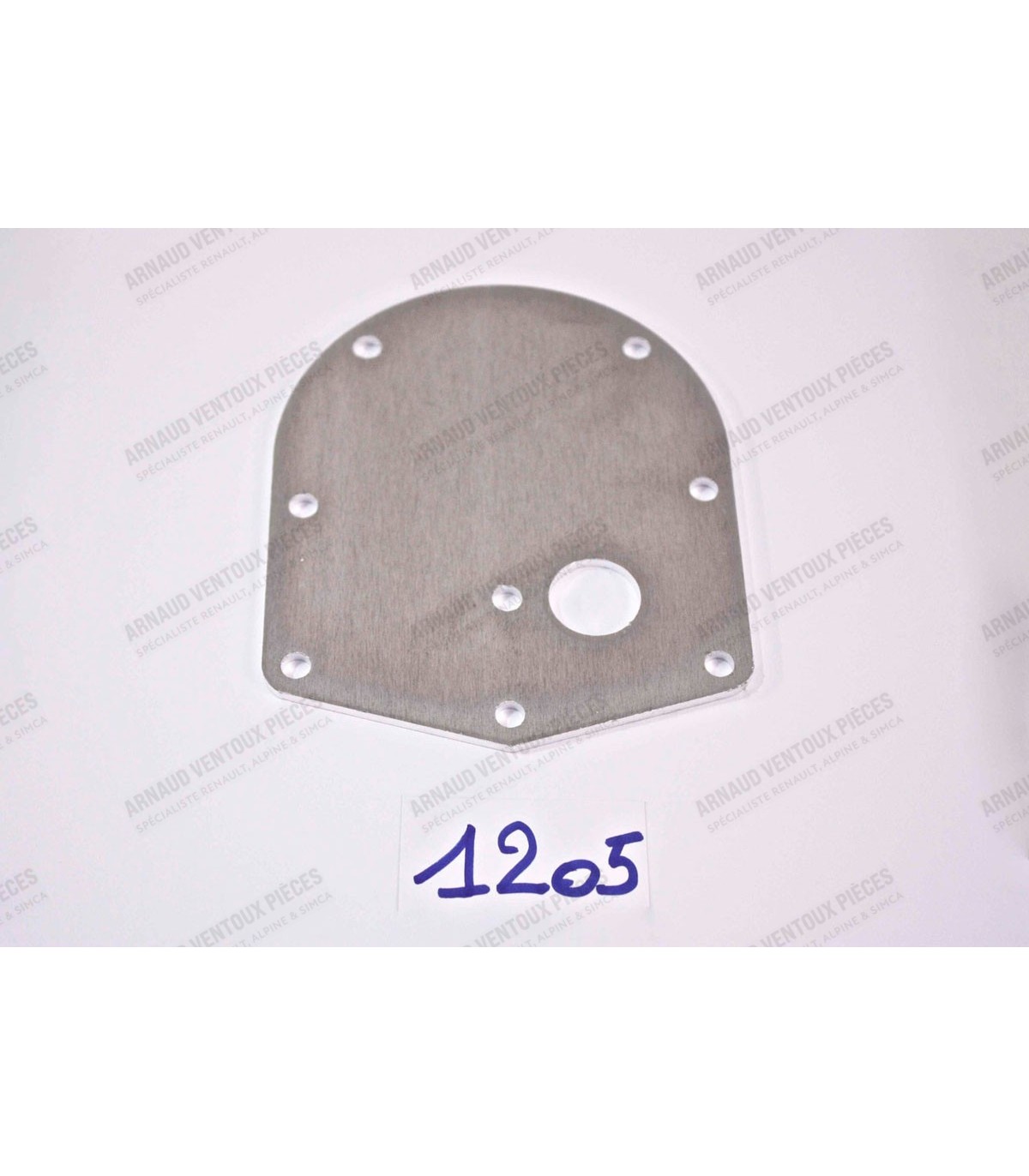

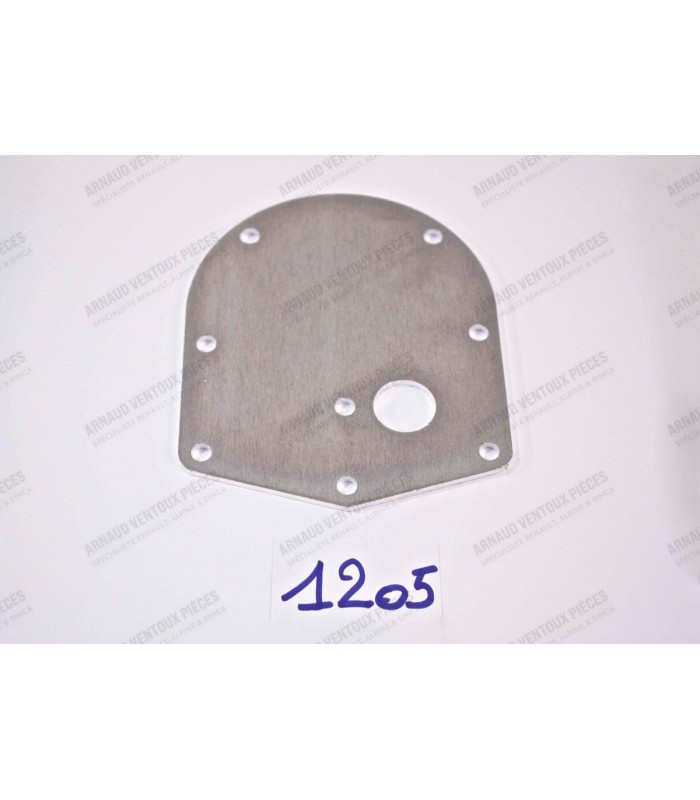

Water pump aluminum plate - 4CV

• Bandjo fixing screw: Ø3/8" - 24UNF (Ø 9.52mm)

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.

Suitable for vehicles:

• 4CV / Juvaquatre: Type 662 Engine (From June 1956)
• Dauphine / Dauphinoise / Estafette / Floride A106 / A108: Type 670 Engine
• R4: Billancourt Type 800-02/05 Engine (From 1962)

Bearing Dimensions:

• Dimensions: Original (Standard) Dimensions
• Crankpin Diameter (A): Ø 38.00mm
• Housing Diameter (B): Ø 41.14mm
• Bearing Width (C): 21.18mm
• Bearing Thickness (D): 1.57mm
• Smooth, lug-type bearings with no grease holes or grooves
• Bearing Material: Bimetal

Sold complete with teat (inside Ø 6mm), insert, support and cap.
