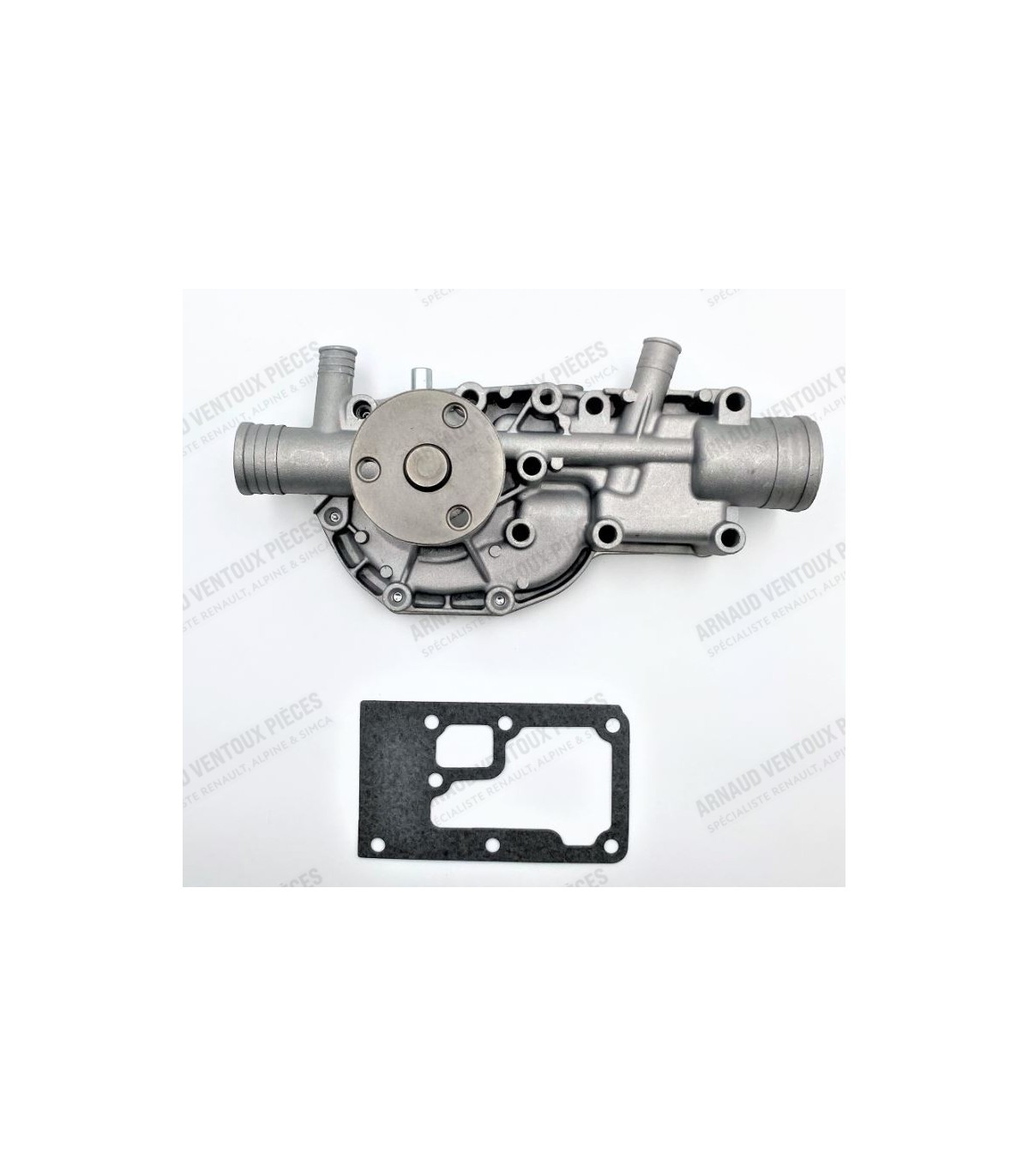

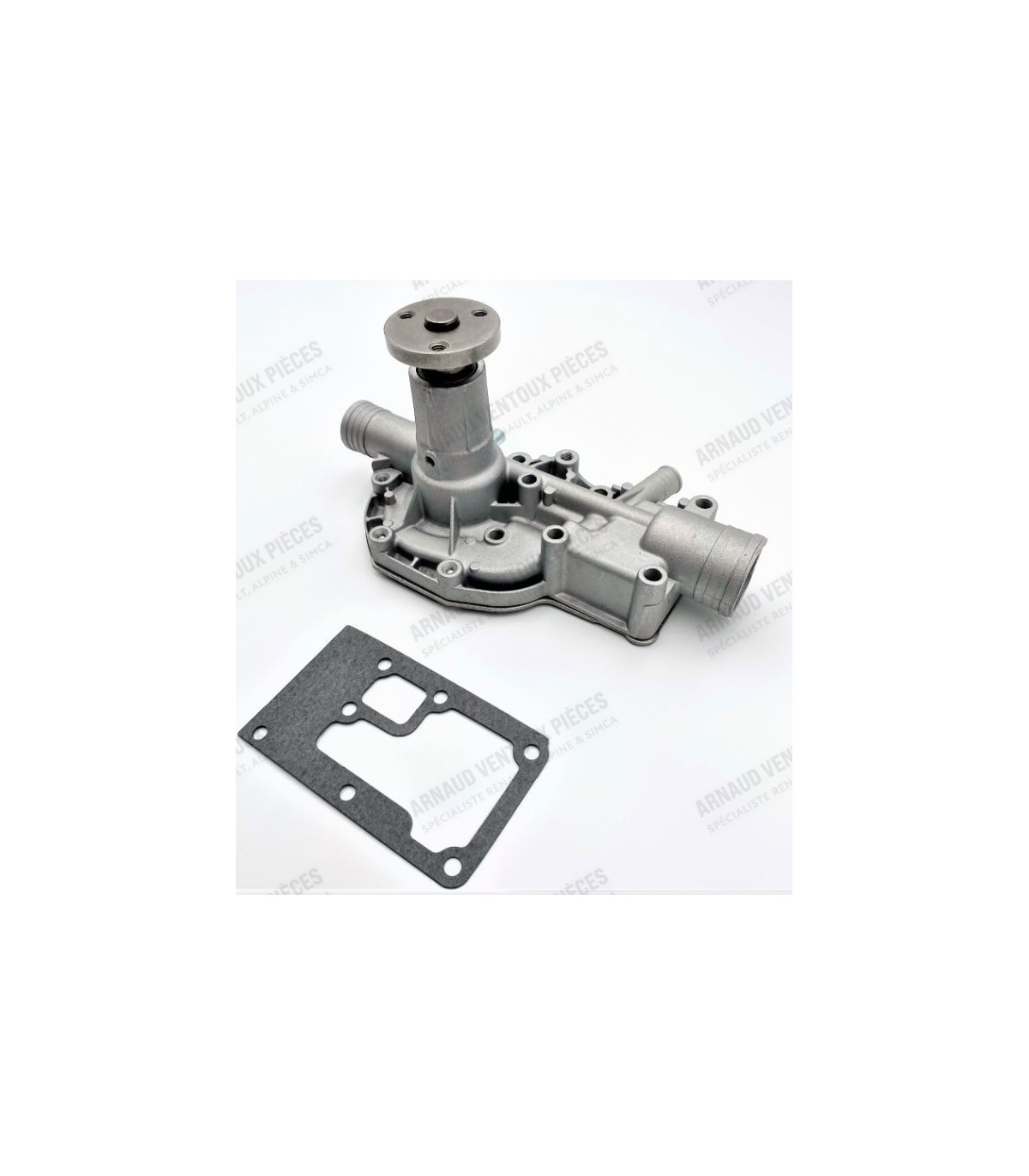

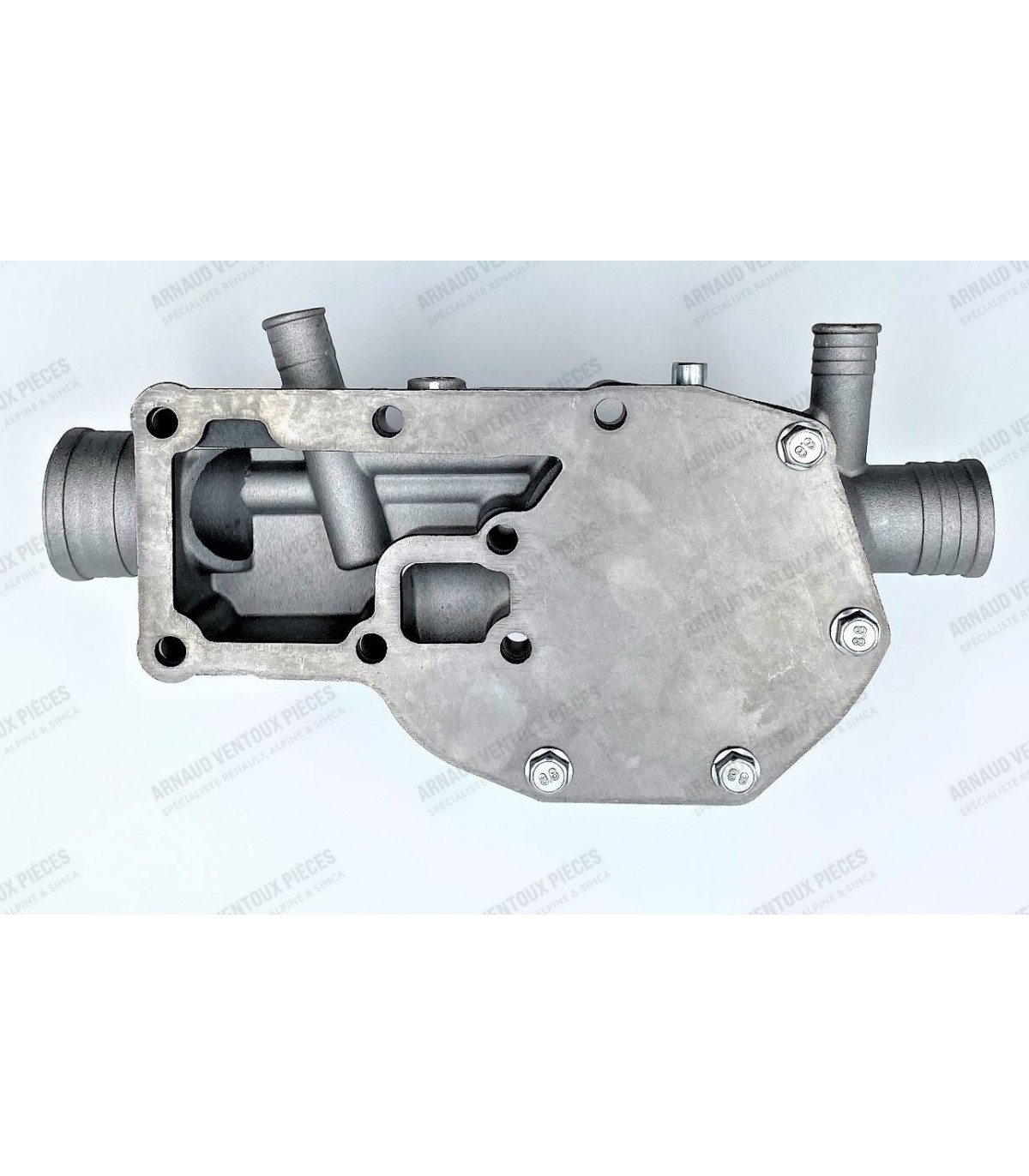

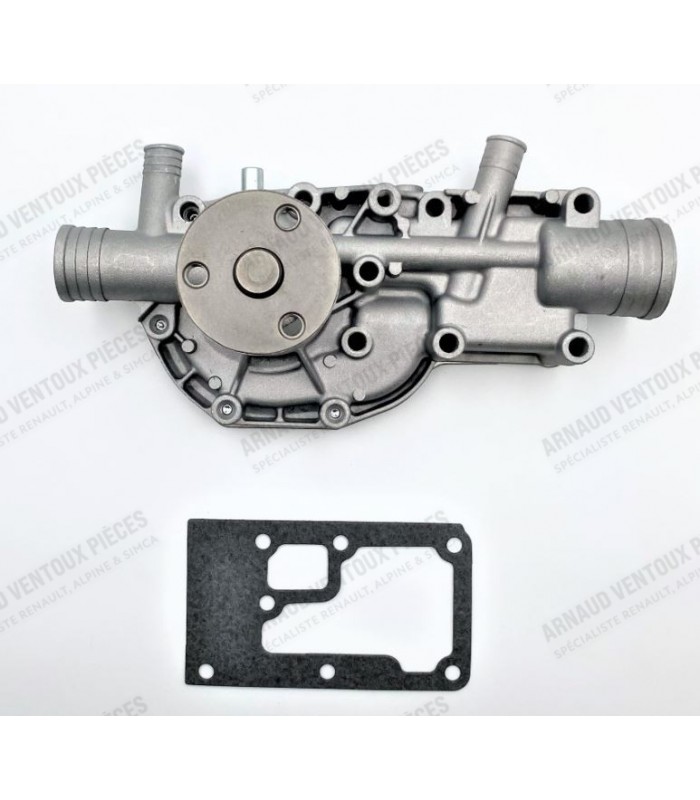

Water pump (1600cc engine) - Pulley mounting hole spacing 37mm

• Useful length (L on photo diagram number 3): 17mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705837200

• Pressure : 0 - 6 bar
• Release pressure : 0.60 bar
• Thread: M14x150
• If fitting the pressure transmitter to a 1397cc R5 Alpine (R1223) engine, use extension part number: AVP5091

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).

• 4 spark plug wires + 1 coil wire
• Straight terminals on coil
• Length of coil cable: 61cm
• Length of 2 spark plug cables: 26.5cm
• Length of 2 spark plug cables: 36.5cm
• We would like to point out that our spark plug wires are made with Ø 7mm silicone wire and a standard copper core (wire material), they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as a radio, tripmaster, monitor, or certain kits electronic ignition, interference or disruption may occur.
