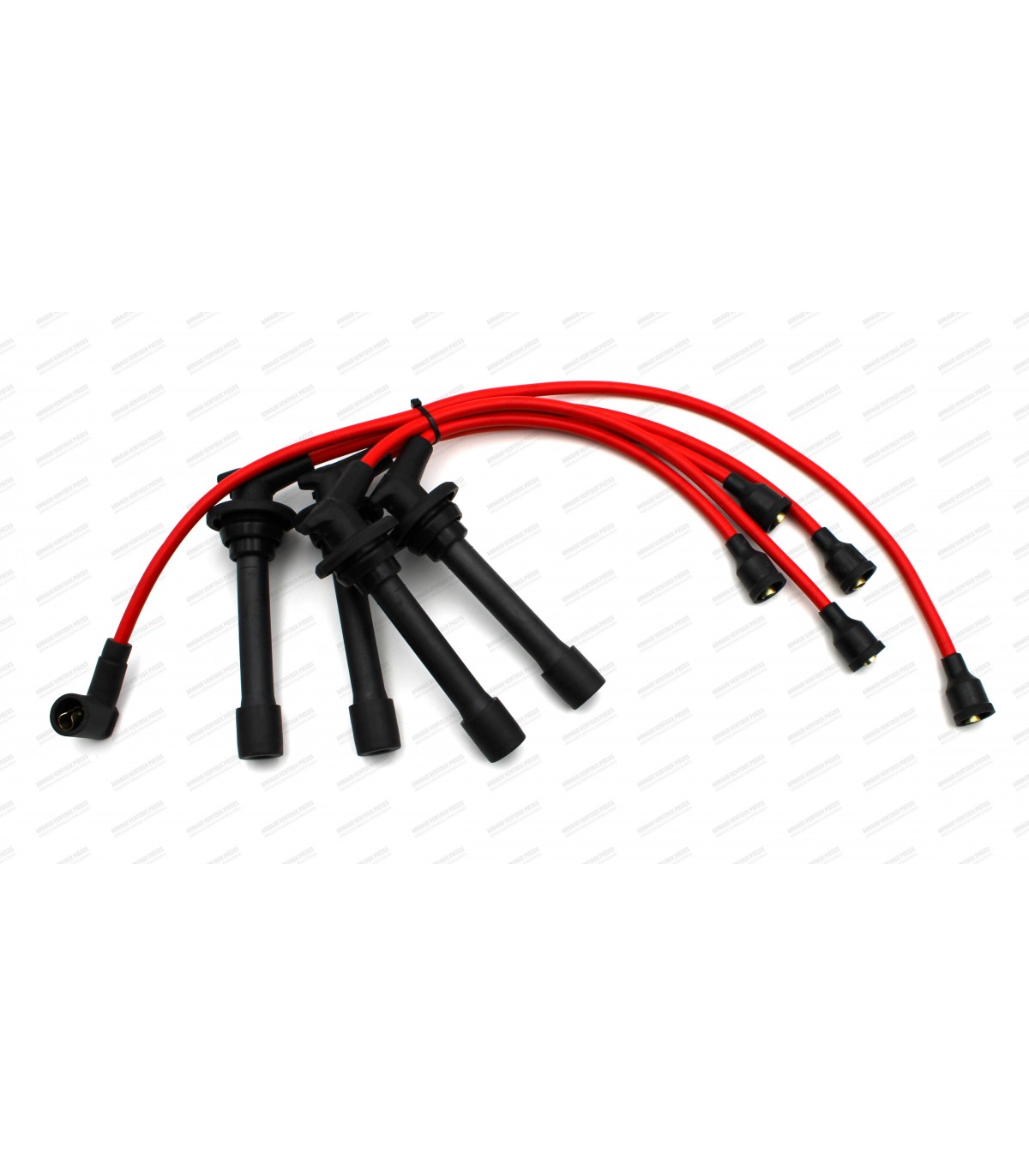

Red Silicone Ignition Harness with Straight Terminals (Long Extensions Built into the Wires)

• Useful length (L on photo diagram number 3): 19.5mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705322000

The sets are supplied with the following components:

• Liners (x4)
• Pistons (x4)
• Rings (x12)
• Panels (x4)

Dimensions of the different parts:

• • Liner bore diameter: Ø 76mm
  • Liner flange or top diameter (D): Ø 90.10mm
  • Liner base diameter (A): Ø 80.60mm
  • Overall height including skirts of cylinder liners (C):134mm
  • Height from top of cylinder liner to base gasket surface (E): 95mm
  • Shaft dimensions: Ø 20x62mm (Cirlip-free mounting)
  • Ring thickness:1.75mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
  • Base gasket type: O-ring

Piston mounting direction: an arrow drawn perpendicular to the piston axis on top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

• Built-in short extensions
• Straight coil terminal
• Coil wire length: 50cm
• We would like to point out that our spark plug wires are made with Ø 7mm silicone wire and a standard copper core (wire material), which means they do not have interference protection.
• If the vehicle is equipped with sensitive electronic accessories, such as a radio, tripmaster, monitor, or certain electronic ignition kits, interference or disruption may occur.

• Useful length (L on photo diagram number 3): 17mm
• Sold with the pin
• OE Renault / Alpine Ref: 0705837200
