Air bypass screw for WEBER DCOE 40 and DCOE 45 carburetor

• Suitable for WEBER 40DCOE and 45DCOE
• sold individually, need 2 pieces for one carburettor

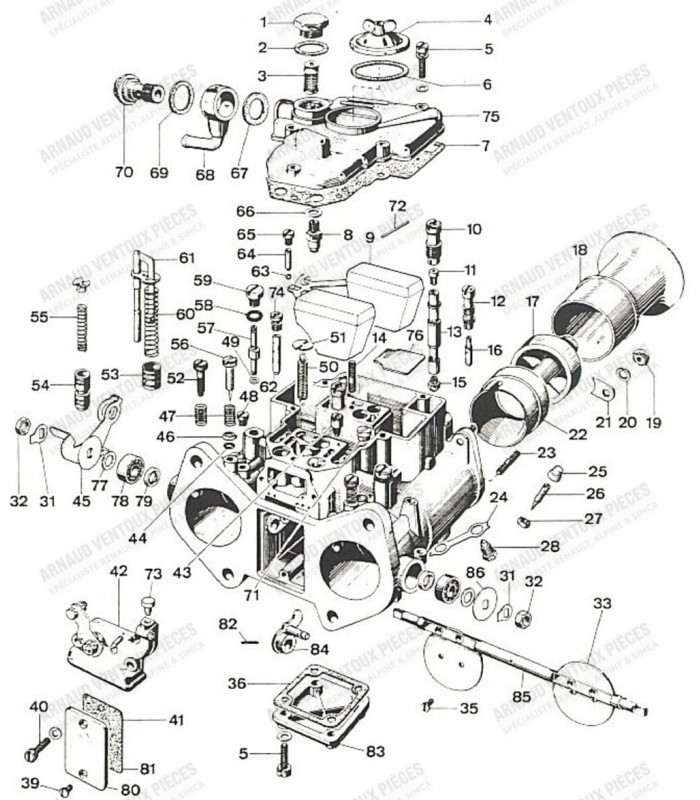

• Part number 46 on exploded view
• Compatible with other WEBER carburettors, see below

• Fuel pressure gauge kit.
• Allows fuel pressure adjustment with the "King" filter REF 6825.
• Graduation from 0.20g up to 1 bar.
• With connector and clamp for 6 or 8 diameter flexible hoses.
• The pressure gauge can be removed after adjustment and the cap provided in the kit can be screwed on for greater privacy in the engine compartment.

• Suitable for WEBER 40DCOE carburetor
• Extension length from the carburetor = 25mm
• Stud/nut mounting
• Allows the installation of high-performance filters REF 48099 or 48100
• Also suitable for AVP stock filter ref 48103
• If installing with the new-generation venturi REF 48084 or REF 48085, the installation of the spacer REF 48087 is recommended.
• For competition use

• Suitable for carburettor WEBER 40DCOE / 45DCOE
• To ensure a perfect seal between the mixture screw and the carburettor body (do not forget the support cup)
• sold individually, need 2 pieces for a carburettor
• Number 44 on exploded view
• Compatible with other WEBER carburettors, see below

• Suitable for first generation WEBER 40DCOE and 45DCOE carburetors
• Sold individually, requires 2 pieces for one carburetor
• Number 56 on exploded view
• Compatible with other WEBER carburetors, see below

Diamond Dimensions:

• Height: 34 mm
• Width: 22 mm
• One mounting stud: Ø 4 mm
