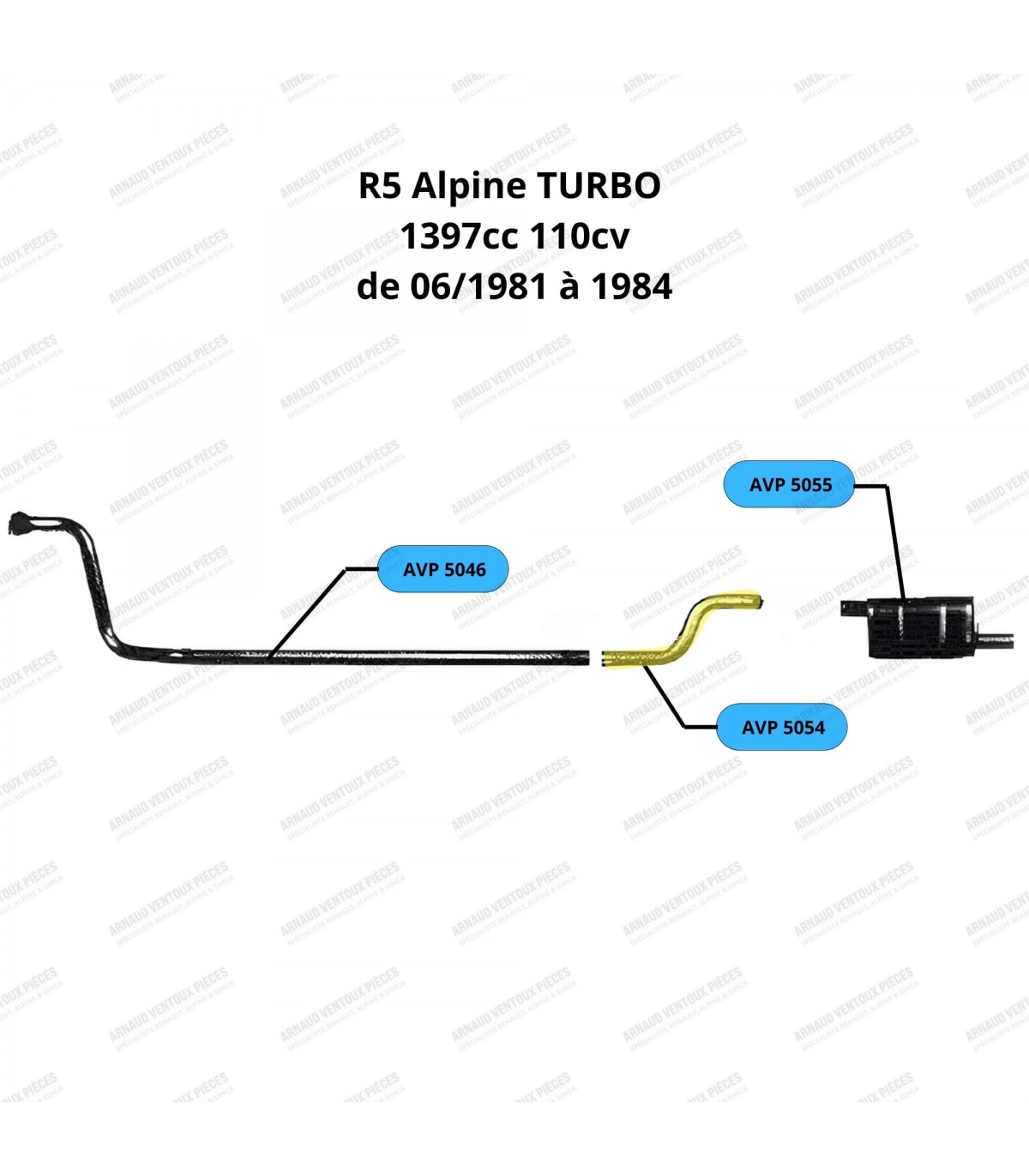

Intermediate exhaust pipe - R5 Alpine Turbo (From 06/1981 to 1984)

• Mounts after the intermediate exhaust pipe. See photo #2
• Renault OE Ref: 6001001362
• Inlet Tube Diameter: Ø 52mm (internal)
• Outlet Tube Diameter: Ø 52mm (outternal)

Suitable for:

• R5 Alpine Turbo R122B: from 06/1981 to 1984

Suitable for:

• R5 Alpine (R1223)
• R5 Alpine Turbo (R122B)

Silentbloc Dimensions:

• Inner Diameter (D1): Ø 37.1mm
• Outer Diameter (D2): Ø 55.2mm
• Height (H1): 27.1mm
• Height (H2): 32.9mm
• Silentbloc Rubber Hardness: 60 Shore

This sticker is printed upside down so that it can be positioned on a window inside the vehicle.

Suitable for:

• R5 All models (2nd Version)

Seal dimensions:

• Inner diameter: Ø 22mm
• Outer diameter: Ø 33.3mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 25.8mm
• Push button diameter: Ø 21.5mm

Ø 40mm output

Ø 32mm inside

• R4 (Billancourt Engine): Alternator belt - Ref 0854249800
• R5 Alpine (1223) / R5 alpine Turbo (122B): Water pump belt

• Mounts between the manifold and the intermediate tube. See photo #2
• Renault OE Ref: 6001001267
• Inlet Tube Diameter : Ø 48mm (inner)
• Outlet Tube Diameter : Ø 52mm (outer)
• Collar diameter: 62mm (outer)

Suitable for :

• R5 Alpine Turbo R122B : from 06/1981 to 1984
