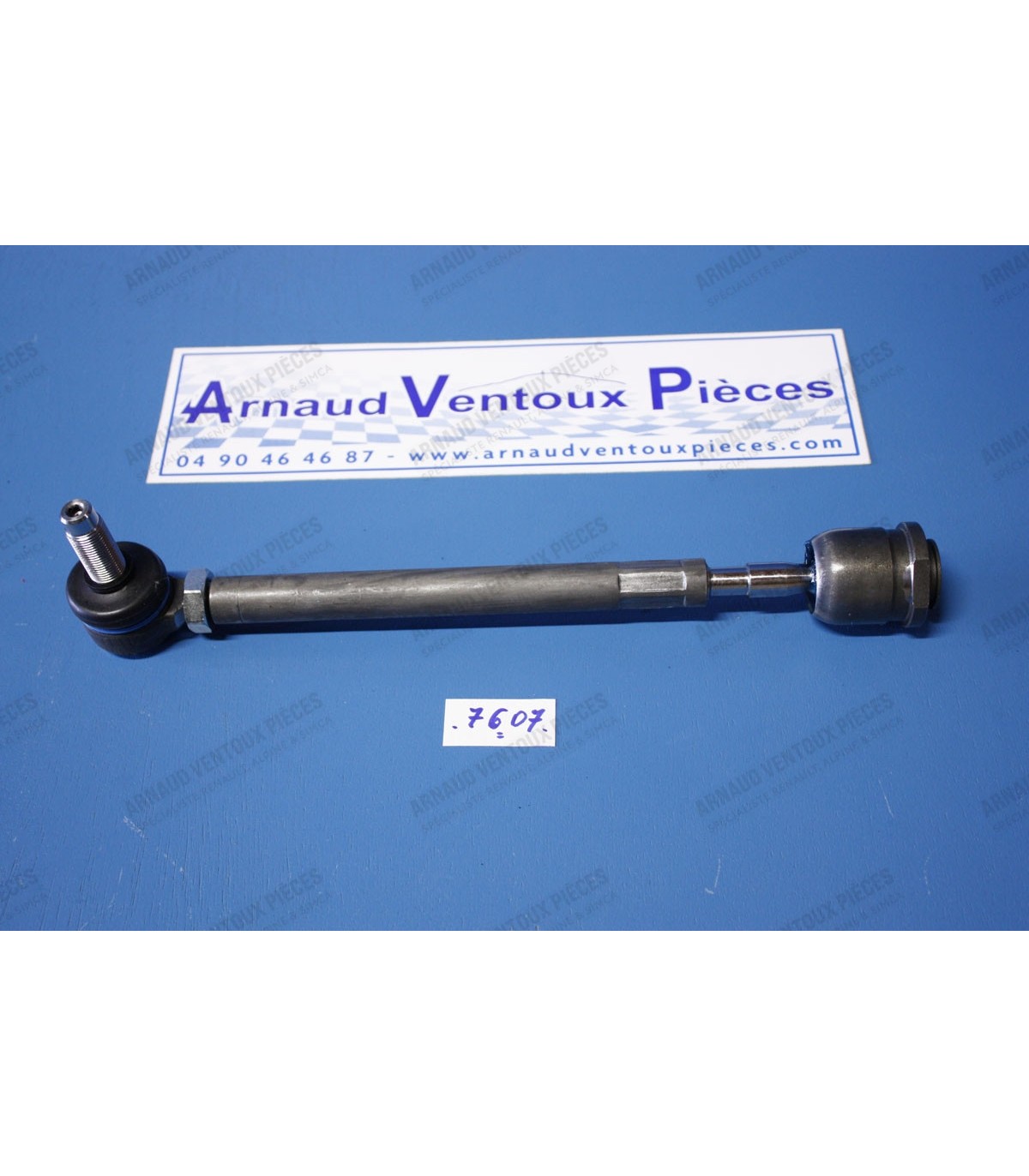

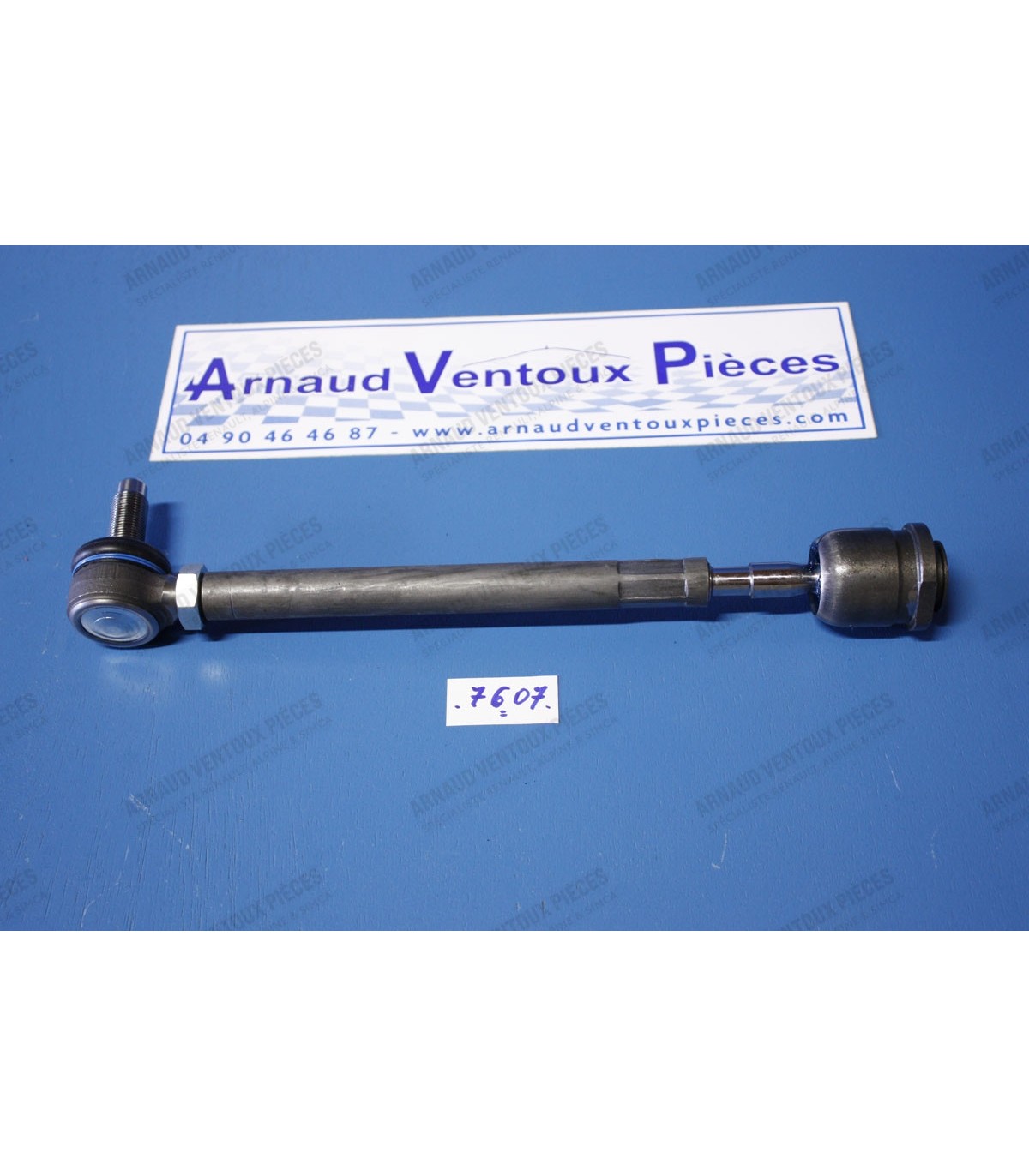

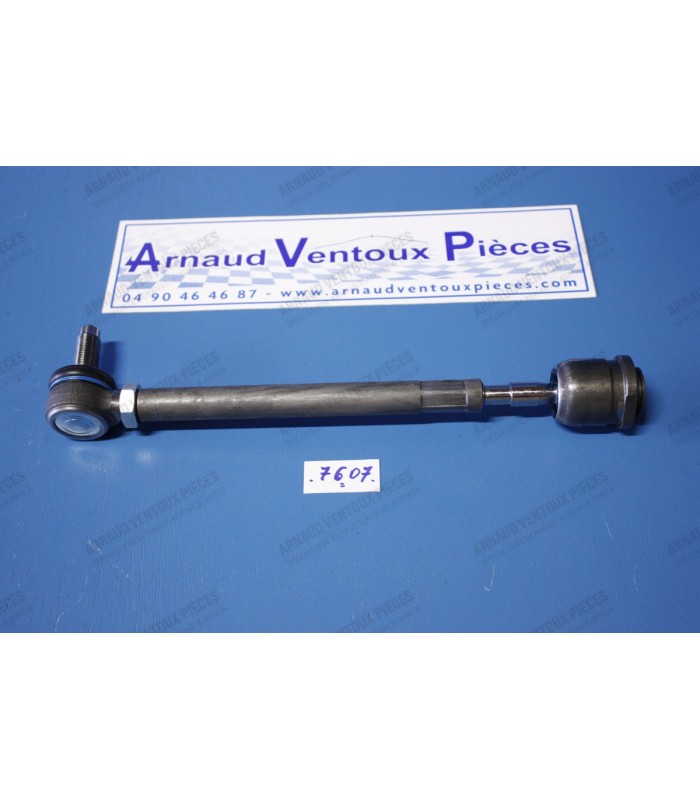

Complete steering rod (Rod + nut + ball joint) - Reinforced version (M14x150) - A310.4 / A310 V6
- The reinforced tie rod and ball joint kit (M14x150) replaces the original M12x100 tie rods and ball joints without any modification.
- It is possible to install it on an A310.4 using the AVP7609 adapter to replace the original "fork" tie rods.
- Tie rod sold individually.
Sold individually

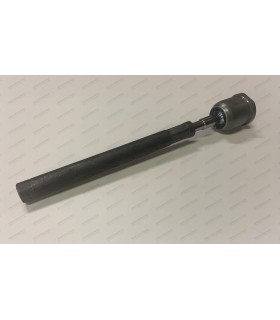

- Tie rod/ball joint thread: M14x150(Left-hand thread)
- Tie rod sold individually
- It is possible to install it on an A310.4 using the AVP7609 adapter to replace the original "fork"-type tie rods
The AVP7606 tie rod is not compatible with the original A310 V6 M12x100 mounting, but must be assembled with the AVP7344 reinforced tie rod end.
A kit (AVP7609) is required to modify the rack on both sides.
- Ball Joint Thread: M14x150 (Left-Hand Thread)
- Ball Joint Thread: M14x125 (Right-Hand Thread)
- Tie rod end sold individually
The AVP7344 tie rod end is not compatible with the original A310 V6 M12x100 mounting, but must be assembled with the AVP7606 reinforced tie rod.
Suitable for the following gearboxes:
- Box 353
- Box 364-05 / 364-06
- Box 365-00 / 365-02 / 365-10 / 365- 14 / 365-20 / 365-24 / 365-28 / 365-29 / 365-33
- Box 385
- Wheel-side bowl diameter: Ø 82mm
- Drive shaft diameter: Ø 25mm
The sets are supplied with the following components:
- Cylinder Heads (x6)
- Domed Pistons (x6)
- Rings (x18)
- Pin (x6)
Dimensions of the various parts:
-
- Cylinder Head Bore Diameter: Ø 88mm
- Cylinder Head Flange or Top Diameter (D): Ø 102.20mm
- Cylinder Head Base Diameter (A): Ø 93.48mm
- Overall height including skirts of the cylinder liners (C):131.80mm
- Height from the top of the liner to the base seal area (E): 99.10mm
- Shaft dimensions: Ø 23.50x71.80mm (Cirlip-free mounting)
- Ring thickness:1.45mm / 2mm / 4mm (Fireproof/Sealing/Scraper)
- Base seal type: Paper gasket
Piston mounting direction: an arrow drawn perpendicular to the axis of the The piston ring is located on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).
It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values specified by the manufacturer or given in the supplied instructions.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.
Bearing Dimensions (Sold in packs of 12):
- Crankshaft Diameter: Ø 52.30mm
- Bearing Diameter: Ø 56.0mm
- Width: 17.65mm
- Thickness: 1.84mm
Suitable for the following engines:
- Alpine A310 V6: PRV 112.730 Engine
- Alpine V6 GT (D500): Z6W Engine
- Renault 25 Injection (B29A) : Z7W-702 Engine
OE Renault / Alpine Ref: 7901060645 / 7701460463 / 7701348429
