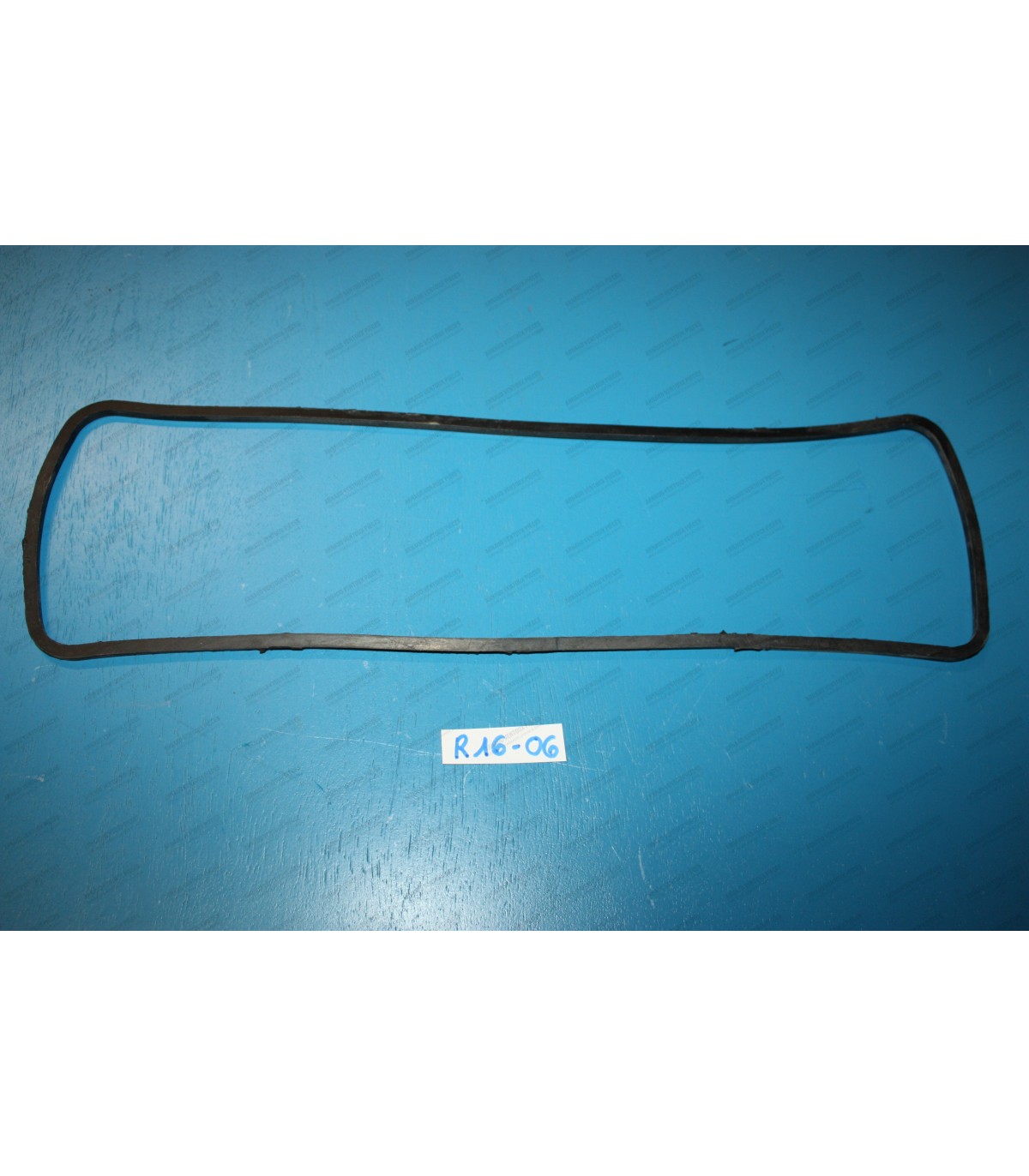

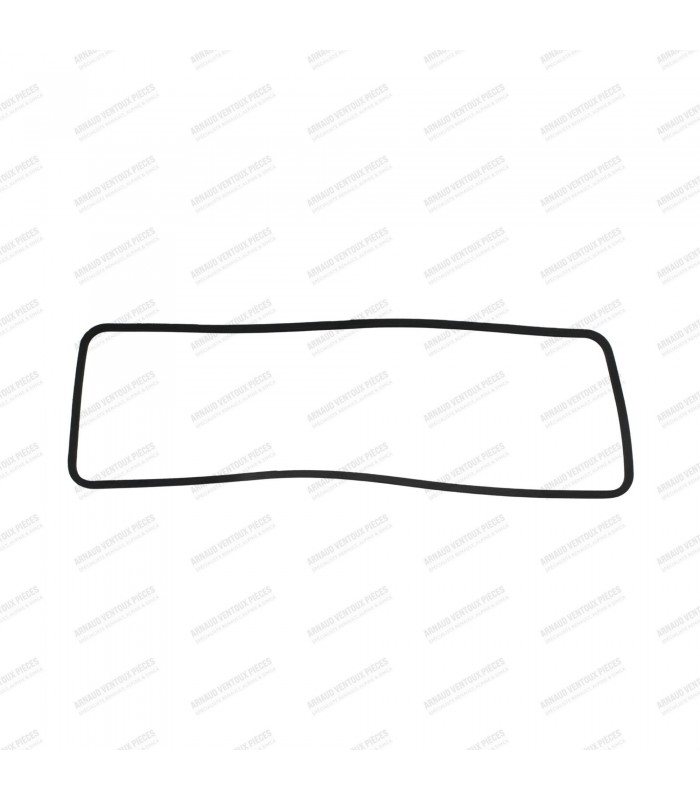

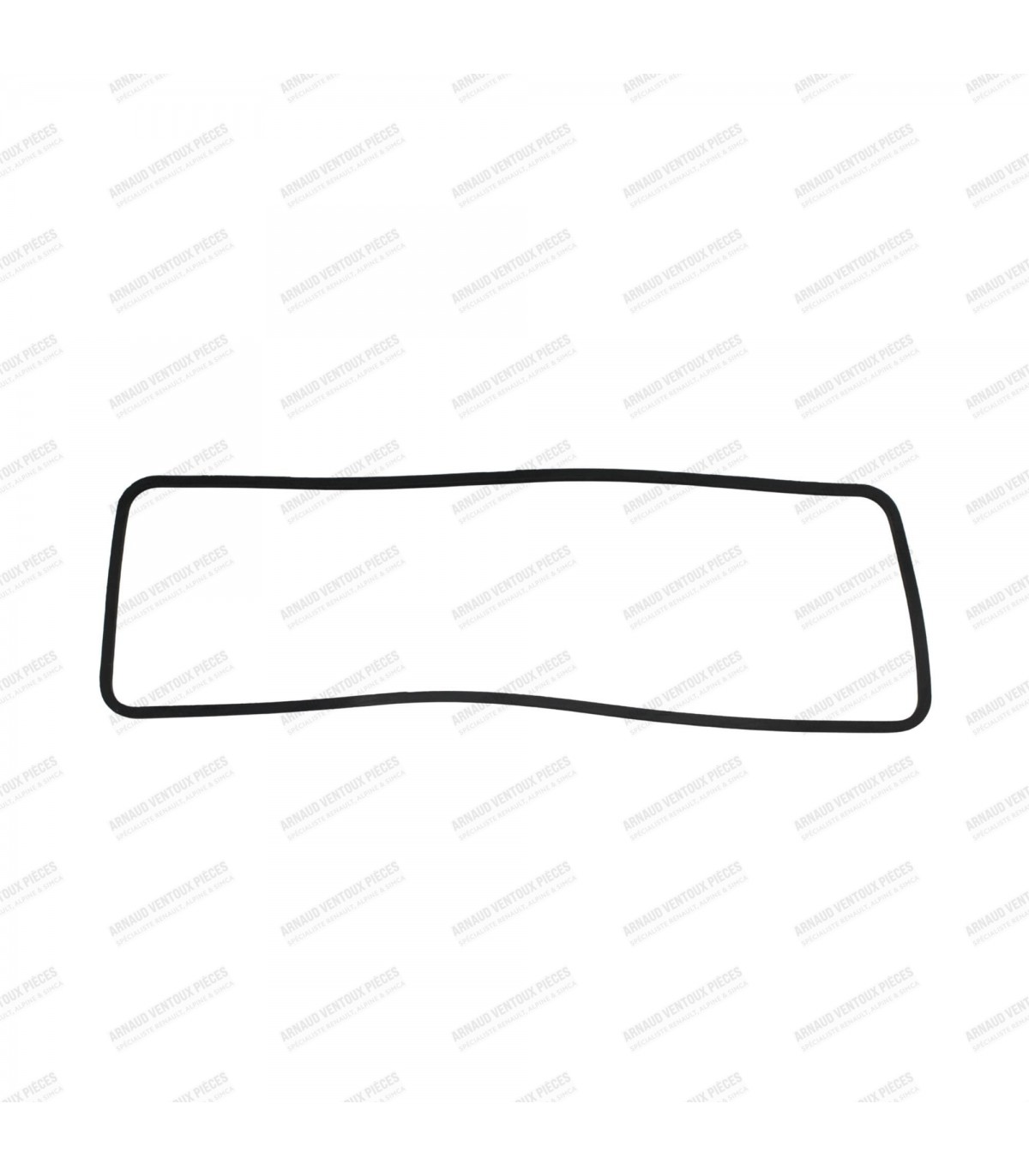

Rubber rocker cover gasket - R16 (L / TL)

• The sets are supplied with the following components:

  • Liners (x4)
  • Pistons (x4)
  • Segments (x12)
  • Axles (x4)

  Dimensions of the individual parts:

  • Liner bore diameter: Ø 79mm
  • Liner collar or top diameter (D): Ø 96mm
  • Liner base diameter (A): Ø 84mm
  • Height including skirts (Overall) of the sleeves (C): 143.50 mm
  • Height from the top of the sleeve to the base seal area (E): 92.60 mm
  • Shaft dimensions: Ø 21 x 69 mm
  • (Cirlip-free mounting) Segment thickness: 1.75 mm / 2 mm / 4 mm (Fireproof/Sealing/Scraper)
  • Base seal type: O-ring

Piston mounting direction: an arrow drawn perpendicular to the piston axis is shown on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

• Primary winding resistance: 1.8 ohms

Need two kits for one car.

• Kit to be used with a coil of primary resistance between 2.5 and 3.5 ohms
• Compatible with coils AVP4708 and AVP4715
• Compatible for Ducellier igniter with an inner body diameter of Ø 58.8mm
• Not suitable for an igniter with externally adjusted breakers (different plate fixing points)
• Supplied with 3 screws for fixing the plate
• Instructions included
