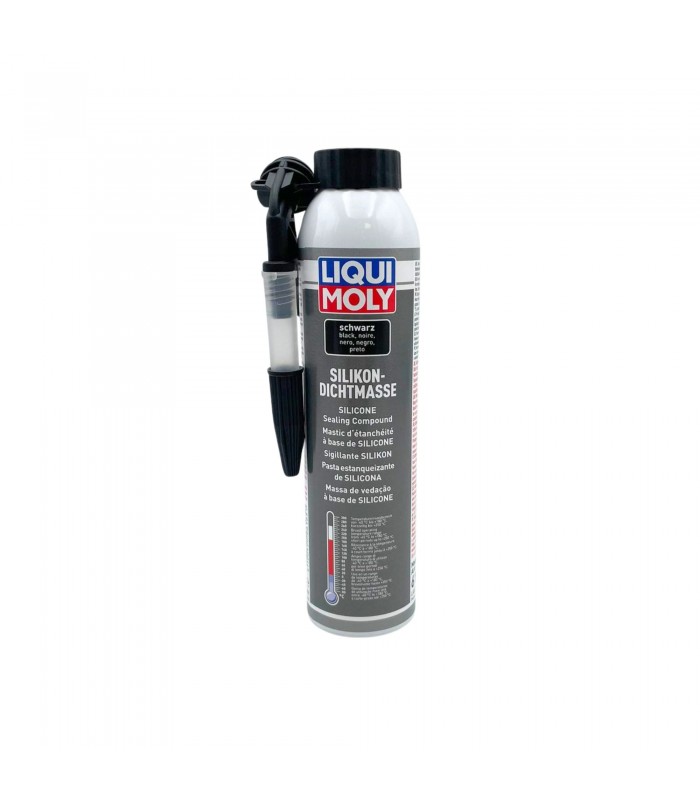

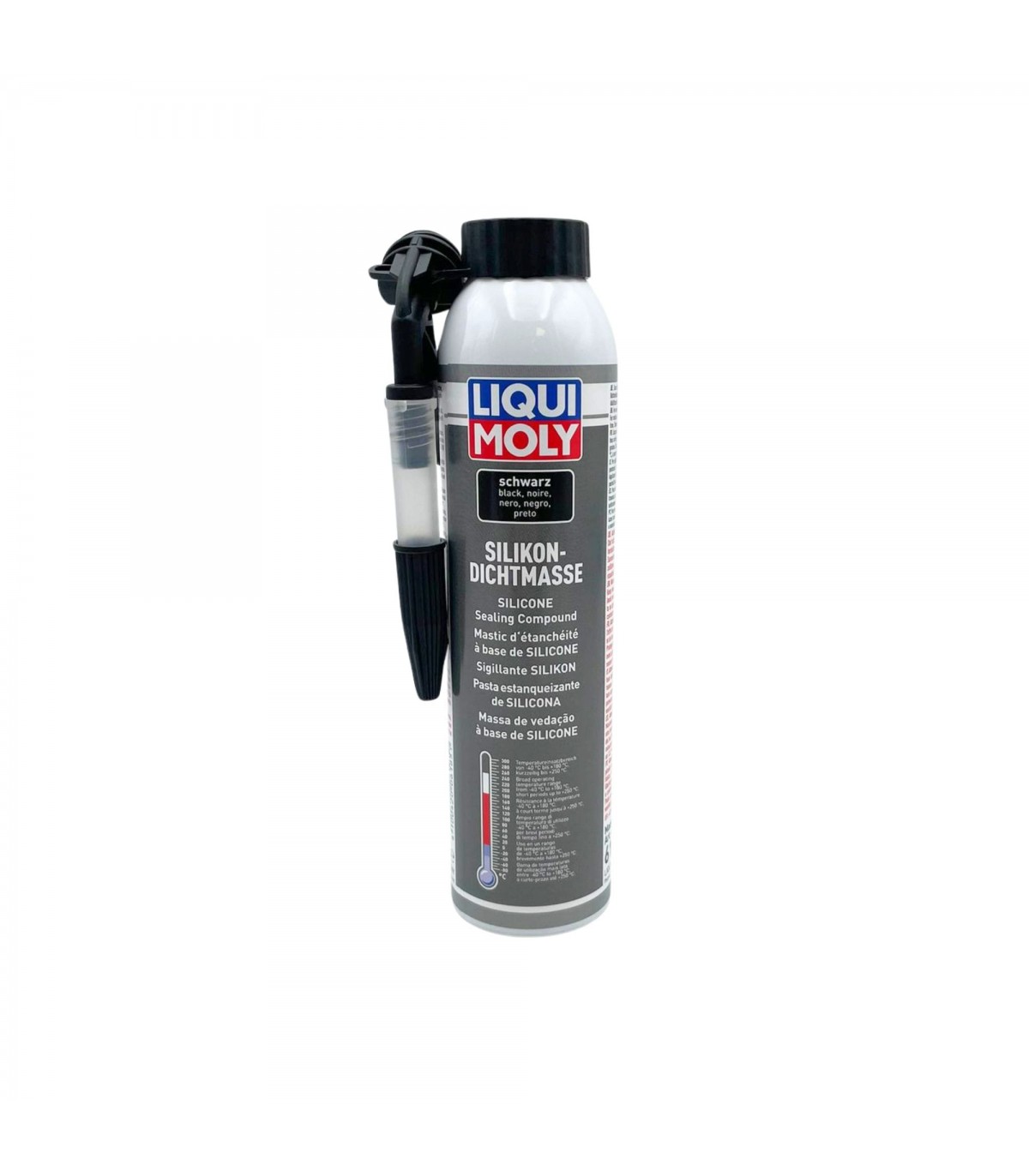

Black sealant cartridge with dispenser

• Single chain: x58 links
• Crankshaft sprocket x17 teeth and camshaft sprocket x34 teeth
• Oil seal: Ø 35x50x8mm
• Timing cover gasket: Cork and rubber

Segment Characteristics:

• • Segment Diameter:Ø 88mm
  • Thickness of Upper Segments (Fire-resistant): 1.5mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Suitable for:

• R5 / R18 / R21 / R25 / R30 / : Rear Brake
• R8: Rear Big Brake Installation
• R5 Alpine Turbo (122B): Rear Brake
• R12G / R17G: Rear Brake
• A110: Rear Big Brake Installation
• A310.4: Rear Brake
• A310 V6 (Pre-1980): Rear Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop facing forward (in the direction of wheel rotation)

Spacer inner diameter 10mm

Inner diameter of the rubber 12mm

Suitable for:

• Eye end cap of rack and pinion - Ref 0824373600 / 7700504987
• Front tie rod end cap or rear tie rod end cap - A110 - Ref 7700504987
• Exhaust hanger - A310 V6 - Ref 7700504987

Inner diameter of the eye: Ø 10mm
