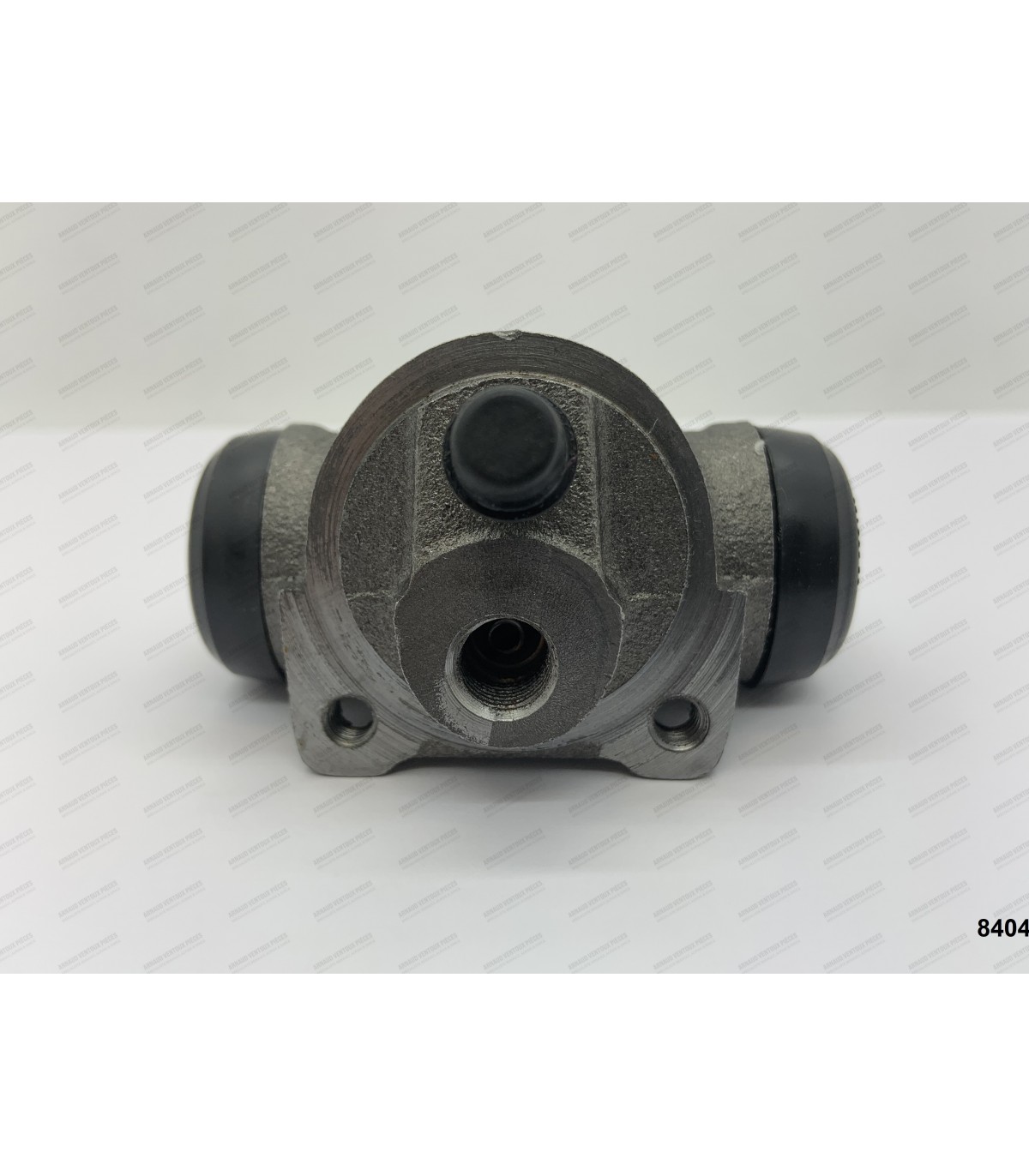

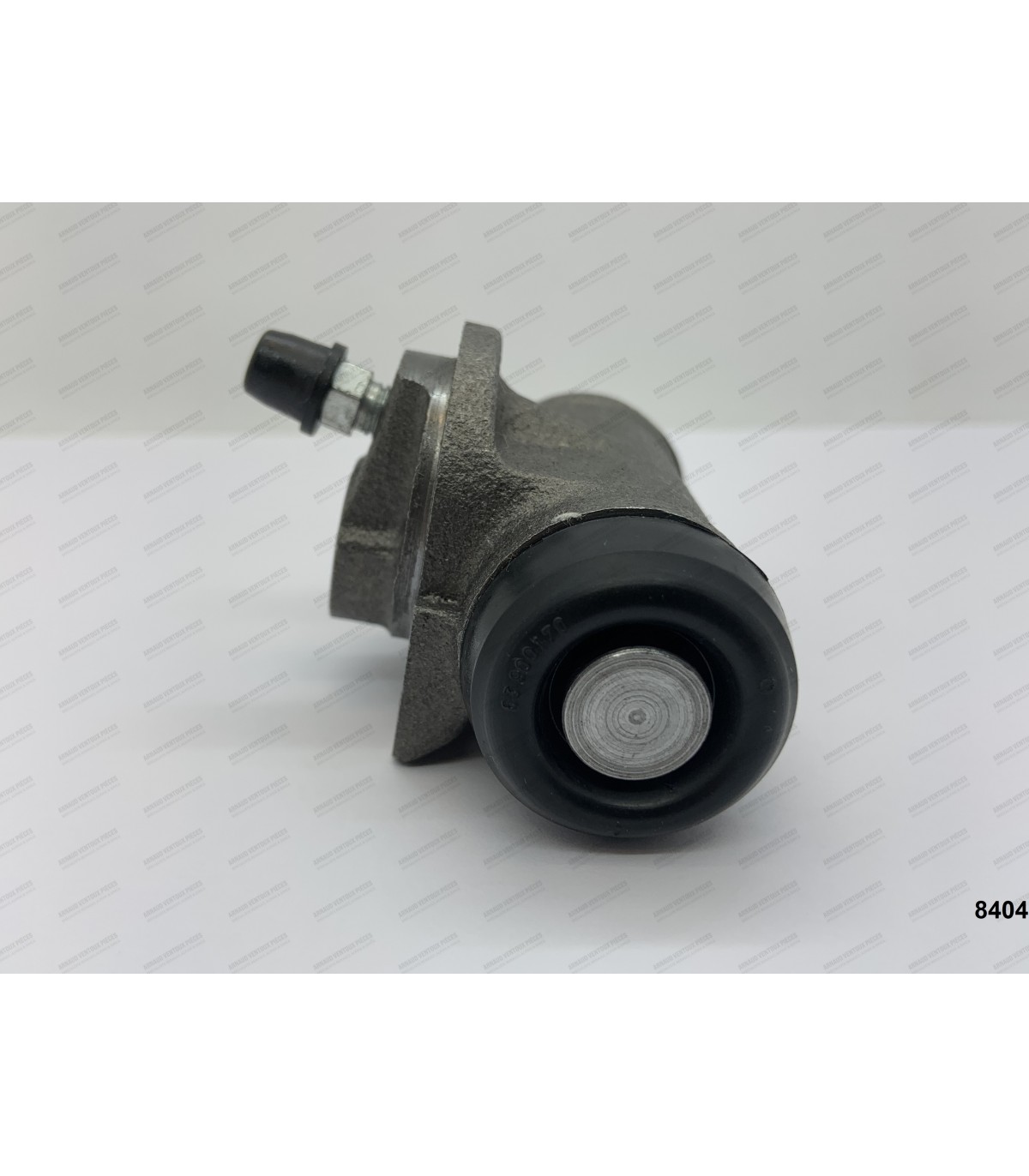

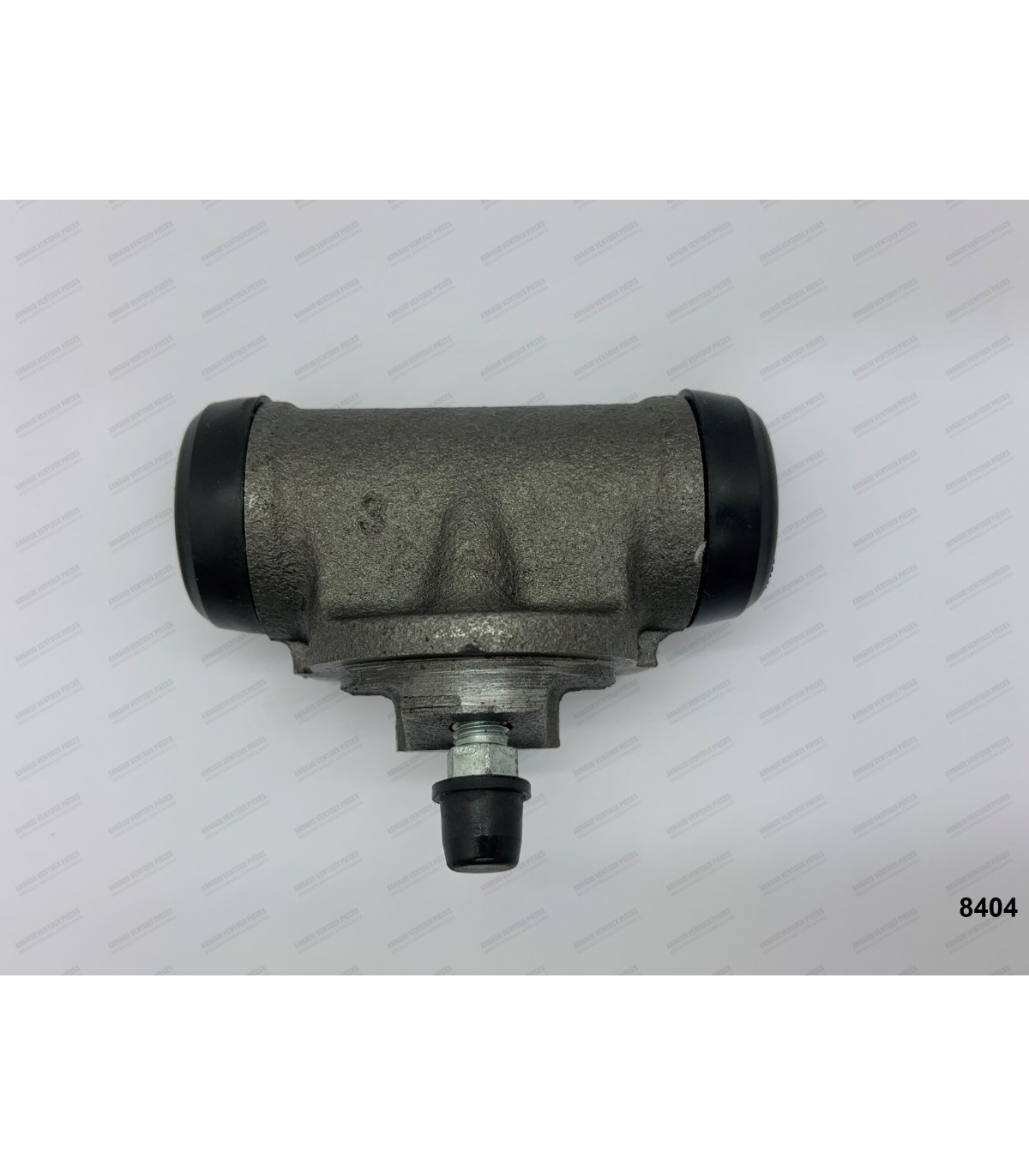

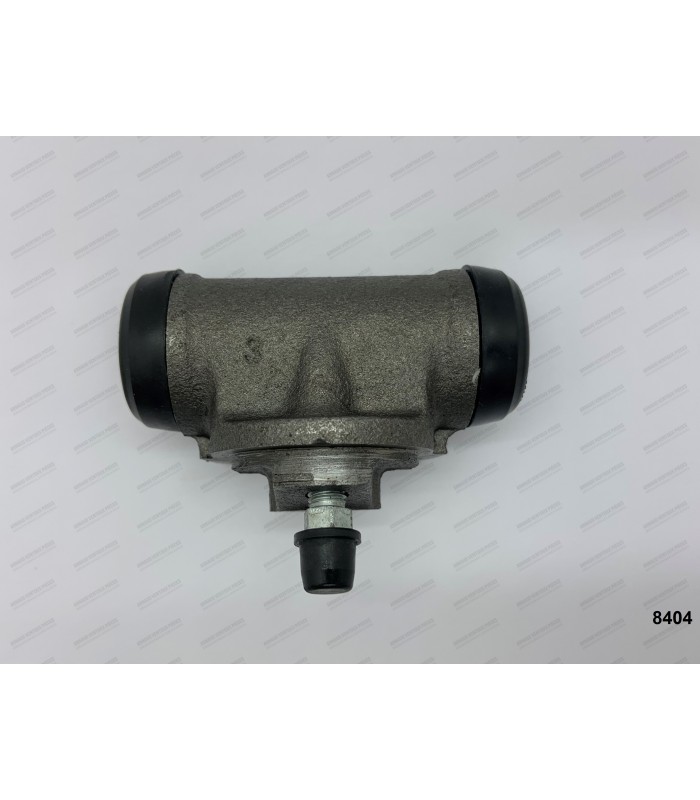

Rear Right or Left Wheel Cylinder (Bendix Mounting) - Ø 22mm (Right Outlet) - R12 / R15 / R16 / R17 - Ref 7701365377

Suitable for:

• R4 / 4L: Front Brake
• R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
• R8: Big Brake Installation: Front Brake
• R12 (All models): Front Brake
• R15 / R16 / R17 (All models): Front Brake
• A110: Big Brake Installation: Front Brake
• A310.4 / A310 V6 (Pre-1980): Front Brake
• Alpine GTA (V6 GT and V6 Turbo): Front Brake

Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)

Suitable for:

• R5 Alpine Coupe / GR2 : Front Brake
• R12G / R17G : Front Brake
• R15.TS / R17TS / R17TL : Front Brake
• R16.TX (1st assembly) : Front Brake
• A310.4 (n°1 to n°909) : Front Brake

Suitable for:

• R5
• R5 Alpine Atmo (1223) and Alpine Turbo (122B)
• R12 (All models)
• R15
• R18

For DBA (Bendix) or Girling mounting

• • Mounting hole spacing: 36mm
  • Hose fitting: x1 Ø3/8" - 24UNF (recessed cone)
  • Hose fitting: x1 Ø3/8" - 24UNF (external cone)
  • Renault OE part number: 7700509913 / 7700526087 / 7700547124
  • Bendix original part number: L 631269

Suitable for:

• • R12 (All models)
  • R15  (All models)
  • R17 (All models)

• • Length: 34.5cm
  • Male/Female Connection: Ø 3/8"-24UN
  • Original Renault OE Reference: 7701452359 / 7701454063 / 7701452077

Suitable for:

• • R12 (TL / TS / Gordini): Front and Intermediate Brake Hose
  • R16 (All models): Front Brake Hose
  • R15 and R17 (TL / TS / Gordini): Front and intermediate brake hose

• Installation with brake booster

Suitable for:

• PR12 TS / TR (R1177): From 10/1972
• R12 Estate L/TL / LN / TN (R1330 - 2nd assembly): From no. 41502 to end of series
• R12 Estate S/ TS / Gordini (R1137)
• R16 TS (R1151)
• R16 L / TL (R1152)
