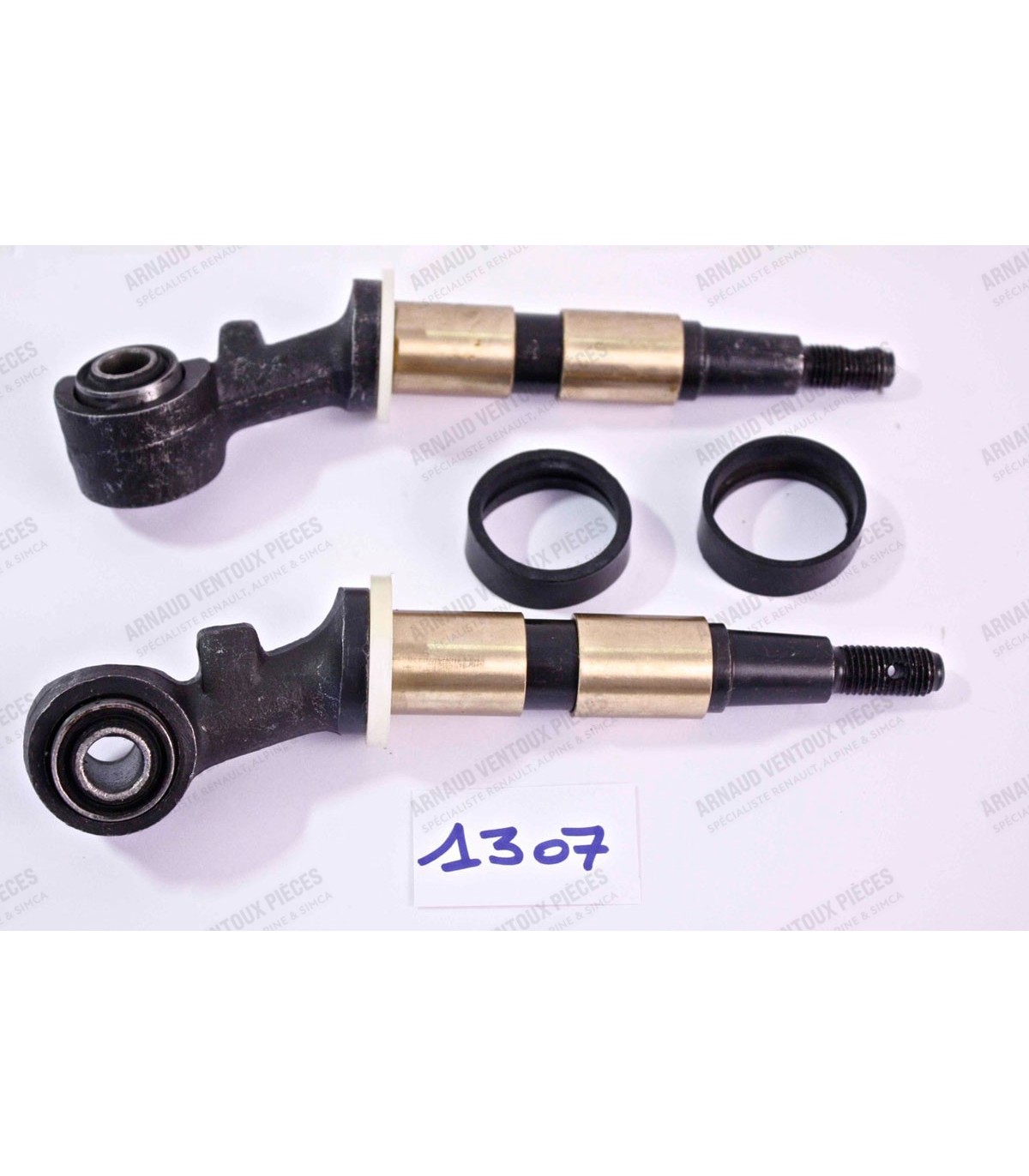

Pivot set with 4 bronze rings and silent bloc - 2nd model

• This kit contains an M9 adjustment screw nut and an M8 nut.
• Kit sold with a strong Ø 38mm square gasket and a weak Ø 38mm gasket.
• The supply of these two seals allows you to install the most suitable seal depending on the wear of the caliper grooves.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square seal, while a circle symbol indicates a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have Calipers of different origins, some of which may have square joints and others round joints.
• It is not recommended to mix calipers on the same set, as this can lead to the risk of skewing during braking.

Grey color

Length taken from the axis of the fixing eye to the end of the rod: min adjustment 105mm / max 115mm

Possible mounting on the 4CV / Dauphine and Dauphine Gordini cylinder head (aligned or offset mounting holes)

• Intake manifold inner diameter: Ø 29mm
• Exhaust manifold inner diameter: Ø 29mm
• Outlet inner diameter: Ø 29mm

Steel manifold with anti-corrosion surface treatment (Shoopage/aluminium zinc coating)

• This kit contains an M9 adjustment screw nut and an M8 nut.
• To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
• The "square" symbol indicates the presence of a square seal, while the circle symbol indicates the presence of a round seal.
• It is essential to replace the same type of seal (round or square) according to the symbol on the caliper.
• We recommend that you Check the symbol displayed on each caliper, as a vehicle may have calipers of different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same assembly, as this can lead to the risk of skewing during braking.
