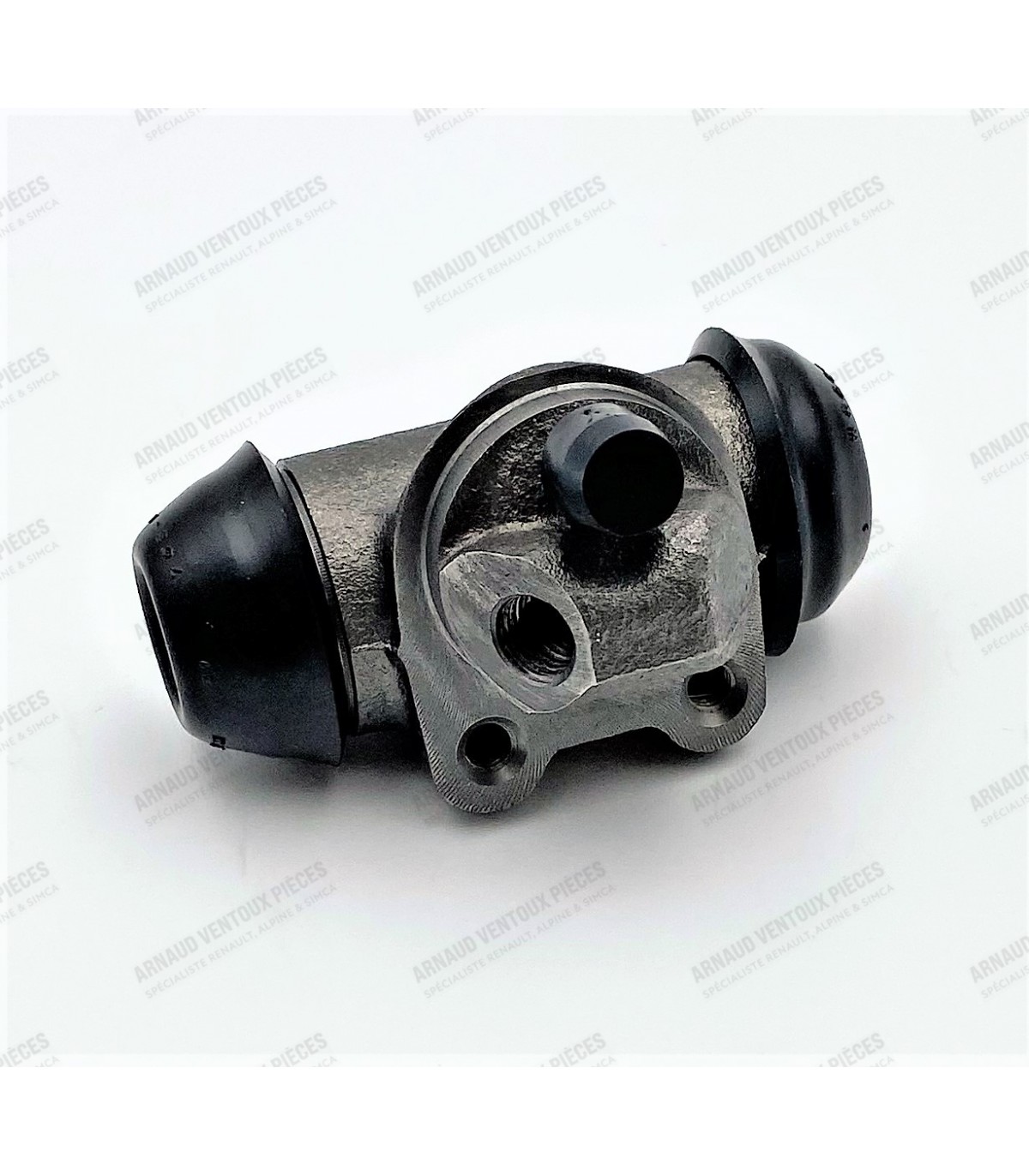

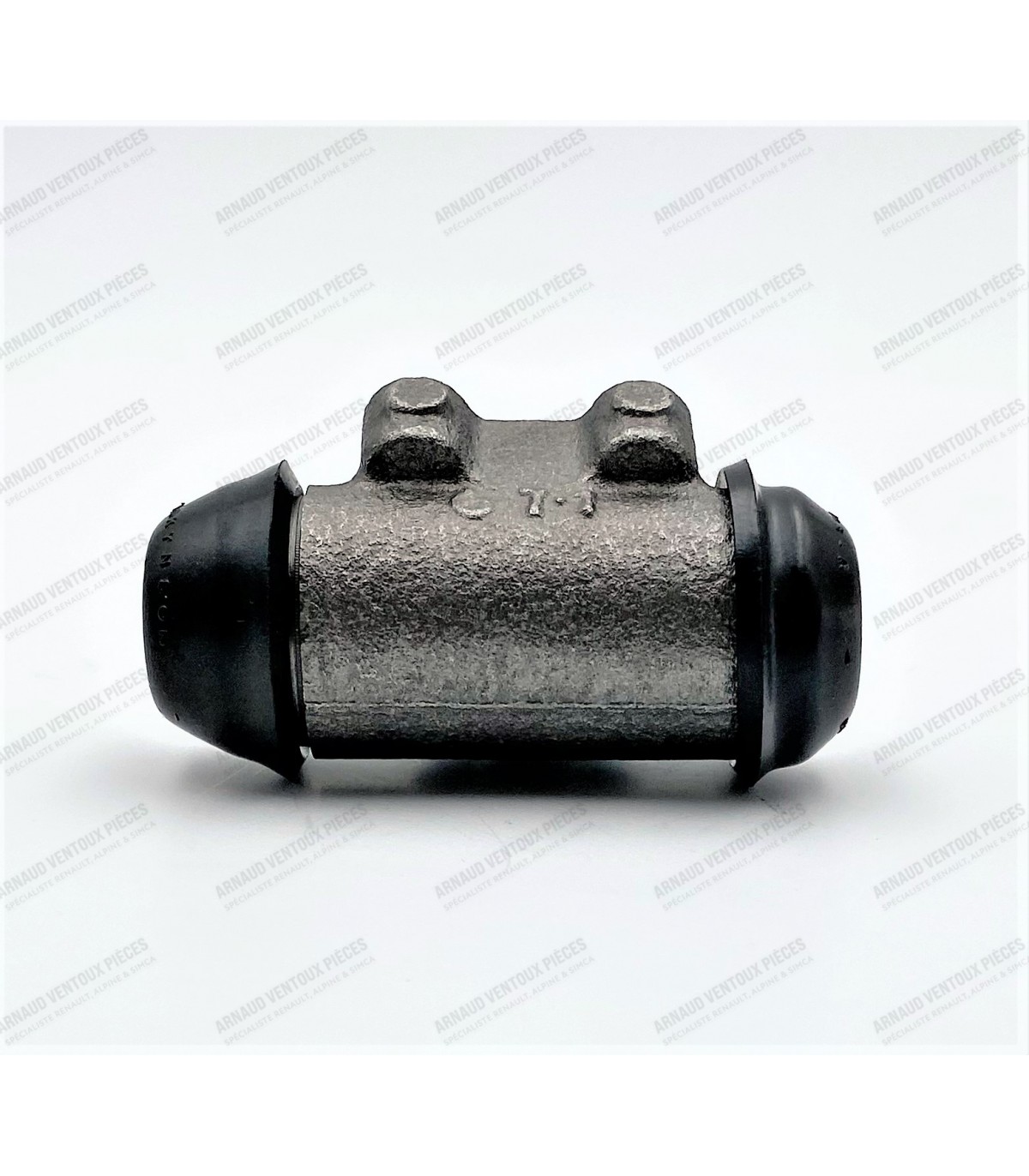

Right Rear Wheel Cylinder (Angled Outlet) - Ø 19mm - 4CV (From early 1956 to the end of production) / Dauphine / Floride

Reference:
1417
    • Angled hose outlet: Ø 3/8" - 24UNF (Ø 9.52mm)

Suitable for:

    • 4CV: Right Rear Brake (From early 1956 to the end)
    • Dauphine / Floride: Right Rear Brake
    • Alpine A106 / A108: Right Rear Brake
Read moreShow less
€29.00 (tax incl.)
Order before 1pm and enjoy same day shipping !
In stock
Description

Rear wheel cylinder Ø19mm:

For 4CV (from the beginning of 1956 to the end of series), Dauphine, Floride, Alpine A106 and Alpine A108

Oblique outlet and flexible connection 3/8" - 24UNF

Read moreShow less
Product Details
1417
Customers who bought this product also bought:

The sets are supplied with the following components:

  • Liners (x4)
  • Pistons (x4)
  • Rings (x12)
  • Pin (x4)
  • Circle clips (x8)

Dimensions of the different parts:

    • Liner bore diameter: Ø 58mm
    • Liner flange or top diameter (D): Ø 73mm
    • Liner base diameter (A): Ø 62.50mm
    • Overall height including skirts of the sleeves (C): 126mm
    • Height from the top of the sleeve to the base gasket area (E): 112.80mm
    • Shaft dimensions: Ø 14x50mm (Mounting with circlips)
    • Segment thickness: 1.75mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
    • Base gasket type: Copper gasket

Caution:It is probable Modern cylinder liners and pistons are equipped with a shorter skirt. Installing modern cylinder liners and pistons to replace the original kits requires no modifications.

A shorter skirt promotes better lubrication and allows for an increased crankshaft stroke to prevent the skirt from contacting the connecting rod.

Piston installation direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram). It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions. During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Reference: 2001
€324.00 (tax incl.)
Add to cart
In stock

Suitable for:

  • 4CV: Drum brake (From 06/1953 until the end of production)
  • Alpine A106: Drum brake
  • Dauphine (All models): Disc brake
  • Caravelle / Floride: Disc brake
  • R10 / R8 (All models): Disc brake
  • R12G and R17 Gordini: Disc brake
  • Alpine A110 and GT4: Disc brake
Reference: 4433
€12.00 (tax incl.)
Add to cart
In stock
