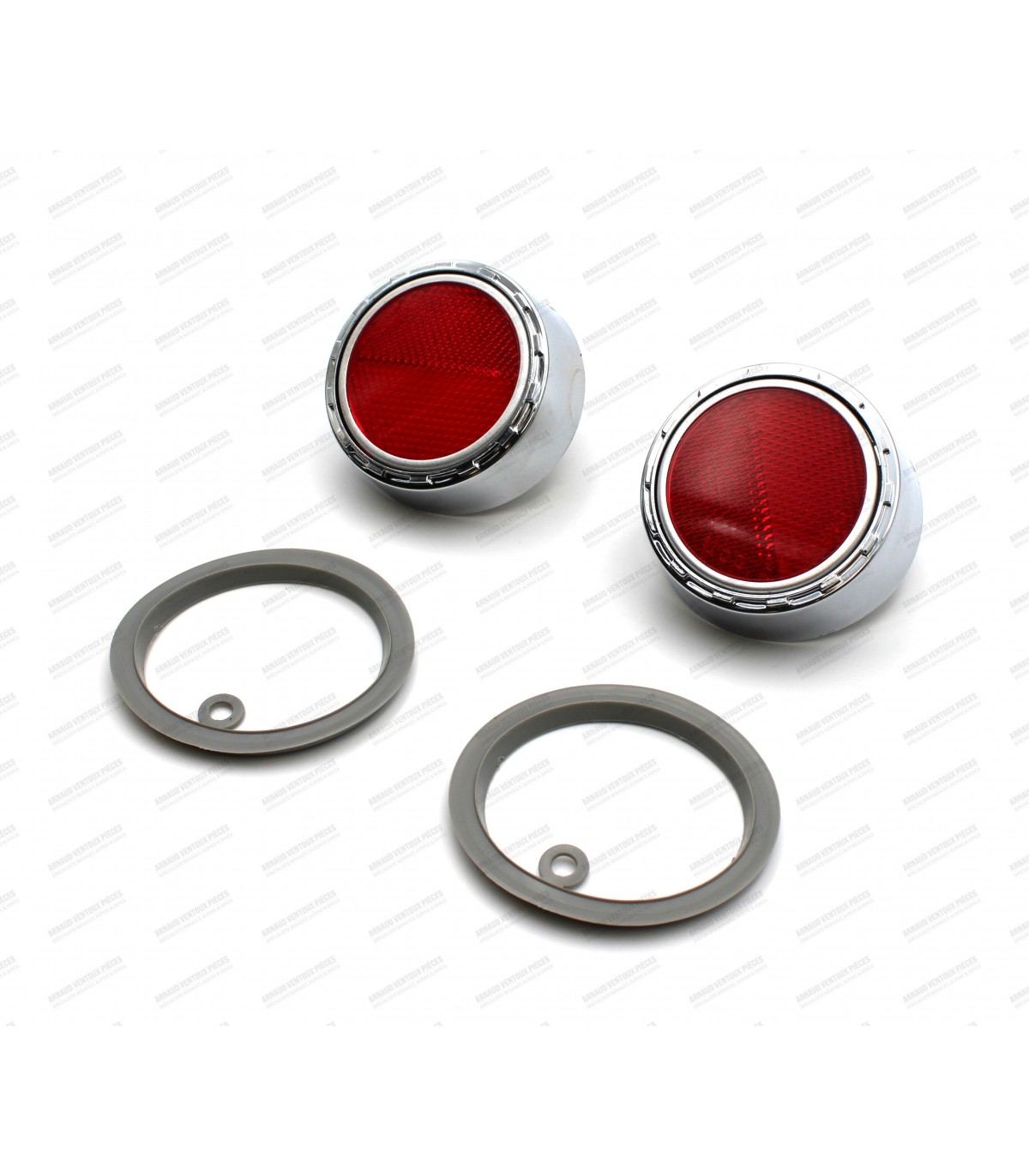

Pair of reflectors with seal on rear valance

Features:

• Mounting eye width: 21mm
• Lower mounting eye inner diameter: Ø 9mm
• Shock absorbers sold in pairs

This brake limiter replaces the original non-adjustable rear brake proportioning valve.

The limiter is not load-dependent (it does not vary according to the vehicle's load).

Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).

Limiter specifications:

• Inlet thread (x1): 3/8-24UNF (Male cone)
• Outlet thread (x2): 3/8-24UNF (Male Taper)
• Mounting Screw Hole Diameter: Ø 8.5mm
• Limiter Adjustment Range: 5 turns
• Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum

Self-locking washer:

• Inner diameter: Ø 2.5mm
• Outer diameter: Ø 8.5mm

• Primary winding resistance: 1.8 ohms

• Female connector: Ø 3/8"-24UNF (Ø 9.52mm) x3
