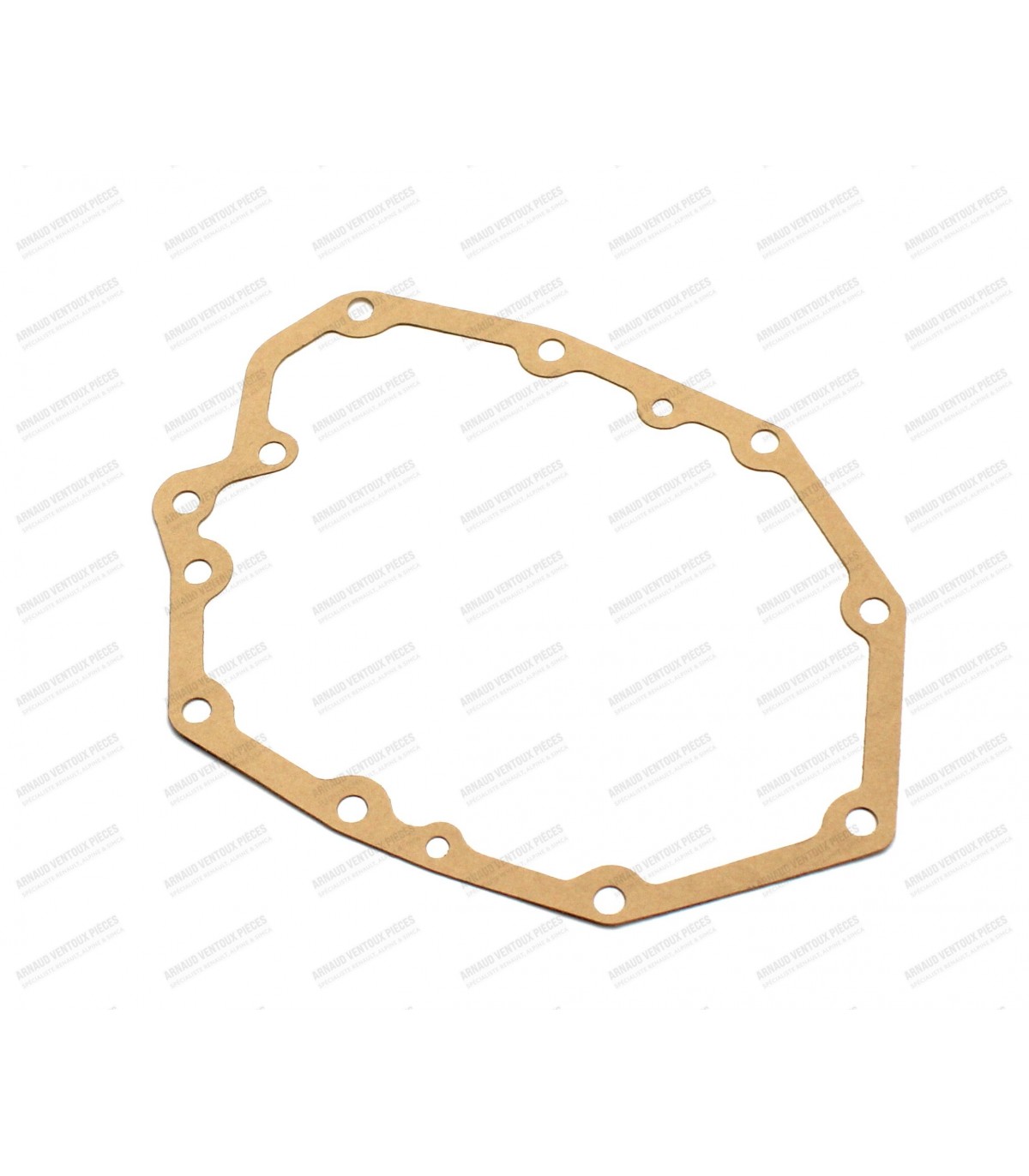

Paper gasket for gearbox bottom - Gearbox 365-00/365-02/365-05 - ref 7700521271

Suitable for the following gearboxes:

• • 5-speed gearbox A110 / A310.4: Gearbox 365-00 / 365-02 / 365-05 / 365-10 / 365-20 / 365-33
  • Gearbox R12 / R12G / R15 / R17 / R17G: Gearbox 352 / 365 / 395
  • 5-speed gearbox R5 Alpine: Gearbox 385
  • Original Renault OE reference: 7700554257 / 0556231900

Output shaft seals The differential nuts (36x54x11mm diameter) are interchangeable, whether with or without a metal cage, and with or without felt; this does not require any modification to the differential nuts.

• • Overall length: 226cm
  • Sheath length: 64.5 cm x 2
  • Cable length: 223cm

Our cables are made in France and meet the assembly and quality standards of original equipment (OEM) cables from automotive manufacturers.

Synchro Characteristics:

• Outer cone with angle (A):9°
• All outer friction surfaces or sectors (x15) are identical and equidistant.
• Synchro smooth on the face opposite the synchro lug (See diagram)
• Renault OE Ref: 0428406300

Suitable for the following gearboxes:

• 330 Gearbox: 330-01 / ...
• 336 Gearbox : 336-...
• Gearbox 352: 352-10 / 352-11 / 352-13 / ...
• Gearbox 353: 353-03 / 353-13 / 353-33 / ...
• Gearbox 364: 364-05 / 364-06 / ...
• Gearbox 365: 365-...

We recommend carefully disassembling and identifying the synchros (9° or 6°40' angle, friction sector, etc.) in each gearbox, as we have observed some mixtures.

The gearbox numbers on the identification plate are not the most reliable way to identify the correct part.

Suitable for:

A310.6: Front and rear disc - After 1980 (n°47709 at the end of the series)

R5 Turbo: Front and rear disc
