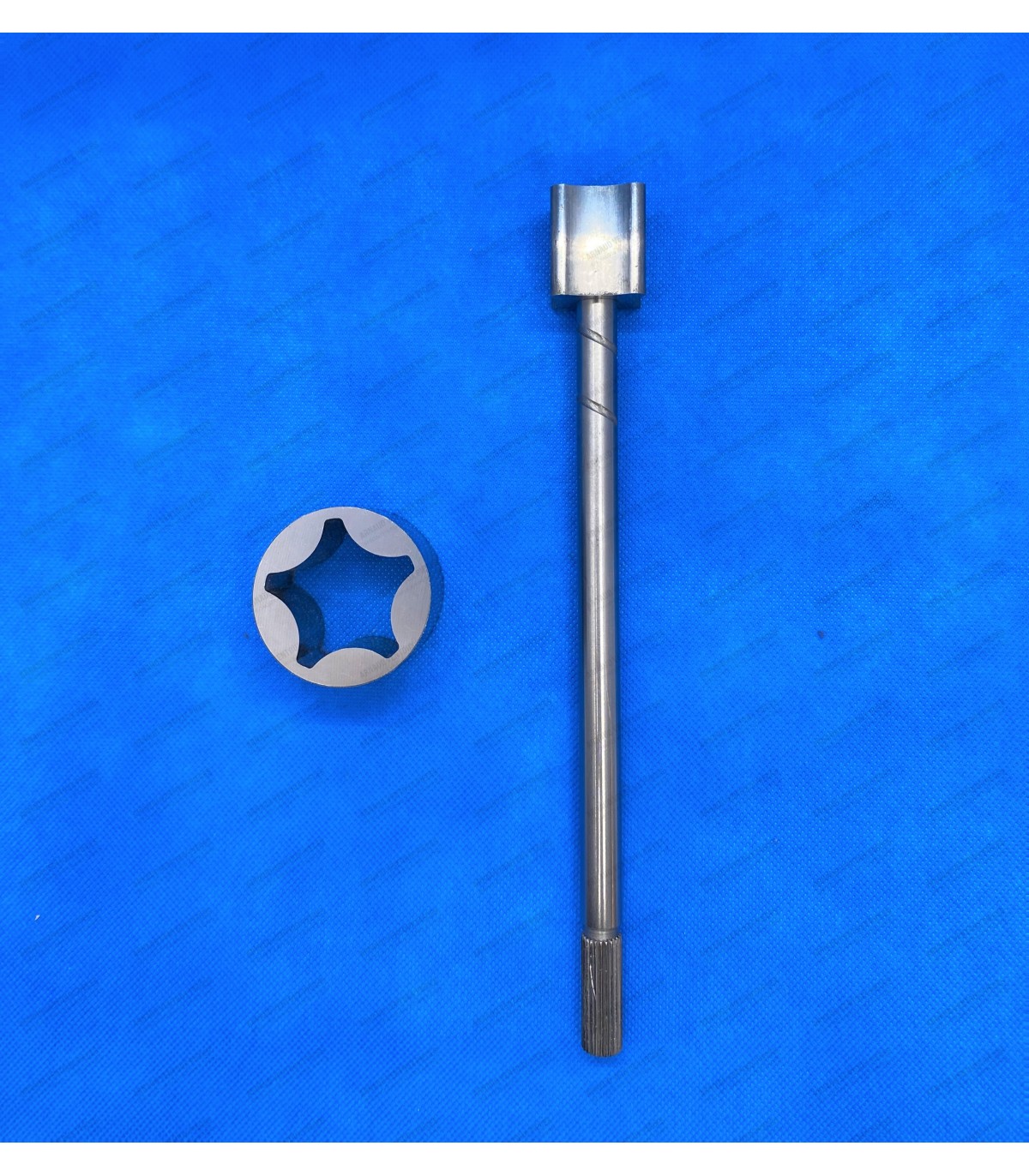

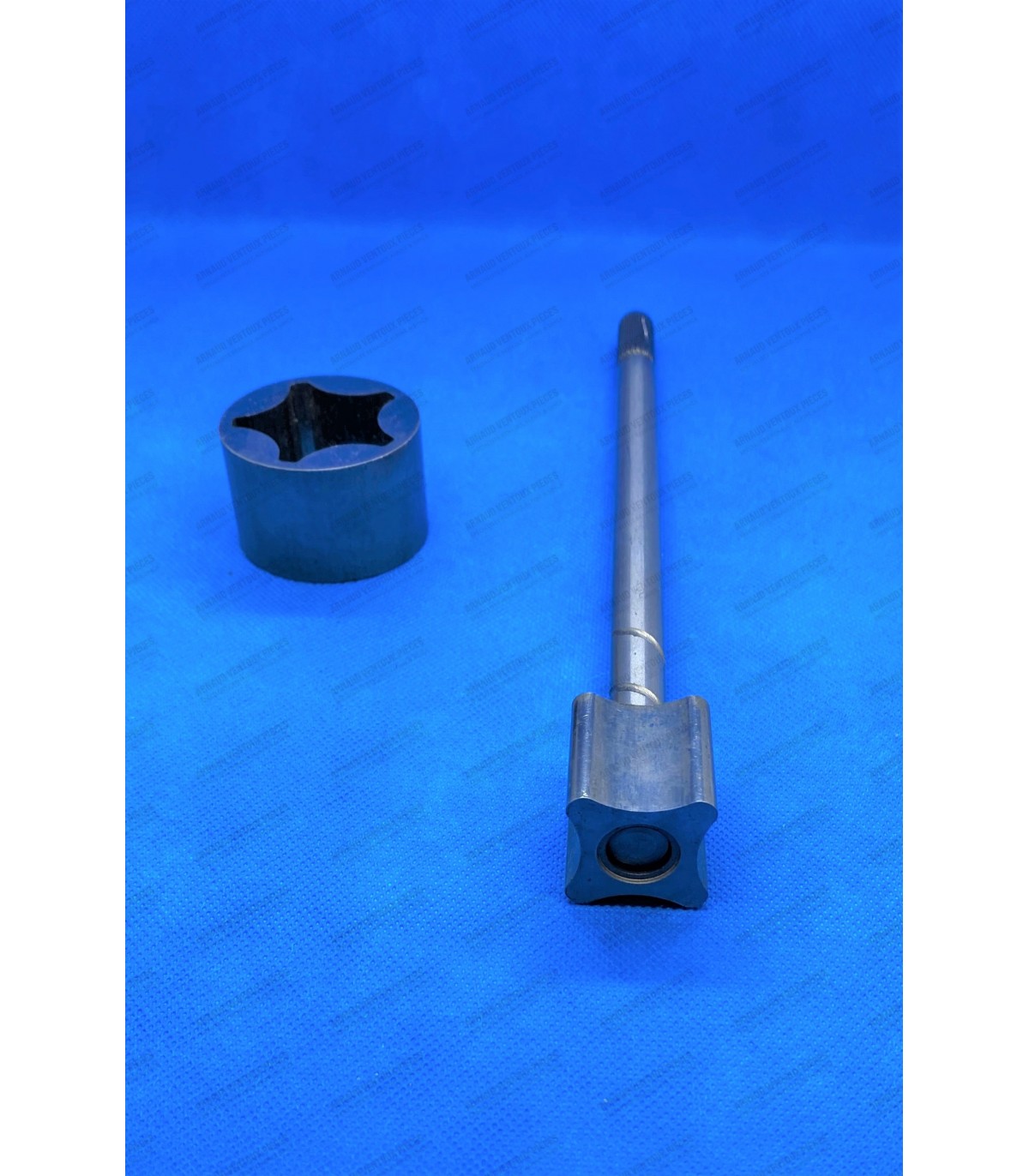

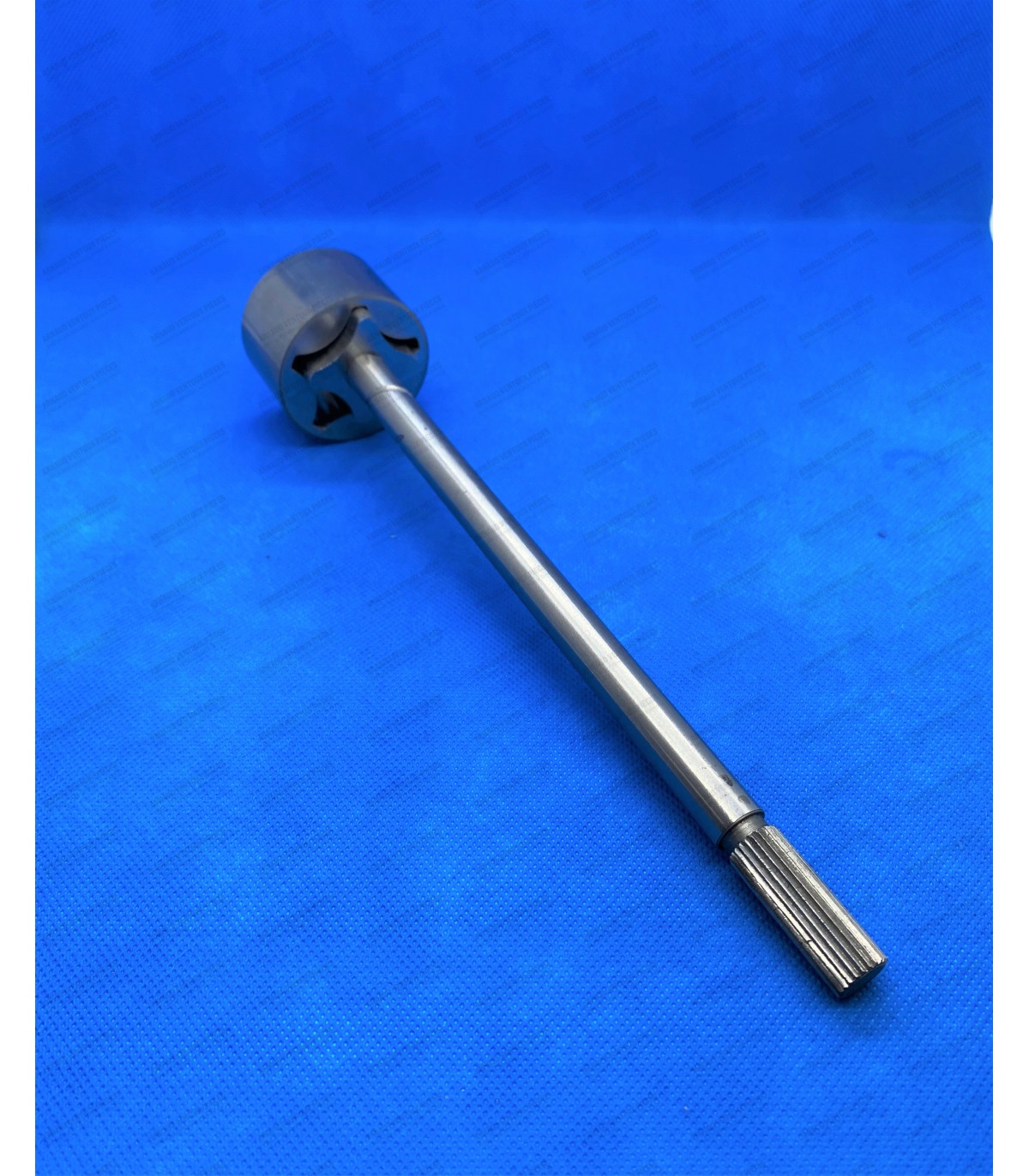

Oil pump rotor height 26mm

• Thickness : 1mm

Compatible with 1565cm³ to 1647cm³ engines (Type 807 844 and 843):

• A110 1600S/SC/SX
• A310 1600cc
• R12G / R17G
• R16.TS/TX

Segment Characteristics:

• • Segment Diameter: Ø 77.8mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Length for 4 doors

• Kit consisting of 4 large springs, 2 small springs, and 4 retaining clips.
• Kit for Bendix setup or large brake setup (Ø 48mm)
• One kit required per pair of brake calipers.
• Renault / Alpine OE Ref: 0855832300 + 0855832400 + 7701001447

For setups with cast iron caliper brackets, use two identical large springs per caliper.

For stamped steel caliper brackets, use one small spring on the inside and one large spring on the outside.

Suitable for:

• R4
• R8G (Large brake setup)
• Renault 16
• A110 (Large brake setup)
• A110 (SC / SI / SX)
• A310 4 (All models)
• A310 V6 (Early version - 3-bolt wheels)

Also suitable for replacing the M18x150 probe on the AVP4204 water pump bracket
