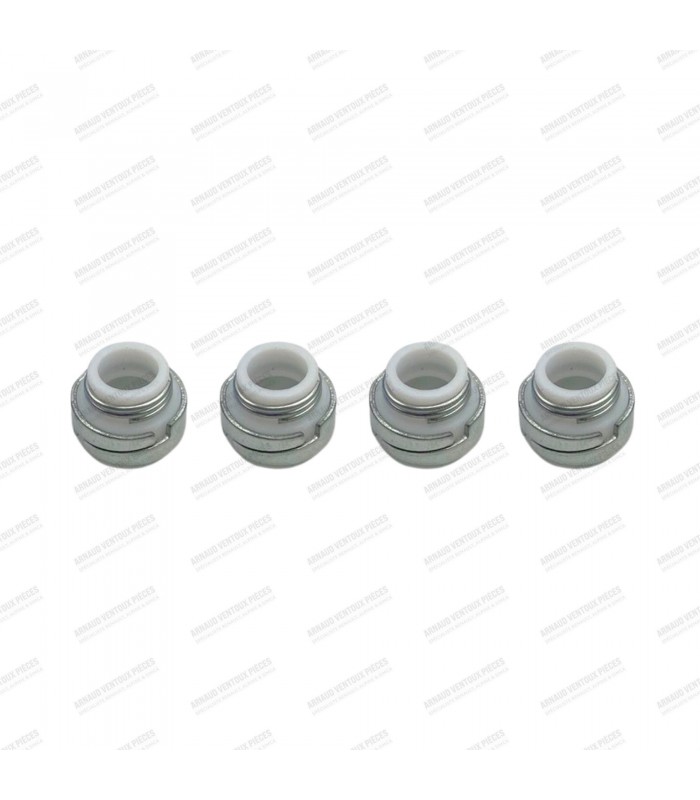

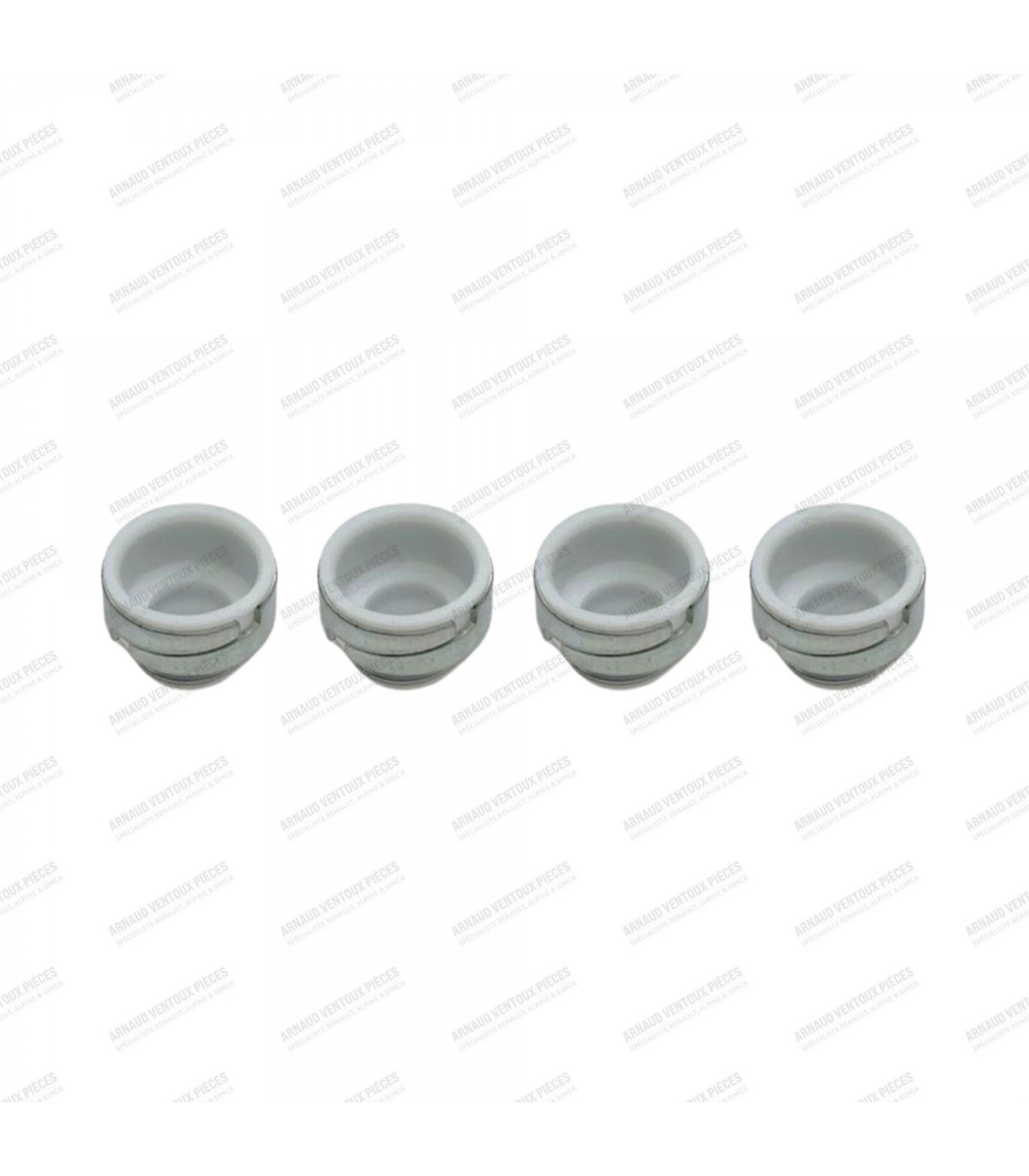

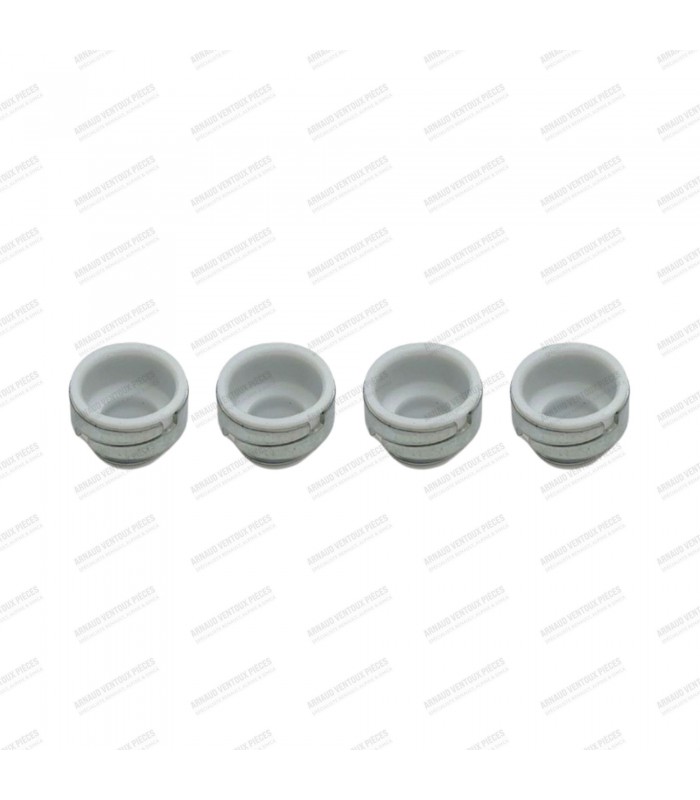

Kit of 4 intake valve stem seals (Latest generation Cléon 1108cc engine)

• • Valve guide sold individually
  • Inner diameter of the guide: Ø 7mm
  • Outer diameter of the guide: Ø 11.23mm
  • Height of the guide: 41.5mm
  • Material: Gray cast iron

Suitable for:

• • • R12 / R15: Intake and exhaust
    • A110 V85: Intake and exhaust
    • Estafette: Intake and exhaust
    • Super 5GT Turbo and R11 Turbo (C1J / C2J / C3J engine):

Intake and Exhaust

• • R4 (Cleon Engine): Exhaust

The position of the groove for securing the half-moons must be checked.

There are two mounting types for intake valves (see diagram): a square groove (BK type) and a round groove (KK type).

• Valve angle: 45°
• Keeper type (Collet): KK (x1 Round groove)
• Renault / Alpine OE Ref: 7700509771 / 7700561319 / 7701458180 / 7701458186

Suitable for:

• R4: 852cc and 1108cc engines (Cléon engine)
• Rodéo
• R5 (GTL / GTS / TL): 1108cc engine
• R8 and R8 Major (3rd mounting type): 688-02 / 688-06 / 688-09 engines
• Estafette: 1289cc engine (Type 810)
• R12 (L / TL / TS) and R15 (TL and GTL): 1289cc engine (Type 810)
• Super 5: C1E and C1C engines
• Clio 1: C1G and C3G engines
• Twingo: C3G engine
• Alpine GT4: 1289cc engine (Type 810)
• Alpine A110 V85 : 1289cm³ engine (Type 810)

The position of the groove for securing the half-moon valve keepers must be checked.

• • Valve angle : 45°
  • Keying type (half-moon): MK (x2 round groove)
  • Renault / Alpine OE part number: 7701458690

Suitable for:

• • • R4: 852cc and 1108cc engines (Cléon engine)
    • Rodeo
    • R5 (GTL / GTS / TL): 1108cc engine
    • Estafette:

1289cc engine (Type 810)

• • R12 (L / TL / TS) and R15 (TL and GTL): 1289cc engine (Type 810)
  • Super 5: C1E and C1C engines
  • Clio 1: C1G and C3G engines
  • Twingo: C3G engine
