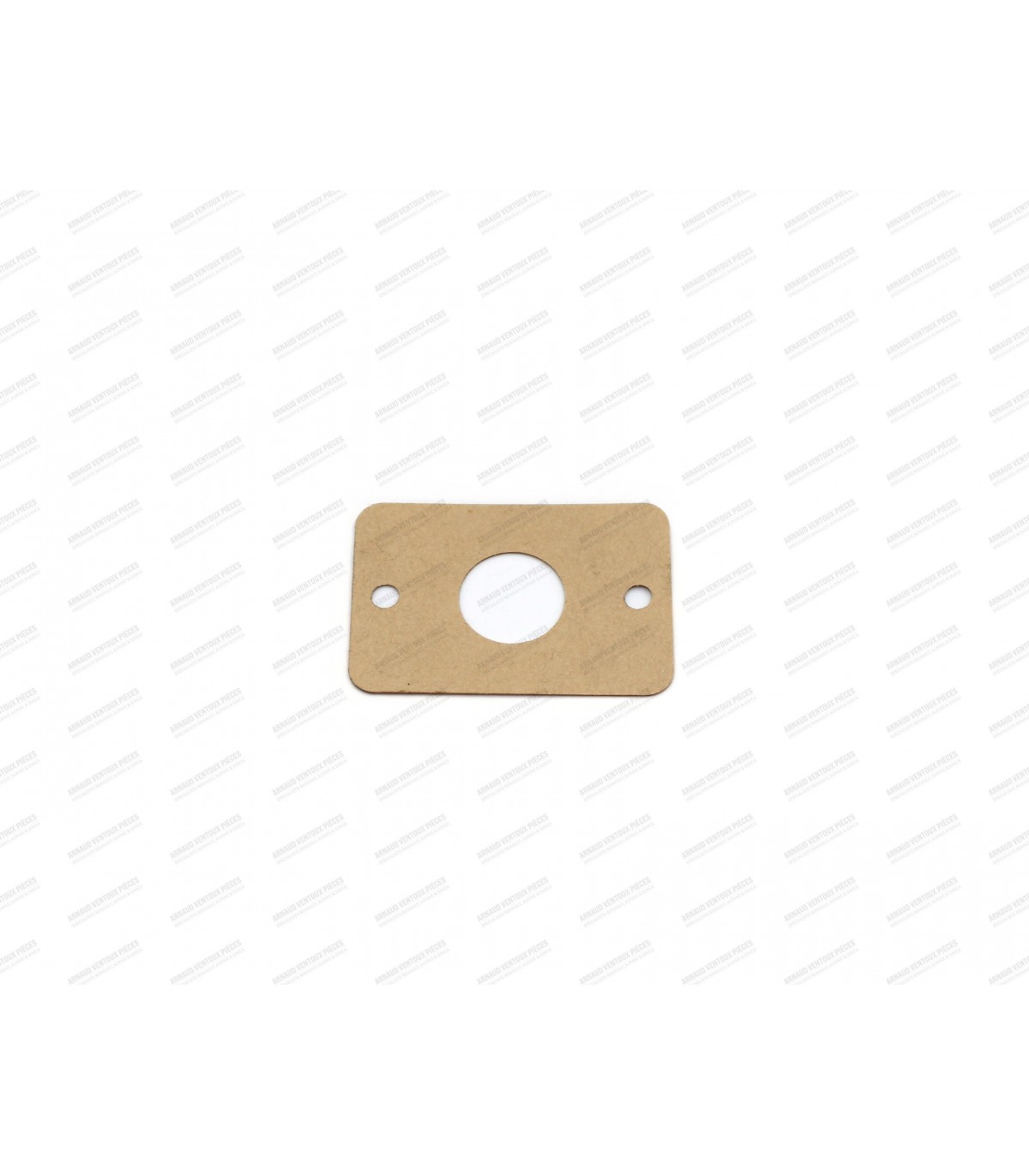

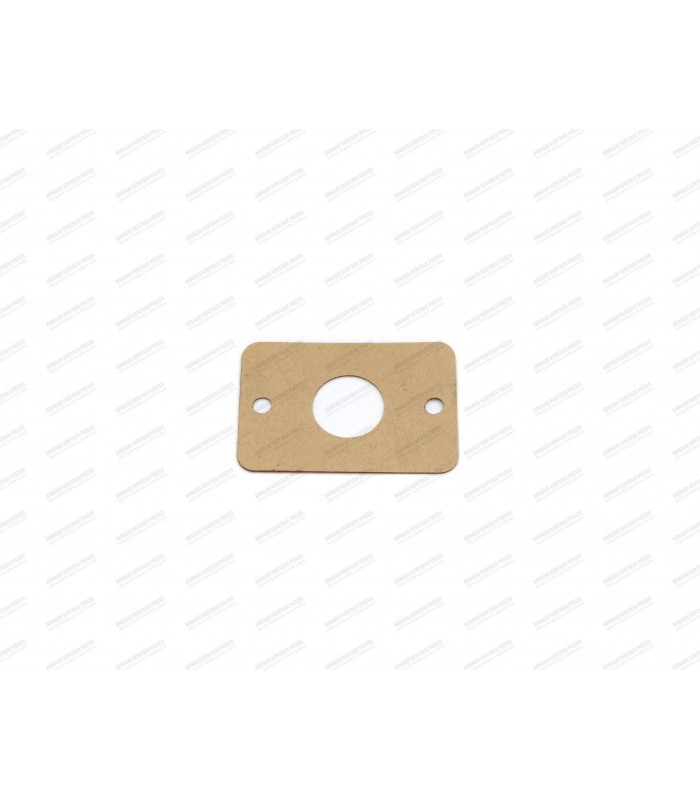

Inspection hatch gasket for WEBER DCOE 40 and DCOE 45 carburetor

• Suitable for WEBER 40DCOE AND 45DCOE carburetors
• This fits on the side opposite the throttle control

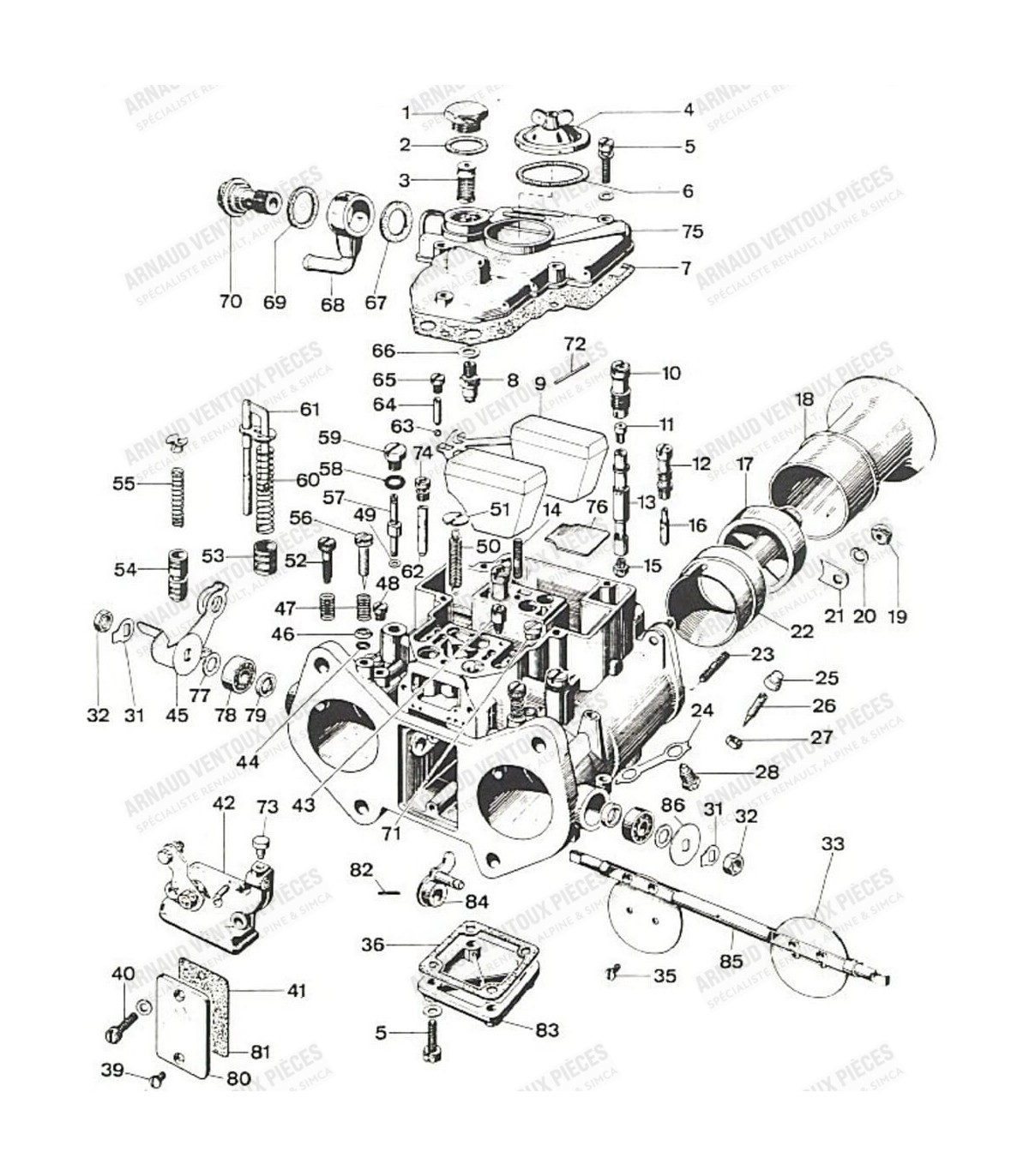

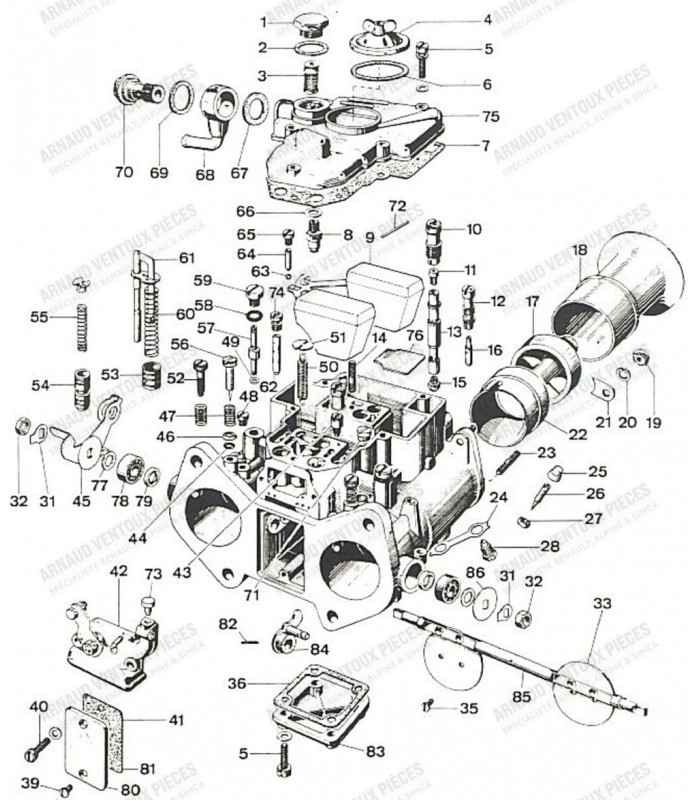

• Part number 86 on exploded view
• Also suitable for: 30 IBA, 32 IBA, 36 DCNF, 36 DCNFA, ​​36 DCNV, 36 DCNVA, 38 DCOE, 40 DCOE, 42 DCOE, 45 DCOE, 48 DCO/SP, 48 IDA.

• Suitable for WEBER 40DCOE and WEBER 45DCOE carburettors.
• Wire thickness 1 mm and wound length 33 mm.
• Number 50 on exploded view
• Also suitable for the following carburettors: 38 DCOE, 40 DCOE, 42 DCOE, 45 DCOE.

• Number 36 on the exploded view

• Countersunk head screw for throttle linkage mounting on throttle shafts with countersunk holes, for carburetors with WEBER 40 and 45 DCOE (Old generation)
• Track access cover screw for WEBER 40 and 45 DCOE carburetors (All generations)
• Sold individually (4 screws required per carburetor)
• Part numbers 35 and 39 on the exploded view

• Suitable for WEBER 40DCOE and 45DCOE carburetors
• Number 13 on exploded view
• Also suitable for Weber carburetors: 32 DATR, 32 DRTA, 32 DMTRA, 48 DCOSP, 50 DCOSP, 55 DCOSP, 38 DCNL, 38 DCN, 40 DCNL, 40 DCOM, 45 DCO3, 45 MCHH2, 48 IDA.

• Rod dimensions (see photo #2): 54.5mm (A) and 38.55mm (B)
• Standard size accelerator pump rod for Weber 40DCOE and 45DCOE carburetors
• Original Weber part number: 10410.015
• Rod supplied with the plate, but without the spring.
• Number 61 on the exploded view

Note: The rod dimensions (A and B) are calibrated according to the type of carburetor used. Respecting the rod dimensions is essential to ensure proper carburetor operation.
