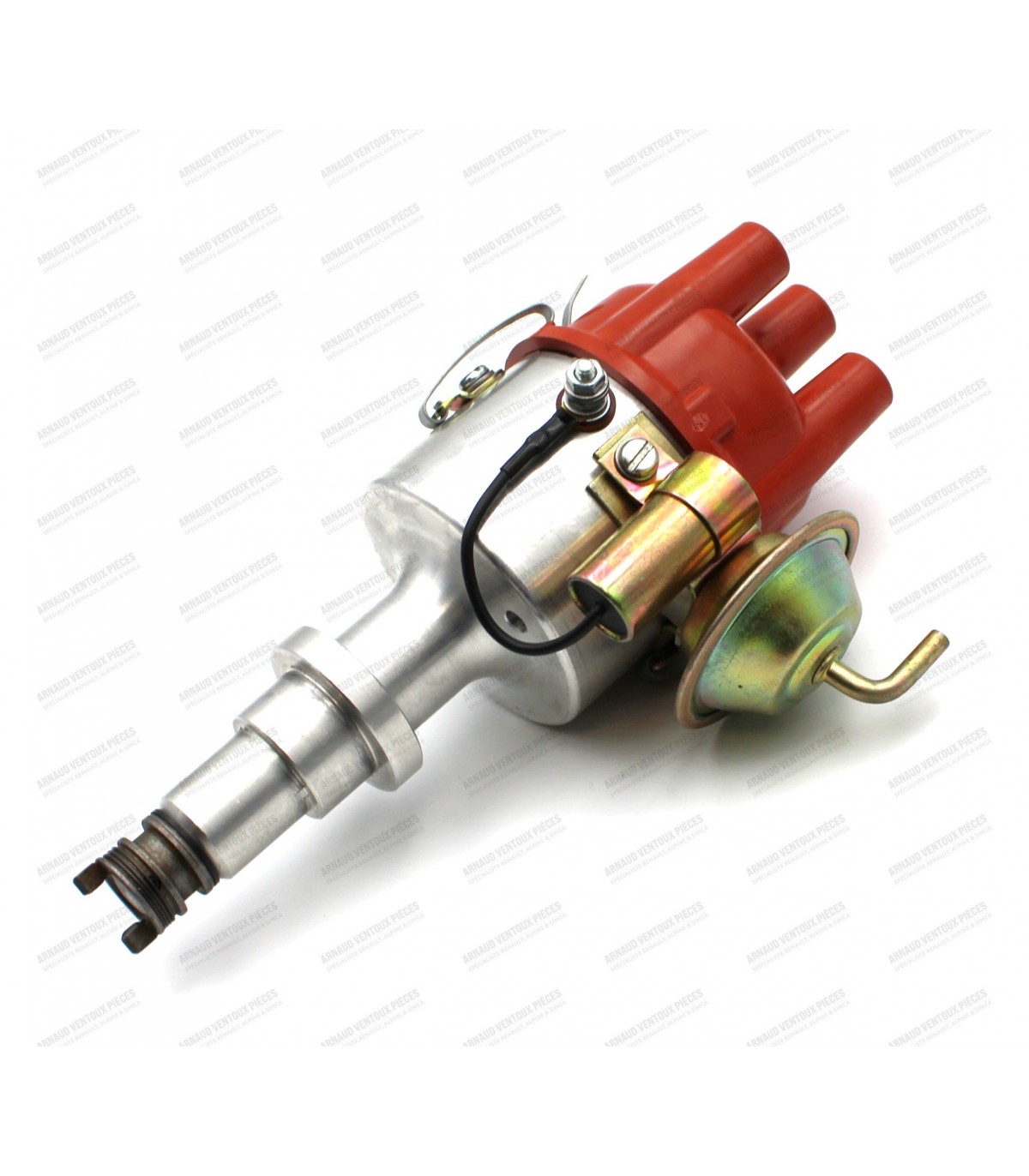

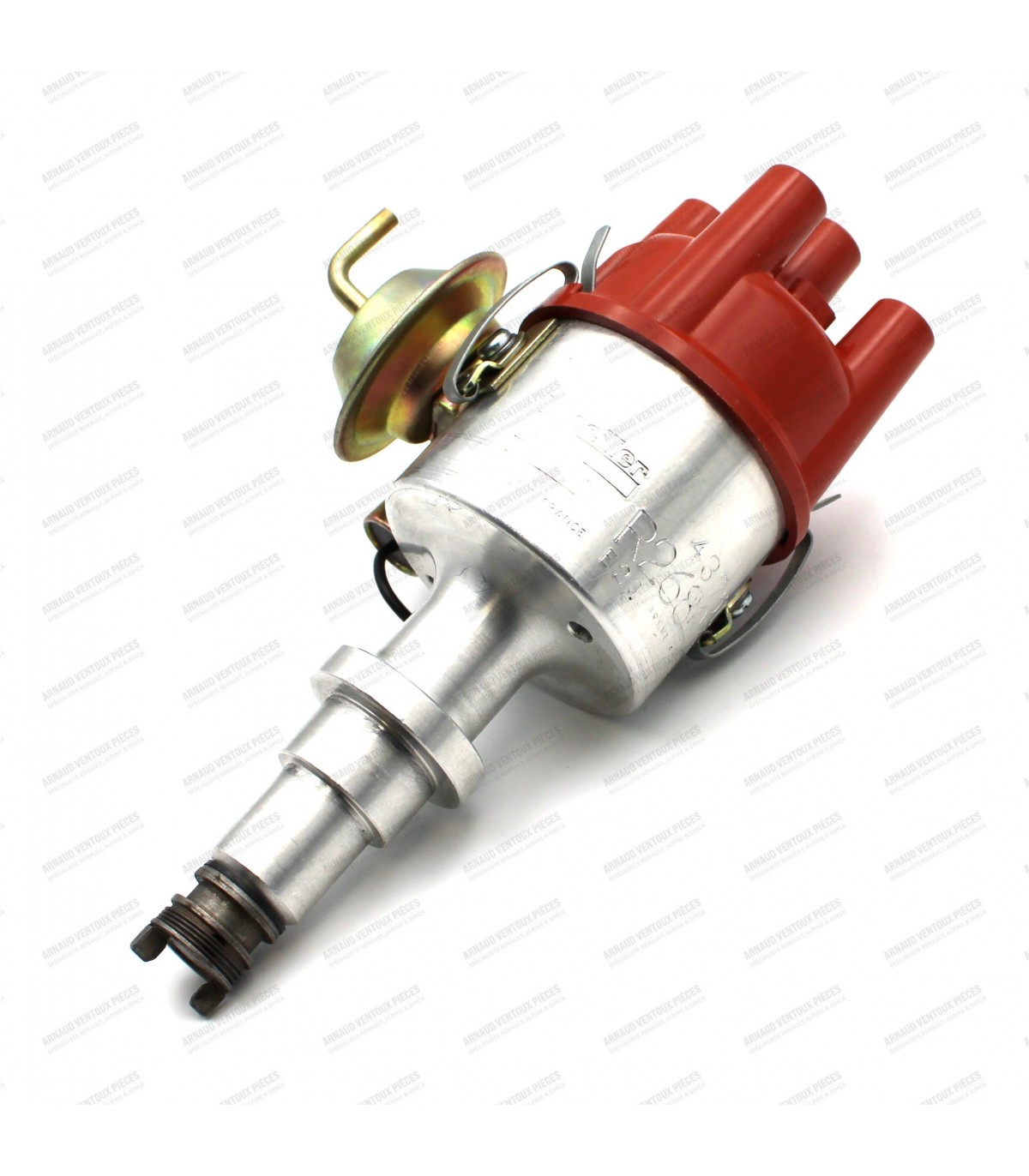

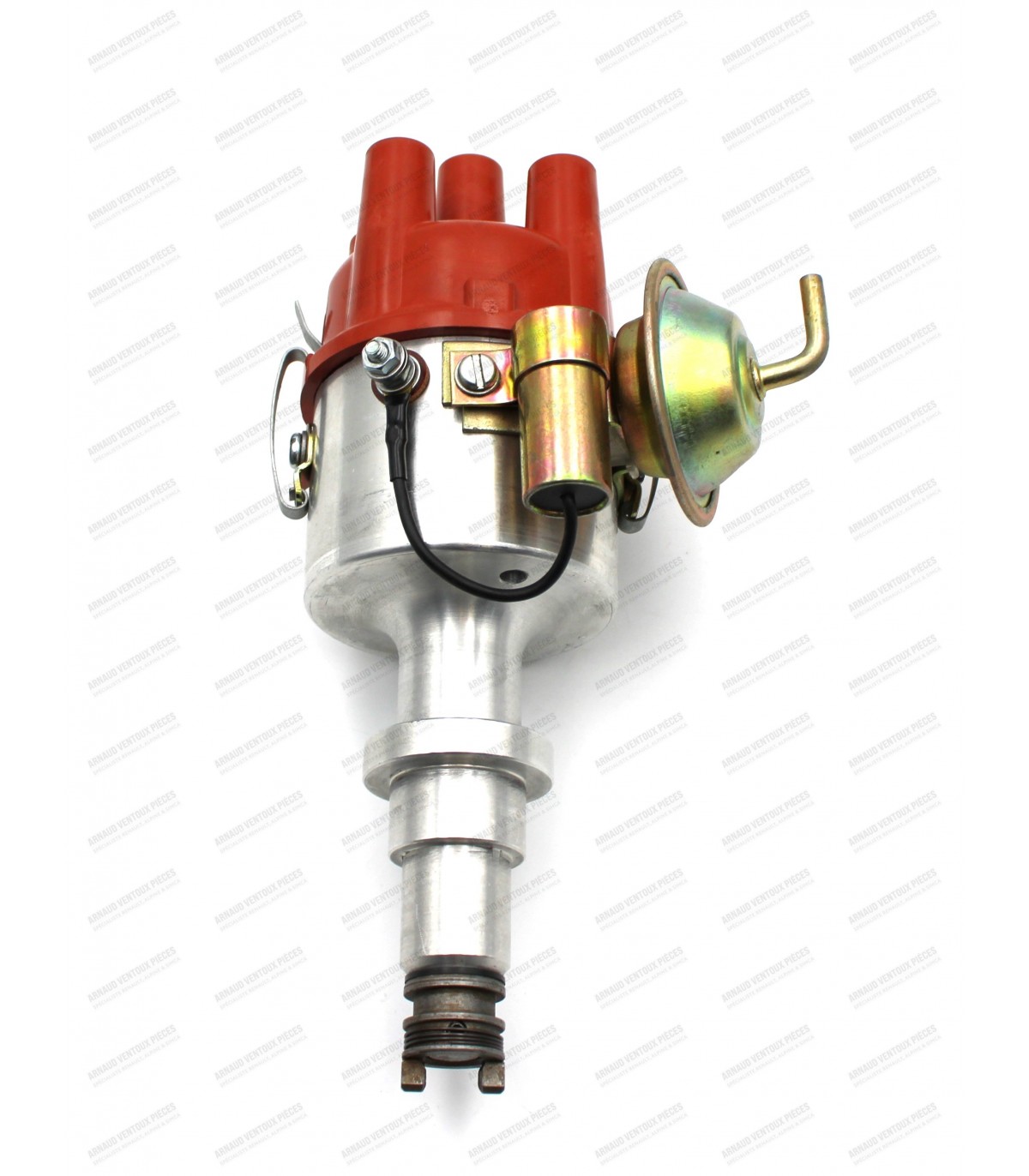

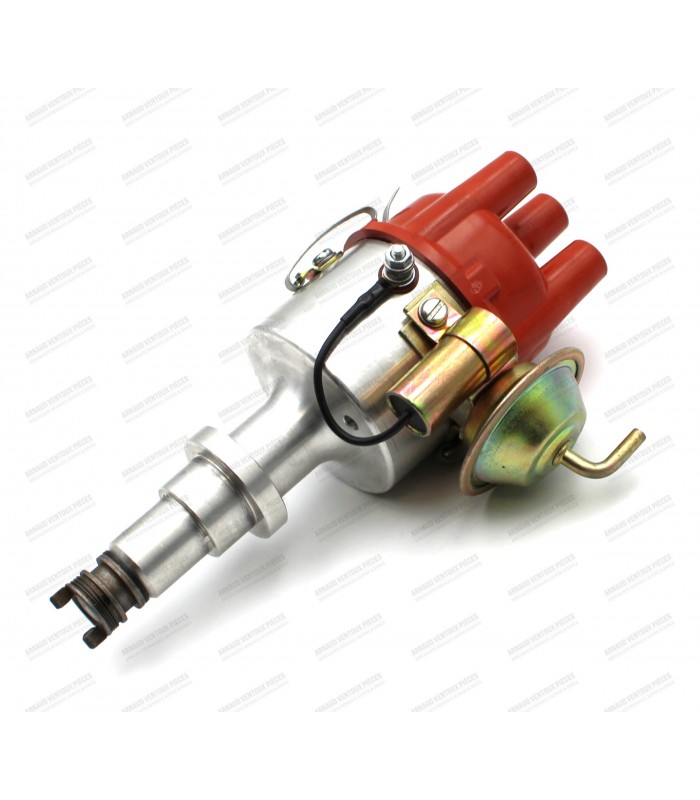

Ducellier 4375 distributor (R268 C34 curve) with vacuum advance capsule

Suitable for:

• Florida S (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• Caravelle (1962-1967): Engine 689-01 and 689-02 (1962-1967)
• R8 (1962-1967): Engine 689-01 and 689-02

Sets are supplied with the following:

• Liners (x4)
• Pistons (x4)
• Segments (x12)
• Axles (x4)

Dimensions of the different parts:

• • Bore diameter of the cylinder liners: Ø 65mm
  • Flange or top diameter of the cylinder liners (D): Ø 84.75mm
  • Base diameter of the cylinder liners (A): Ø 75.48mm
  • Height including skirts (overall) of the cylinder liners (C): 135mm
  • Height from the top of the cylinder liner to the base seal area (E): 94.80mm
  • Shaft dimensions: Ø 18x57mm (Cirlip-free mounting)
  • Ring thickness: 2mm / 2mm / 3.5mm (Fireproof/Sealing/Scraper)
  • Base seal type: Paper gasket

Piston mounting direction: An arrow drawn perpendicular to the piston axis is marked on the top of the piston. It must be oriented in the direction of engine rotation during the connecting rod's downward stroke (see manufacturer's instructions or diagram).

It is essential to check the ring end gap of each piston ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120° intervals.

Lift Features:

• Double-acting gas lift
• Mounting center distance: 595mm
• Lift stroke: 250mm
• Mounting eye diameter: Ø 8mm (x2)

Lifts must be mounted with the rod at the bottom, with the case or hood closed.

In most cases, it is not possible to compress the lift by hand due to its force.

Fuel filter with metal cartridge, ideal for replacing plastic filters, because it's more durable.

• Inlet and outlet diameter: Ø 8mm
• Cartridge body diameter: Ø 55mm
• Filter cartridge length: 78mm

The central unit is connected as follows:

• The 12V power supply (+ battery) wire on the "X" or "+" terminal
• The Switch or stalk control wire on the "L" or "Z" terminal
• The repeater indicator light wire (LED) on the "P" terminal

Length: 60mm

Possibility of adaptation on other engines without oil filter
