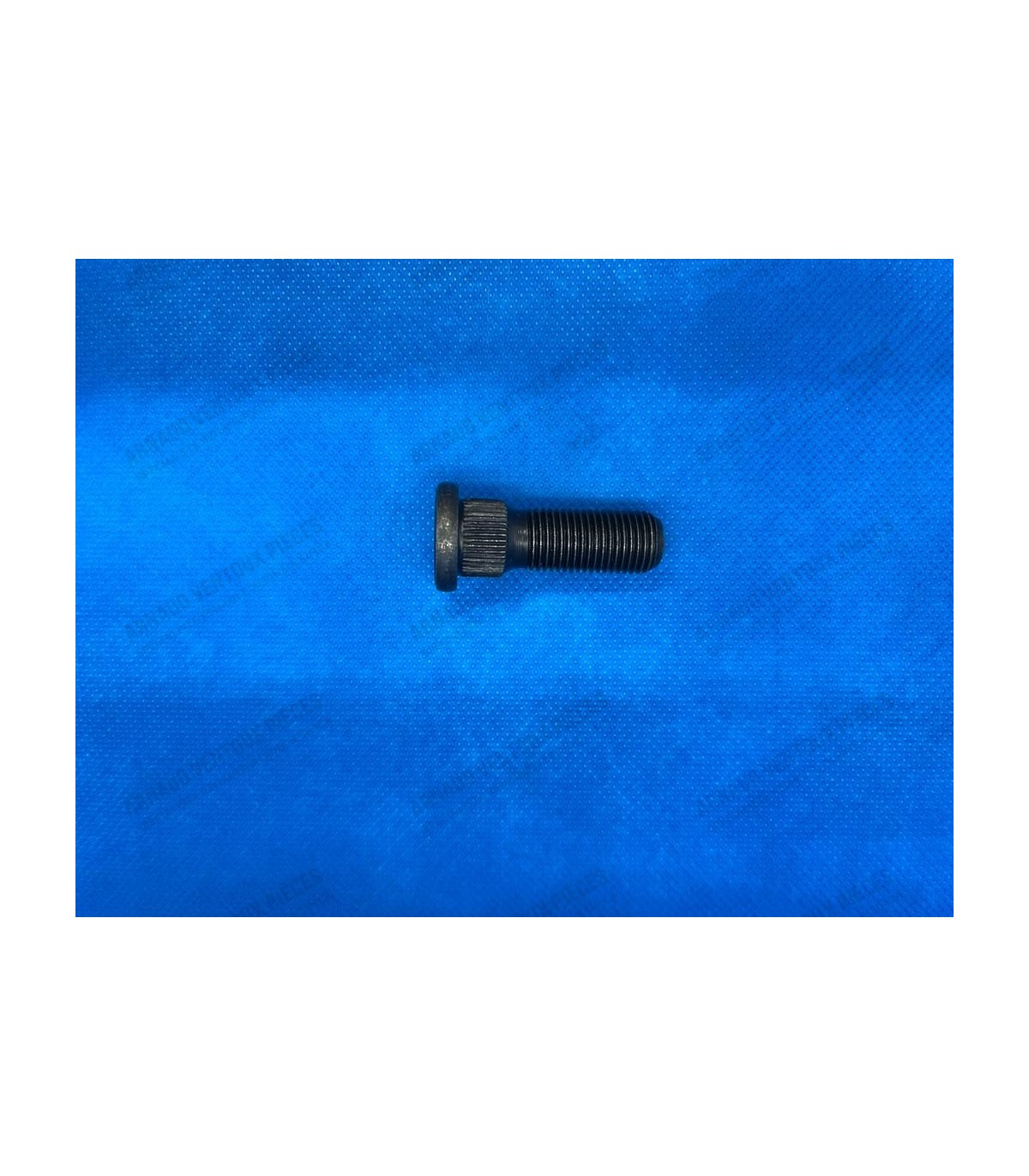

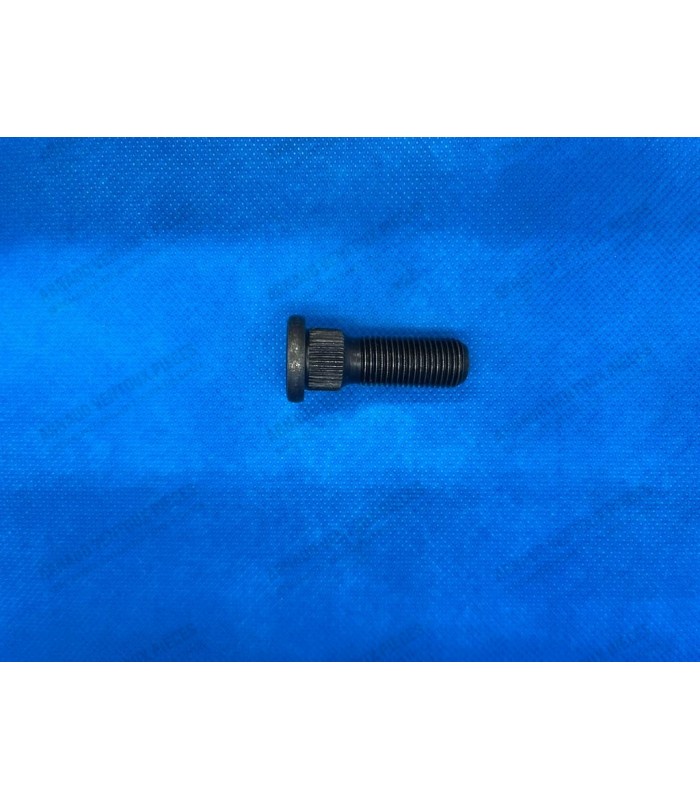

Front/Rear Wheel Stud - M12x125 Length 36mm - Ref 0556059500
Reference:
8325
Stud Dimensions:
- Stud Thread: M12 (1.25 Pitch / Class 10.9)
- Stud Head Diameter: Ø 19.80mm
- Stud Recess Diameter: Ø 14.30mm
- Length Under Head: 36mm
- Overall Length: 41mm
Suitable for models :
- R12: All models (Rear hubs with drum brake)
- R17 TL: R1312 From #1 to 30470 (Rear hubs with drum brake)
- R17 TL: R1322 From #1 to 2450 (Rear hubs with drum brake)
- R16 TS: R1151 (Front hubs with disc brake and rear hubs with drum brake)
- R16 L/TL: R1153 (Front hubs with disc brake)
€5.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Customers who bought this product also bought:
- Female/female connection: 3/8" - 24 UNF
In stock
This brake limiter replaces the original non-adjustable rear brake proportioning valve.
The limiter is not load-dependent (it does not vary according to the vehicle's load).
Its adjustment is manual, using the calibration screw. Adjustment can be made either statically, using brake pressure gauges and referring to the manufacturer's data, or dynamically (see description below).
Limiter specifications:
- Inlet thread (x1): 3/8-24UNF (Male cone)
- Outlet thread (x2): 3/8-24UNF (Male Taper)
- Mounting Screw Hole Diameter: Ø 8.5mm
- Limiter Adjustment Range: 5 turns
- Limiter delivered unadjusted (screw loosened): Rear brake pressure limited to maximum
In stock
Suitable for:
- R4 /4L : Front Brake
- R5 : Front Brake
- R5 Alpine Atmo (1223) and Alpine Turbo (122B): Front Brake
- R8: Big Brake Installation Front Brake
- R12 (All models) : Front Brake
- R15 / R16 / R17 (All models): Front Brake
- A110 : Big Brake Installation Front Brake
- A310.4 / A310 V6 (Pre-1980) : Front Brake
Brake pads with a retaining stop (B in the diagram) must be installed with this stop positioned towards front (direction of wheel rotation)
In stock
- Primary winding resistance: 3.1 ohms
- Secondary winding resistance: 9200 ohms
- Coil compatible with electronic ignition kits ref. AVP4798 and AVP4799
In stock
In stock
