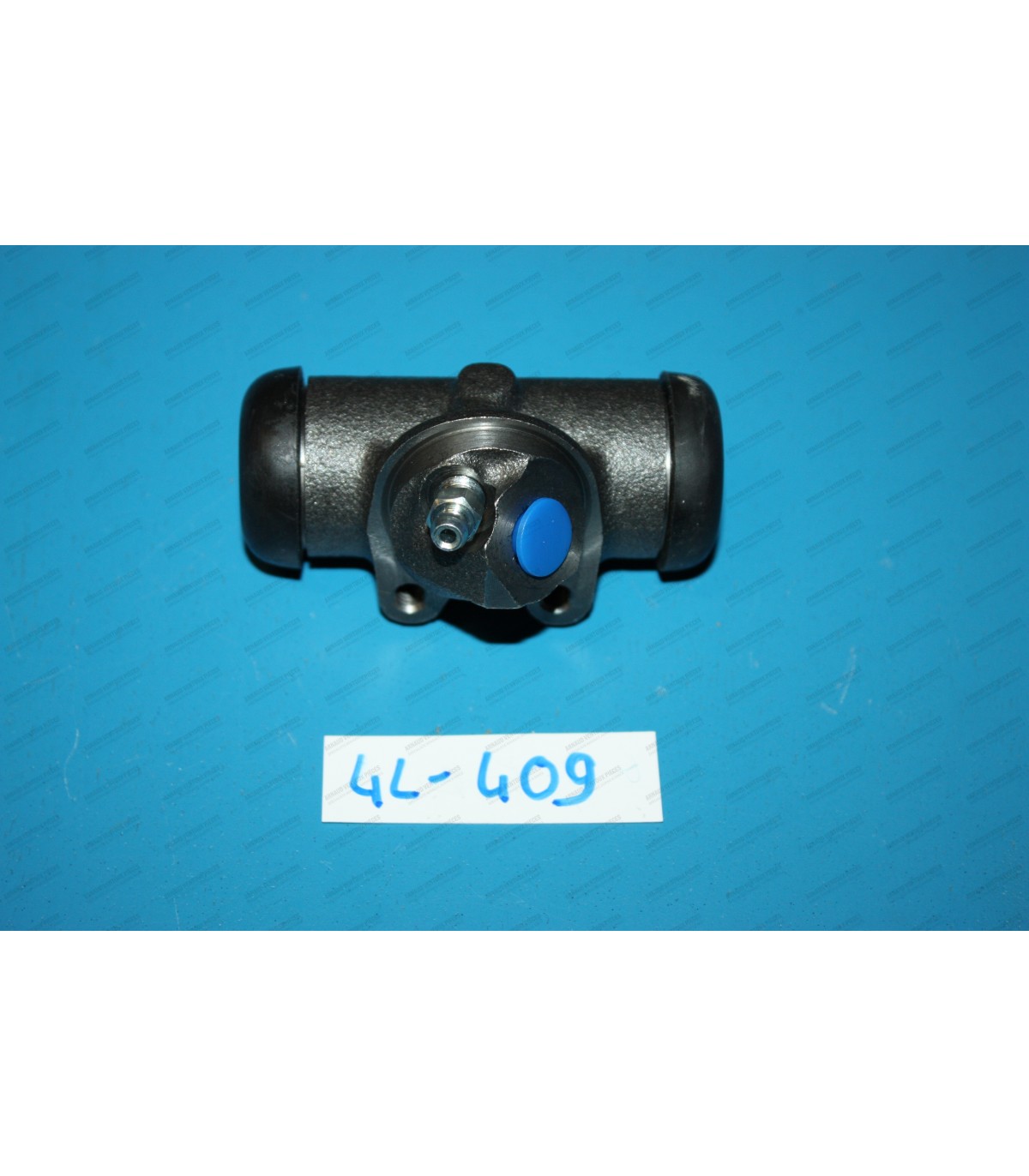

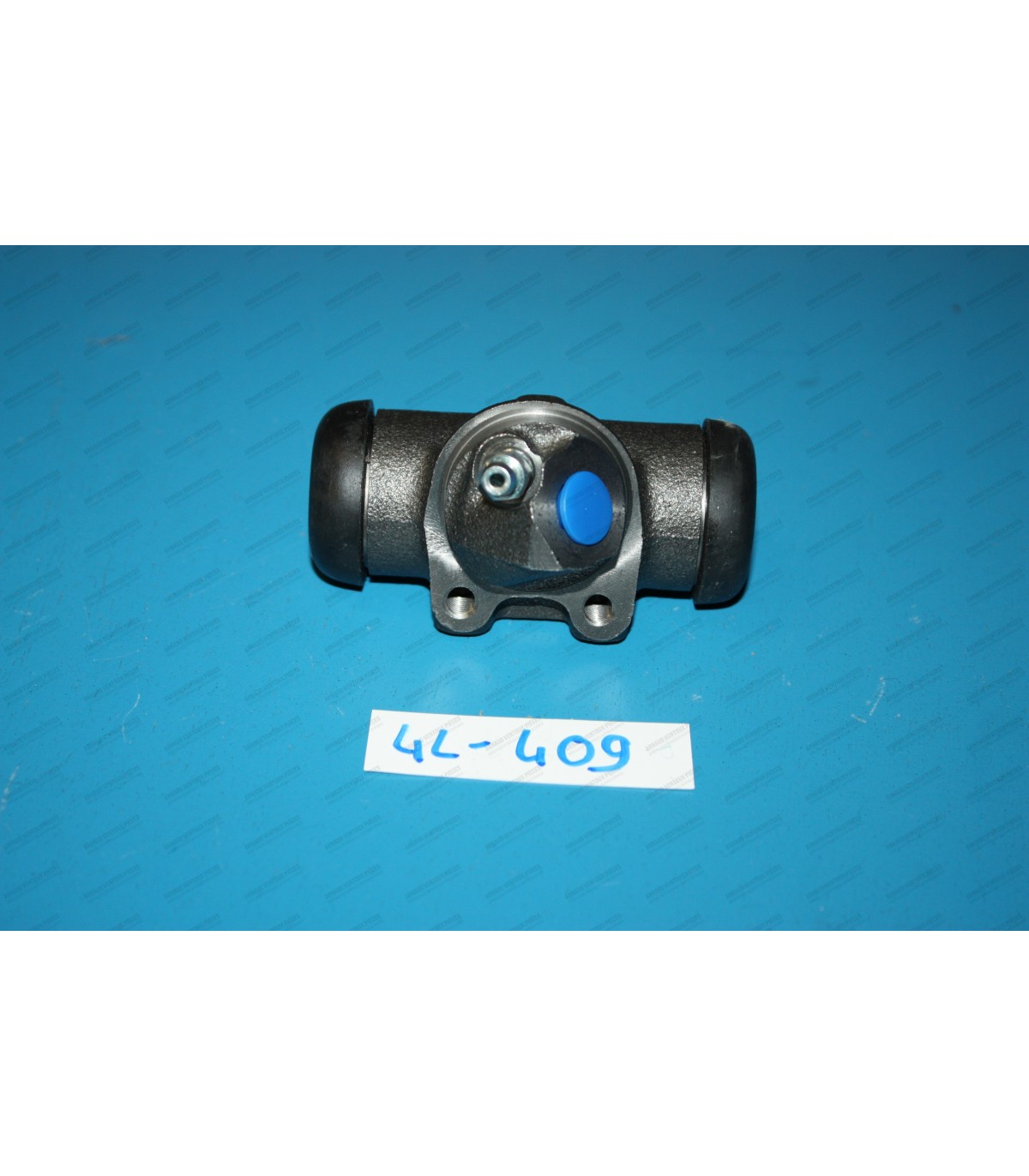

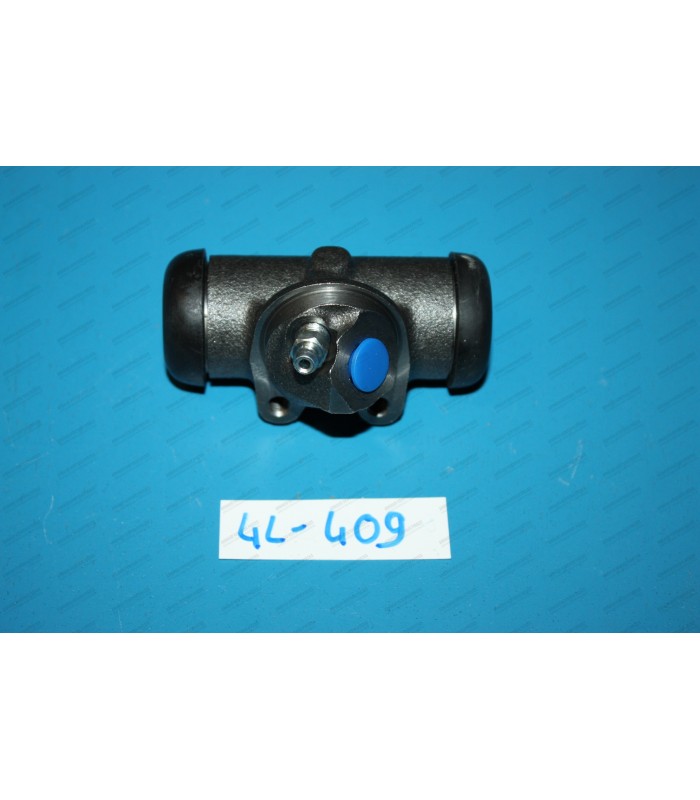

Front Left Wheel Cylinder Ø 23.8mm

Suitable for:

• R4 (R1120): From chassis no. 954001 to the end
• R4 (R1123): From chassis n°627132 to n°2012576
• R4 (R1126): From the beginning to chassis no. 655996
• R4 (R1128): From the beginning to chassis no. 60549
• R4 (R2106): From chassis n°24877 to n°246451
• R4 Van (R2370) / (R2391) / (R2392)

• R5 (R1120):From start to chassis #116482
• R5 (R1221):From start to chassis #197823
• R5 (R1222):From start to chassis #1020450
• R5 (R1223):From start to chassis #21094
• R5 (R1224):From start to chassis #261223
• R5 (R1225):From start to chassis No. 219268
• R5 (R2381):From start to chassis No. 6001
• R5 (R2382):From start to chassis No. 38121

Original OE Ref: 7701450589 (Left) + 7701450588 (Right)

• Slanted hose outlet: Ø 3/8" - 24UNF (Ø 9.52mm)

• Kit to be used with a coil of primary resistance between 2.5 and 3.5 ohms
• Compatible with coils AVP4708 and AVP4715
• Compatible for Ducellier igniter with an inner body diameter of Ø 58.8mm
• Not suitable for an igniter with externally adjusted breakers (different plate fixing points)
• 12V electronic ignition kit , with magnetic trigger which allows the elimination of the breakers and the capacitor
• Notice included
• Supplied with 3 screws for fixing the plate
• Instructions included

Segment Characteristics:

• • Segment Diameter: Ø 54.50 mm
  • Thickness of Upper Segments (Fire-resistant): 2 mm
  • Thickness of Intermediate Segments (Waterproof):2mm
  • Low ring thickness (Scraper): 3.5mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the supplied instructions.or the values ​​provided in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

Delivery in France only

• Does not absorb moisture, thus protecting brake systems from rust, which accumulates on wheel cylinders and destroys the brake pads after a few brake applications when the brakes are restarted in the spring.
• DOT 5 approved (not to be confused with DOT 5.1)

Directions for use:

• Before using this brake fluid, your system must be thoroughly bled, rinsed with rubbing alcohol, and dried.
