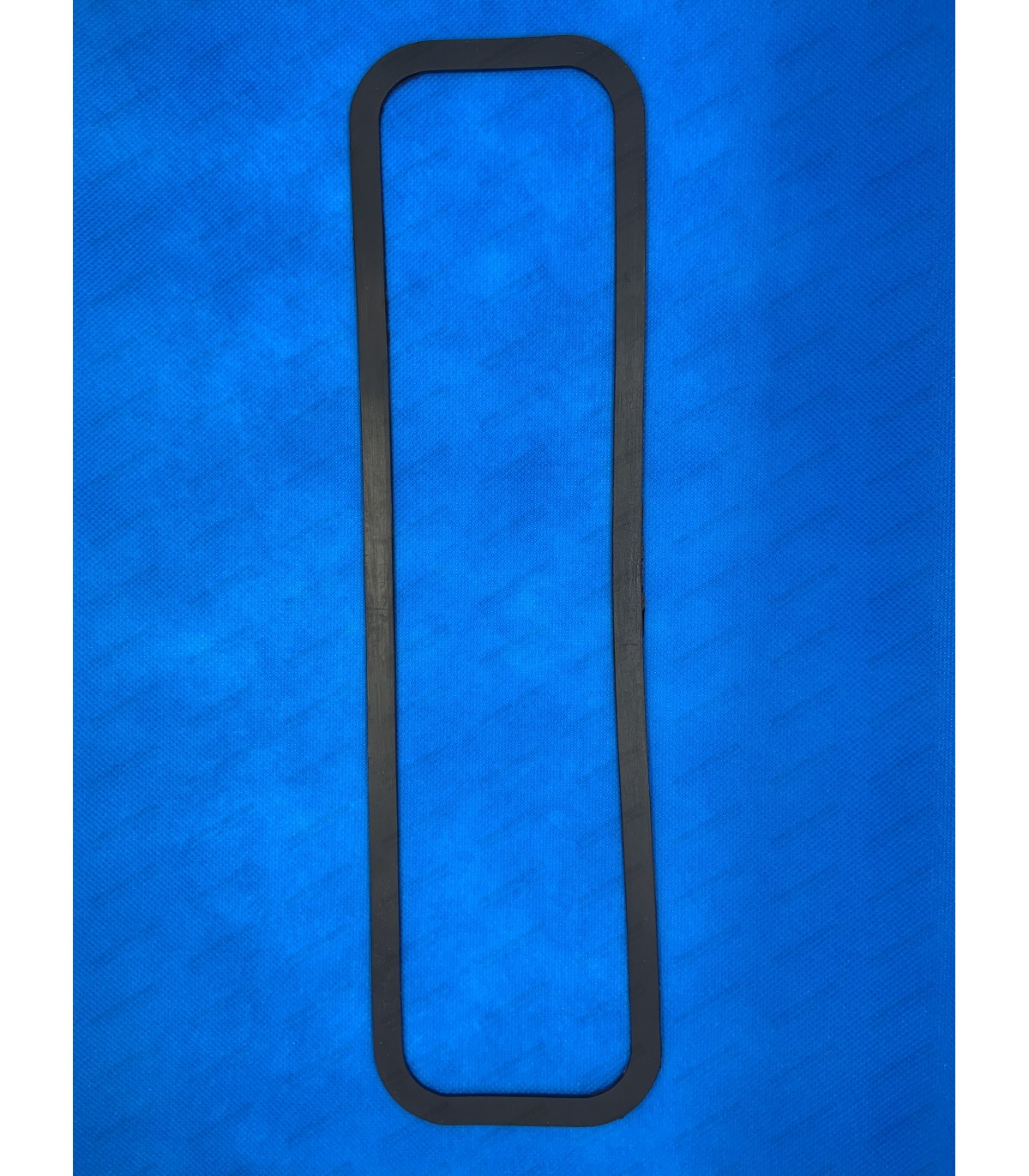

Engine rocker cover gasket

• Water pump support with thread ( M18x150 ) for mounting a thermistor or a thermal contact
• Delivered without seal
• Adaptable support for mounting on R8 Major provided that the two nozzles are made for cooling the carburettor.

• Mounting diameter of the head on the igniter: Ø 64.5mm

Suitable for:

• R5 All models (1st Version)
• R12 / R15 / R16 / R17
• A110 V85 / A110.1600cm³ (SI / SX / SC)
• A310.4
• A310 V6 (Before 1981)

Gasket dimensions:

• Inner diameter: Ø 20mm
• Outer diameter: Ø 33mm
• Height (excluding lugs): 5mm
• Recessed diameter: Ø 26mm
• Push button diameter: Ø 19.5mm

Suitable for: R4 TL (72-77)

                        R5 L (79-84) / TL GTL (79-85)

                        R5 Campus and Super Campus

Cylinder head gasket specifications:

• • Crimping diameter: Ø 59.7mm
  • Cylinder head gasket thickness:1.40mm

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.
