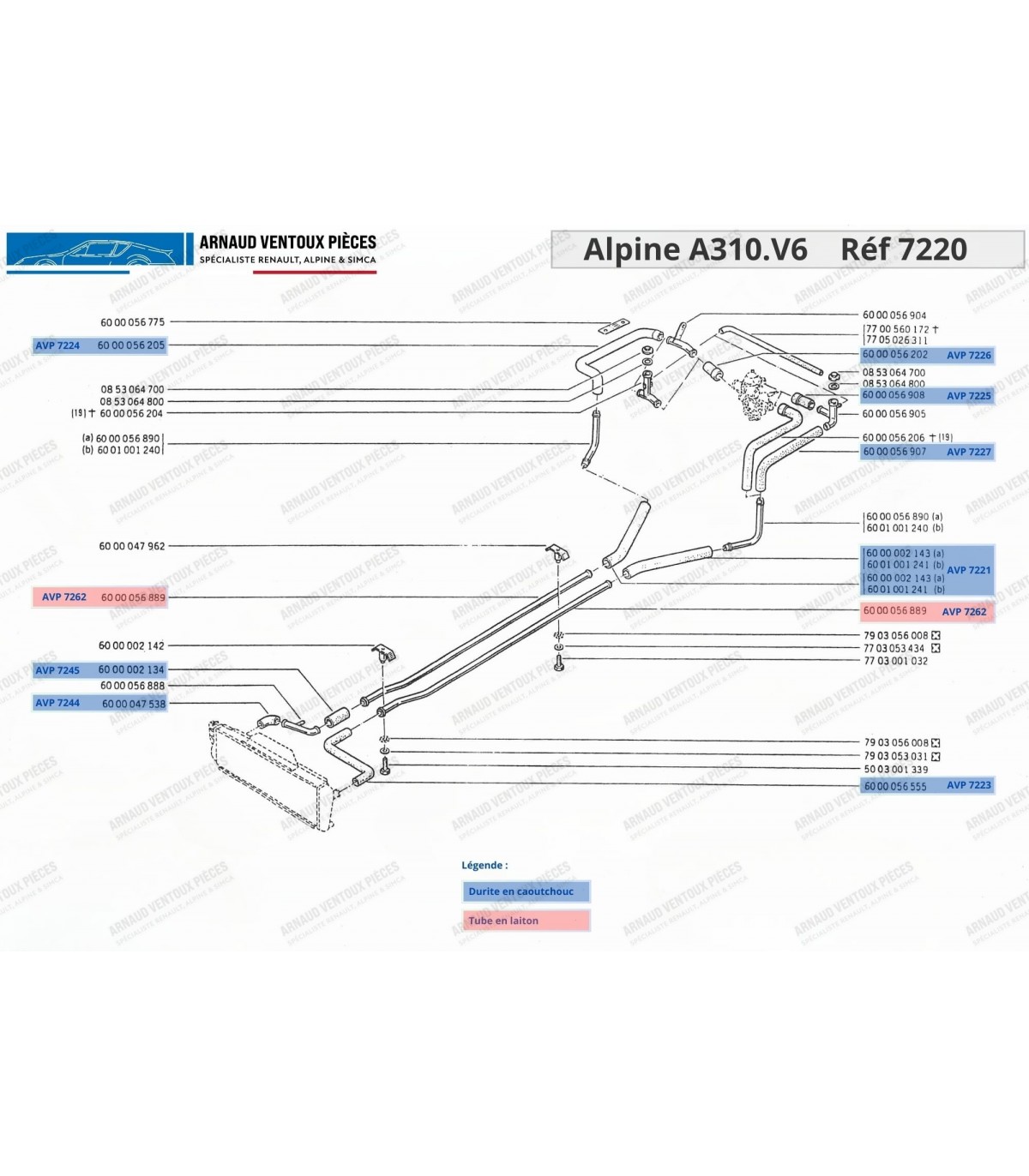

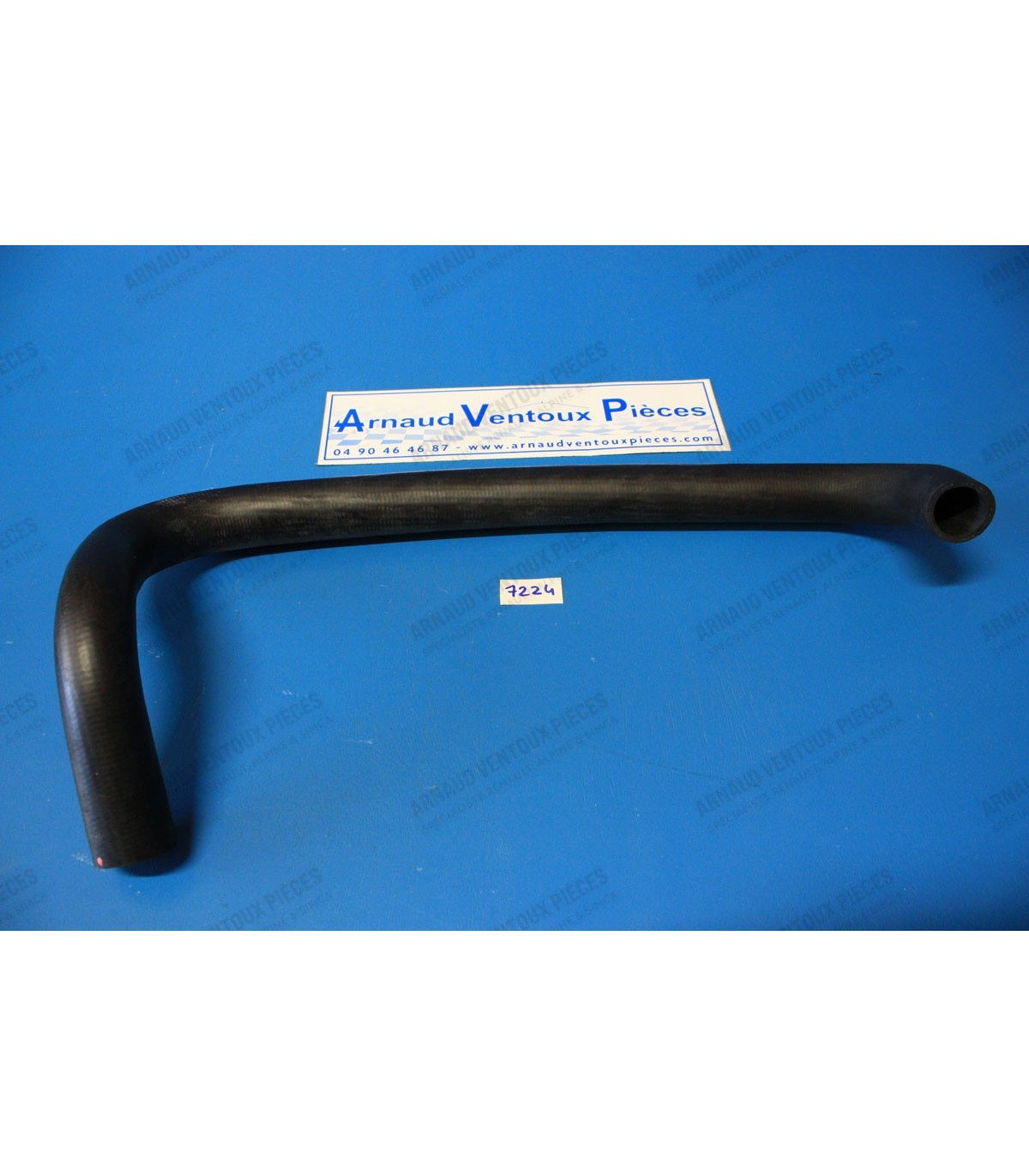

Cooling hose: In engine compartment to the right of the water pump - Ref 6000056205

Note: There are two versions of the thermostat, distinguished by the diameter of the spring seat (small or large seat).

• Spring seat diameter: Ø 29mm (small seat)
• Thermostat outer diameter: Ø 69mm
• Overall height: 55mm
• Opening temperature: 81°C
• Sold with gasket

The central unit is connected as follows:

• The 12V power supply (+ battery) wire on the "X" or "+" terminal
• The Switch or stalk control wire on the "L" or "Z" terminal
• The repeater indicator light wire (LED) on the "P" terminal

Coolant hose compatible with Alpine:

• A110 SC / Si (1600VD) and SX (1600VH): Front end and engine compartment cooling hose
• A310.4 1600VE and 1600VF (From #1 to end of series): Right and left radiator hose, front end and engine compartment
• A310 V6: Radiator outlet hoseRight radiator outlet / Tube in beam

Alpine OE Ref: 6000002134 / 6000002146 / 6000002928 / 6000047528 / 6000047538
