Cooling hose (Double 90° elbow): Left radiator outlet / Tube in beam - Ref 6000056555

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• It is possible to keep the release bearing and replace only the graphite ring if worn.
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

Coolant hose compatible with Alpine:

• A110 SC / Si (1600VD) and SX (1600VH): Front end and engine compartment cooling hose
• A310.4 1600VE and 1600VF (From #1 to end of series): Right and left radiator hose, front end and engine compartment

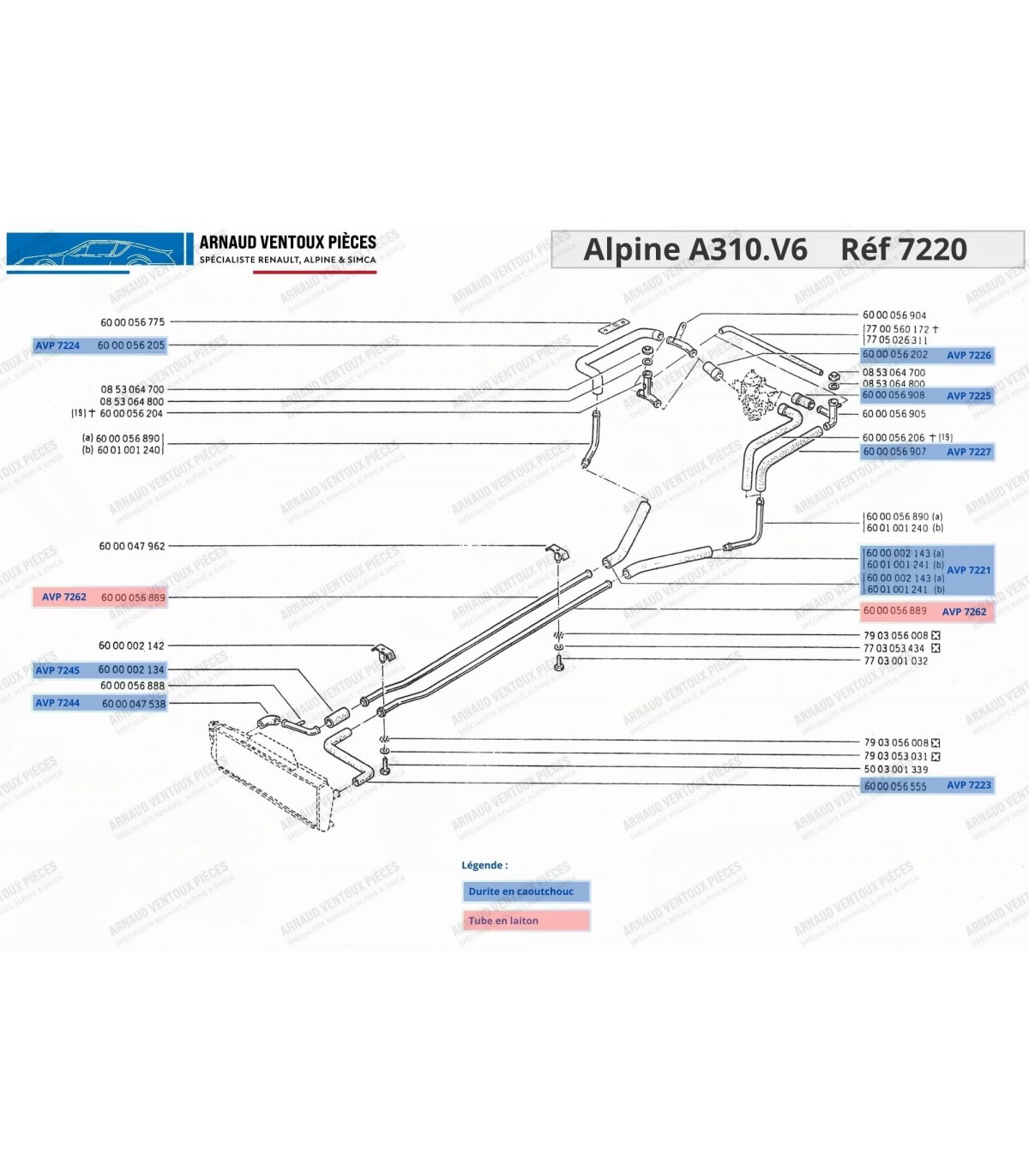

• A310 V6: Radiator outlet hoseRight radiator outlet / Tube in beam

Alpine OE Ref: 6000002134 / 6000002146 / 6000002928 / 6000047528 / 6000047538

• Bleed screw diameter: M8x100
