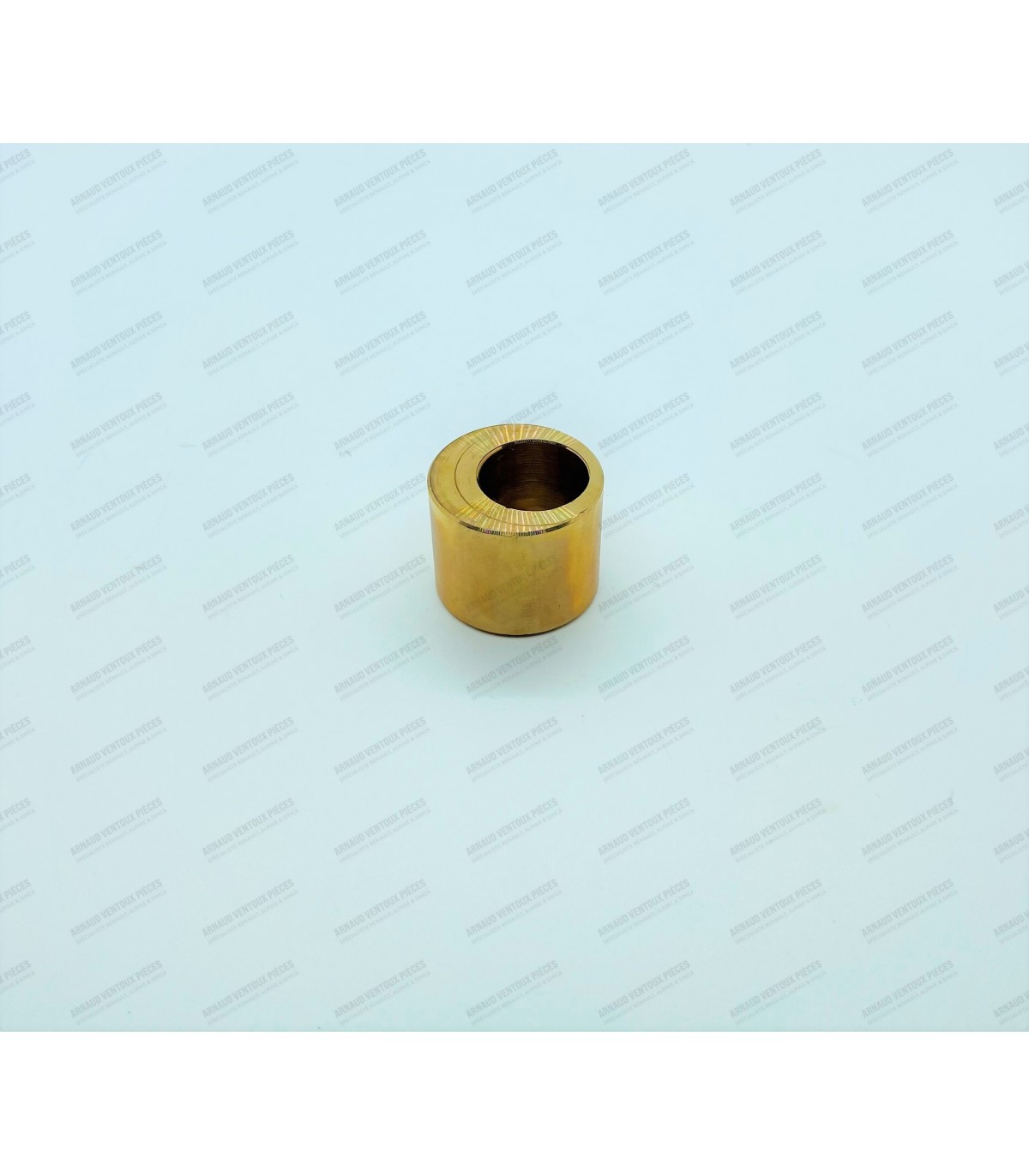

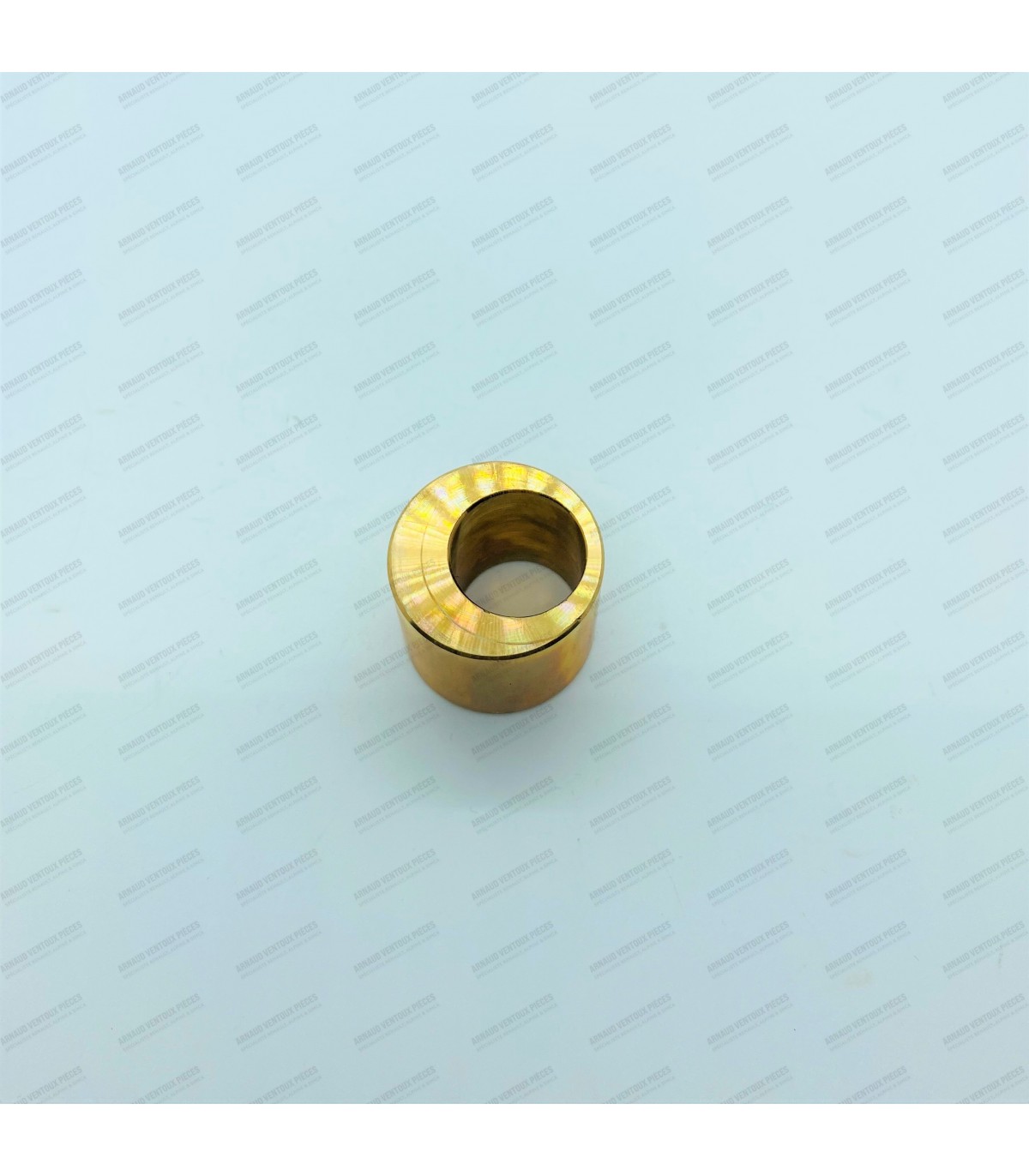

Eccentric ring in bronze for direct steering

Suitable for:

• R8 (All models) / Caravelle / Floride S: Left and Right Side Boot
• A110 (All models) / Alpine GT4: Left and Right Side Boot
• A310.4: Left and Right Side Boot
• A310 V6: Left Side Boot
• Matradjet: Left and Right Side Boot

For mounting the oil pressure sender (AVP4079) on the R5 alpine engine

Kit specifications (Tie rods / Ball joints and boots):

• Ball joint taper diameter (Steering knuckle side): Top of taper Ø 11mm / Bottom of taper Ø 12mm
• Ball joint taper stud thread diameter: M10 x 1.25 (right-hand thread)
• Ball joint stud thread diameter (into tie rod): M14 x 1.50 (right-hand thread)
• Tie rod thread diameter (into steering rack): M12 x 1.00 (right-hand thread)
• Minimum length of tie rod/ball joint assembly: 26 cm (measured from the contact point against the steering rack to the center of the ball joint stud on the steering knuckle side)
• Maximum adjustment of the tie rod/ball joint assembly: 29 cm (measured from the contact point against the steering rack to the center of the ball joint at the steering knuckle end)
• Includes: 2 steering rack boots, 2 steering ball joints (with nuts and locknuts), and 2 steering tie rods.

Suitable for:

• R8 (All models)
• Caravelle / Floride S
• A110 (All models) / Alpine GT4
• Matradjet

This adjustable steering kit replaces the original "fork-type" steering tie rods.

To install the adjustable tie rods, you must remove the steering rack eyelet bushing and replace the steering rack boots with the specific AVP4620 boots (included in the kit).

Fan trigger temperature 82°C

Fan stop temperature 72°C
