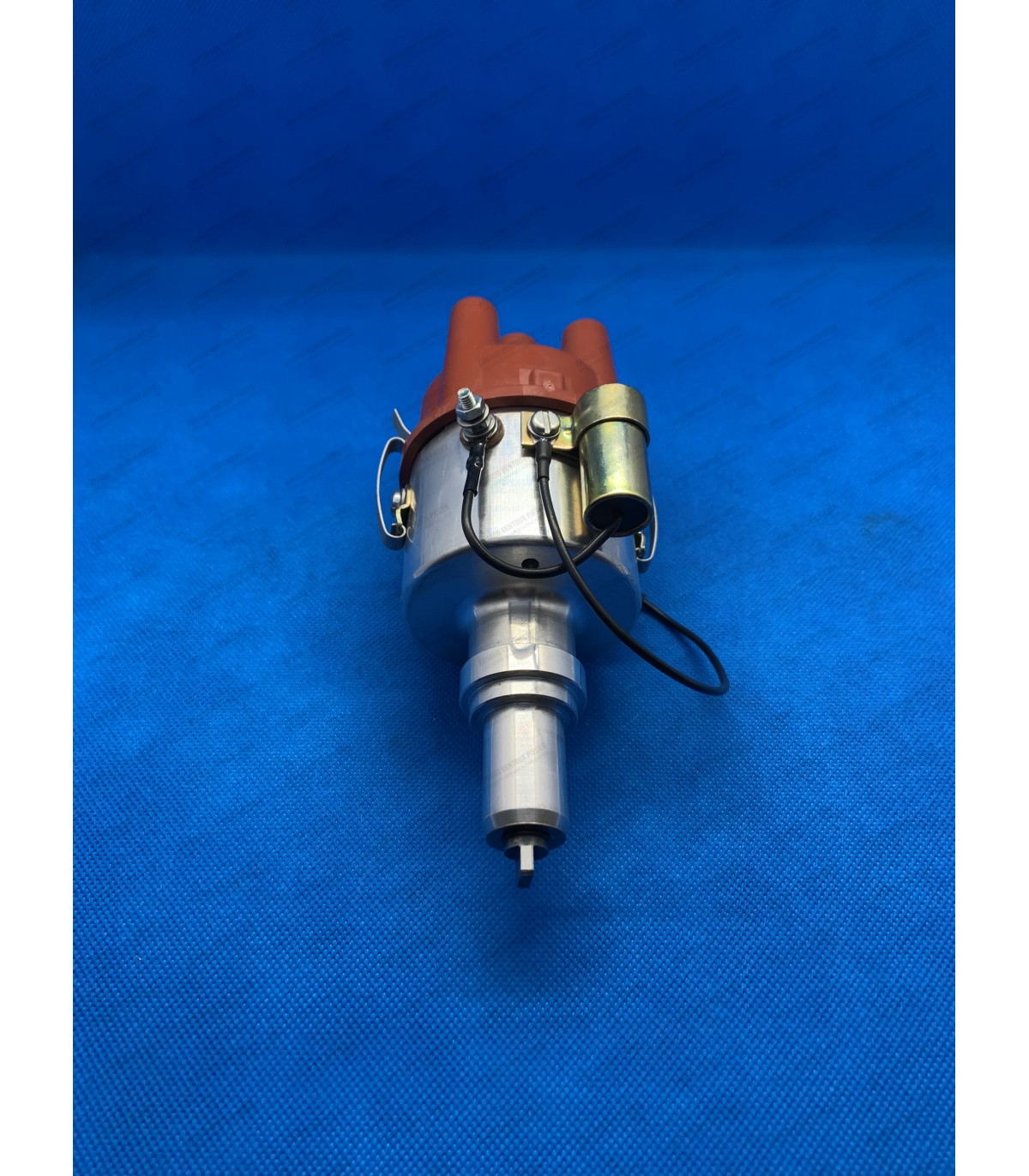

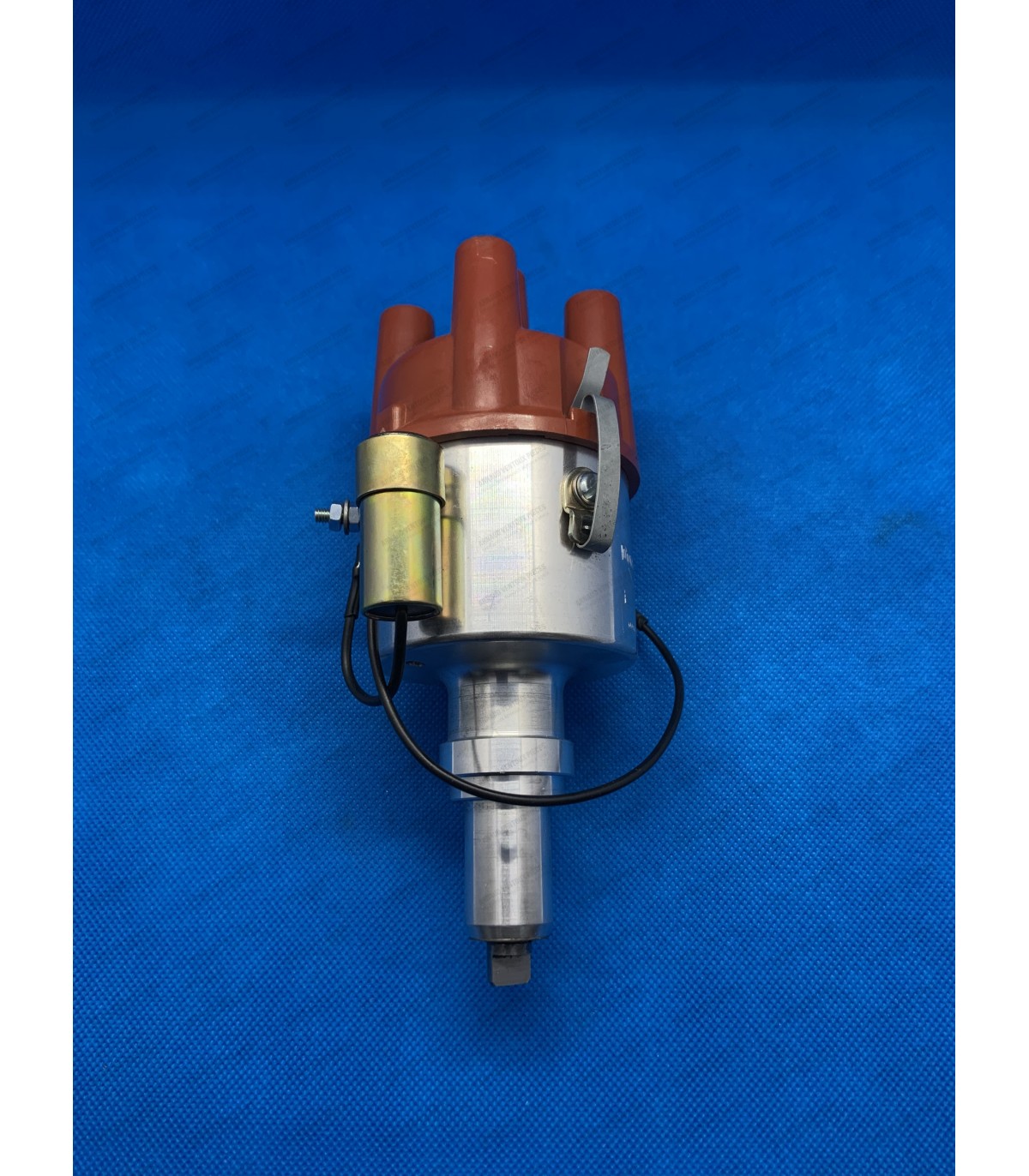

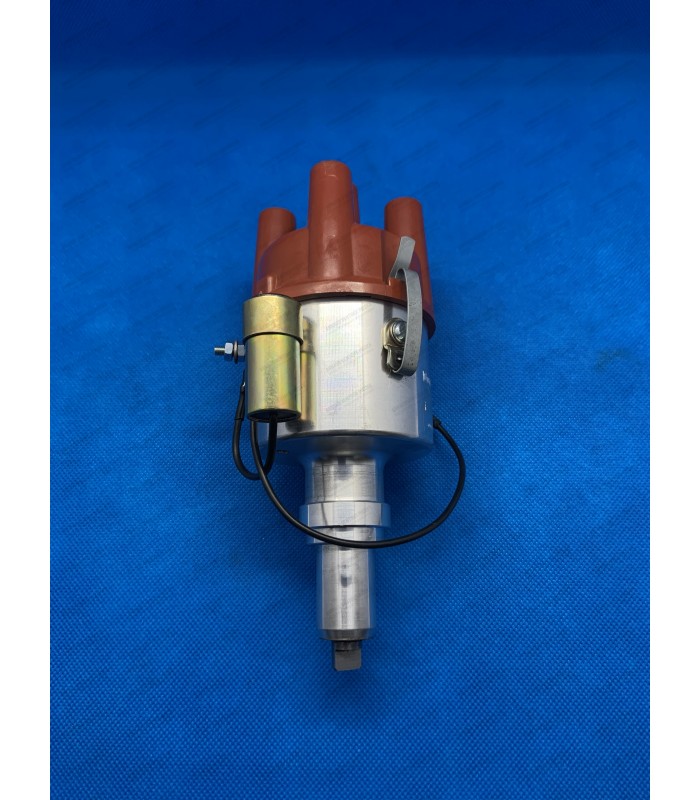

Ducellier distributor "Special Dauphine 1093 curve without depression" for prepared Dauphine engine (904cm³ engine)

Reference:

2703

This Ducellier distributor, without a vacuum capsule, uses the original curve of the Ducellier 4137A distributor, except for the absence of a socket for a mechanical rev counter.
Advance curve in "Distributor revs": 2° at 350 rpm / 5° at 800 rpm / 11° at 1400 rpm
To measure engine revs on the vehicle,multiply the revs and degrees by x2.
The curve of this distributor is adapted to SP98 gasoline.
Ideal for engines prepared with Kit 904cm³.

€296.00 (tax incl.)

Out of stock

Notify me when available

Your email address will be used to notify you when the product is back in stock.

Product Details

Reference 2703

Customers who bought this product also bought:

Reference: 1043

€16.00 (tax incl.)

In stock

Cylinder head gasket specifications:

Installation direction:

The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).

For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.

If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.

However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.

Reference: 2039

€40.00 (tax incl.)

In stock

This bushing is versatile and can be used in various applications:

Front stabilizer bar link bushing
Rear spring travel limiter rod bushing (early model)
Bushing for the connecting link between the rear lever-arm shock absorber and the axle trumpet (oil-bath lever-arm shock absorber – early model, pre-1950)
Inner diameter: Ø 9mm
Outer diameter: Ø 21mm
Width (including shoulder): 17mm / 21mm
Renault OE Ref.: 8511922
