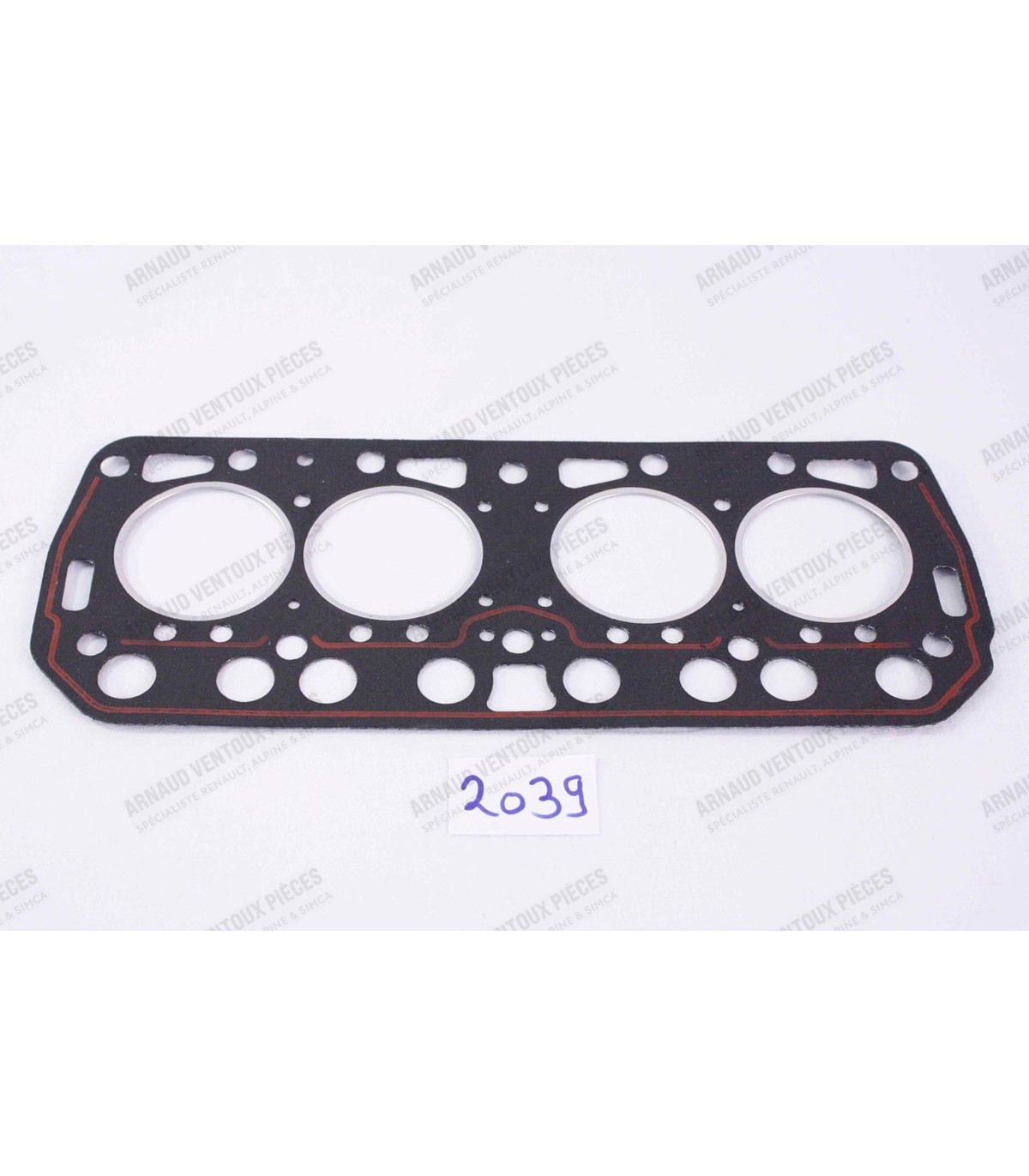

Cylinder head gasket for piston Ø 60mm (904cm³ engine)
Cylinder head gasket specifications:
-
- Crimping diameter: Ø 62.5mm
- Cylinder head gasket thickness:1.40mm
Installation direction:
The marking "Top" or "Haut" on the cylinder head gasket must be facing the Cylinder head (upwards).
For gaskets that do not have "top" or "high" markings, but have a manufacturer's part number, orient this part number towards the cylinder head.
If there are no markings (TOP, HIGH, or manufacturer's part number), the gasket does not have a specific orientation.
However, it is still necessary to check the correct positioning of the water and oil passages to ensure proper installation.
&media=https://www.arnaudventouxpieces.com/311-large_default/cylinder-head-gasket-for-piston-bore-o60-904-cc.jpg){kind=link}
With location for chrome strip
Installation orientation: The end with the two closest-spaced holes is installed on the inspection plate side (opposite the water pump).
Tube orientation: The holes must be aimed towards the valve seats at a 30° angle from the vertical.
- Tube outer diameter: Ø 14mm
- Tube length (overall): 325mm
- Material: Stainless steel
- Renault OE Ref.: 5522581 / 0555258100 / 0555465300
- Delivery in France only
- Thinner for use with paint reference: C021 - C022 - C023 - C015 - C016
.jpg)
- Screws CHC M6 (Class 12.9) x6pcs
- Slotted crowel washer Ø 6mm x6pcs
