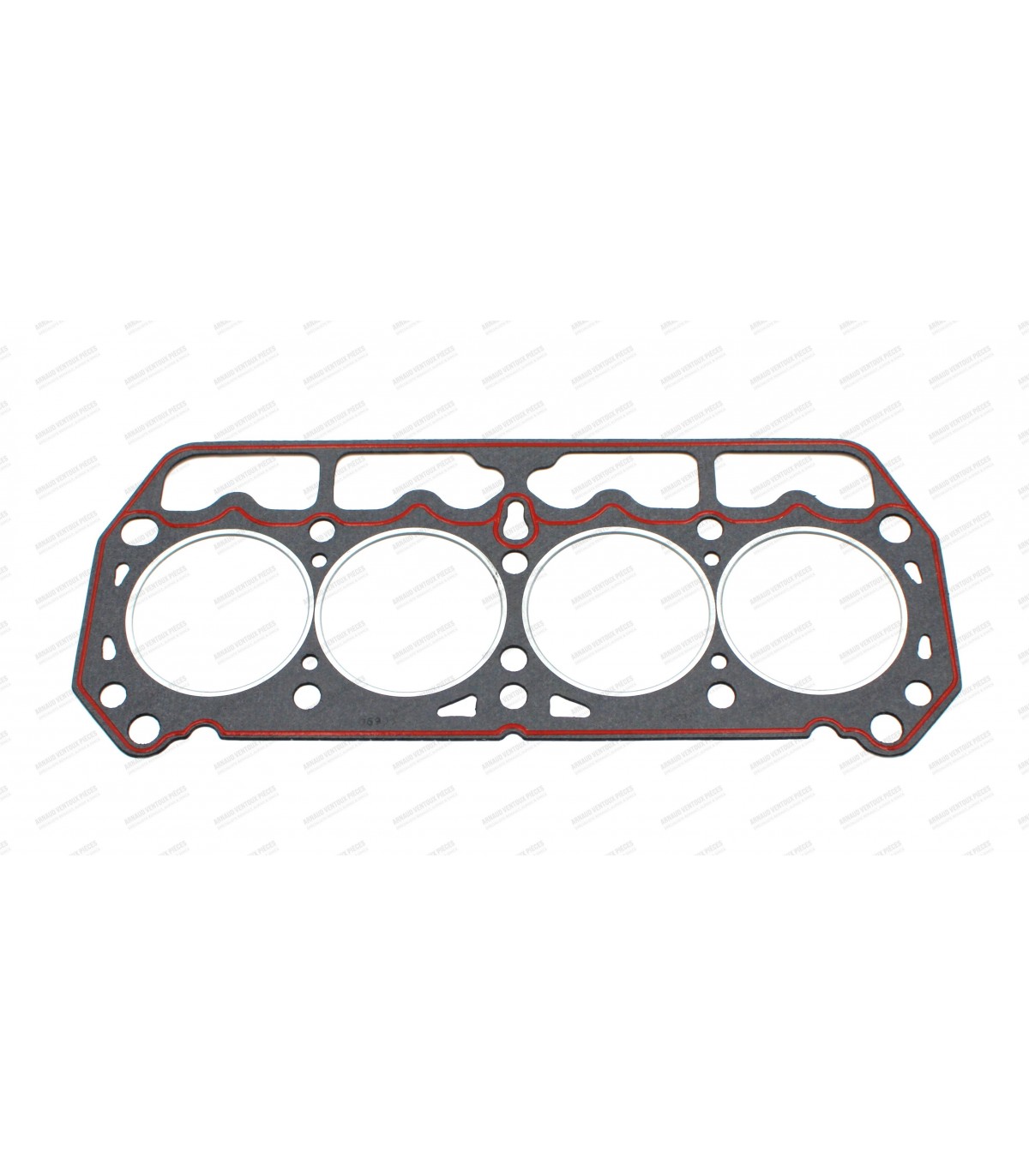

Cylinder head gasket Ø 78.5mm - R1 / R2 / R3 (Original side 1.2mm) / Rancho / Solara (1442cc)

Segment Characteristics:

• • Segment Diameter: Ø 77.5mm
  • Thickness of Upper Segments (Fire-resistant): 1.75mm
  • Thickness of Intermediate Segments (Waterproof): 2mm
  • Low ring thickness (Scraper): 4mm

It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values ​​given by the manufacturer or in the instructions provided.or the values ​​given in the instruction manual.

During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.

• This kit is suitable for various Solex 35 PHH E-4 / 35 PHH E-6 / 35 PHH E-7 / 35 PHH E-7A models
• The kit contains 2 small square diaphragms (4 holes) and 2 large accelerator pump diaphragms featuring 6 mounting holes, 2 locating holes, and a pointed tip
• Supplied with two 1.3 needle valves

Bearing Dimensions:

• Dimension: Repair Dimension (+0.20)
• Journal Diameter (A): Ø 51.77mm
• Housing Diameter (B): Ø 55.88mm
• Bearing Width (C): 18.68mm
• Bearing Width (C): 24.68mm
• Bearing Thickness (D): 2.02mm
• Smooth, lug-type bearings with grease holes (x7) and grooves (x7)
• Bearing material:Bi-metal
