In stock

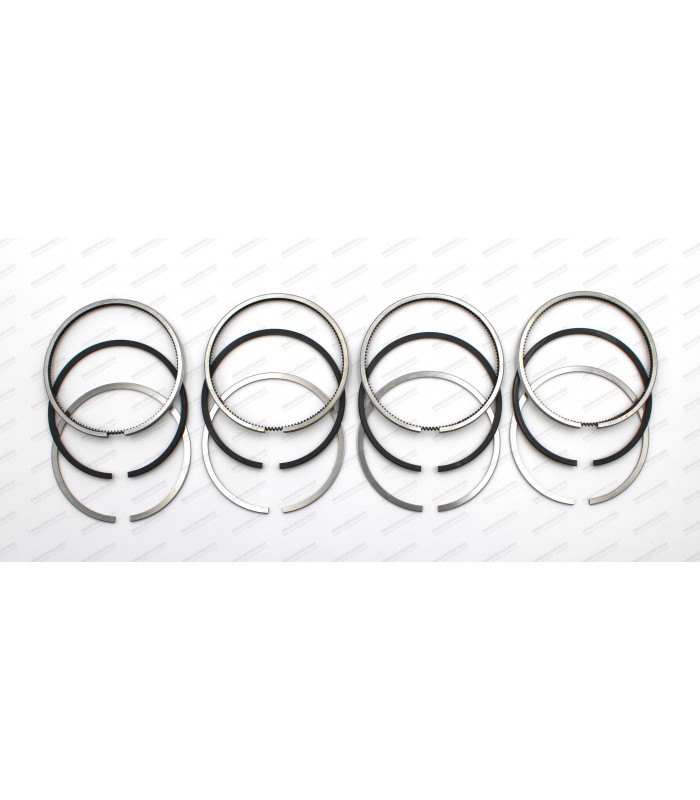

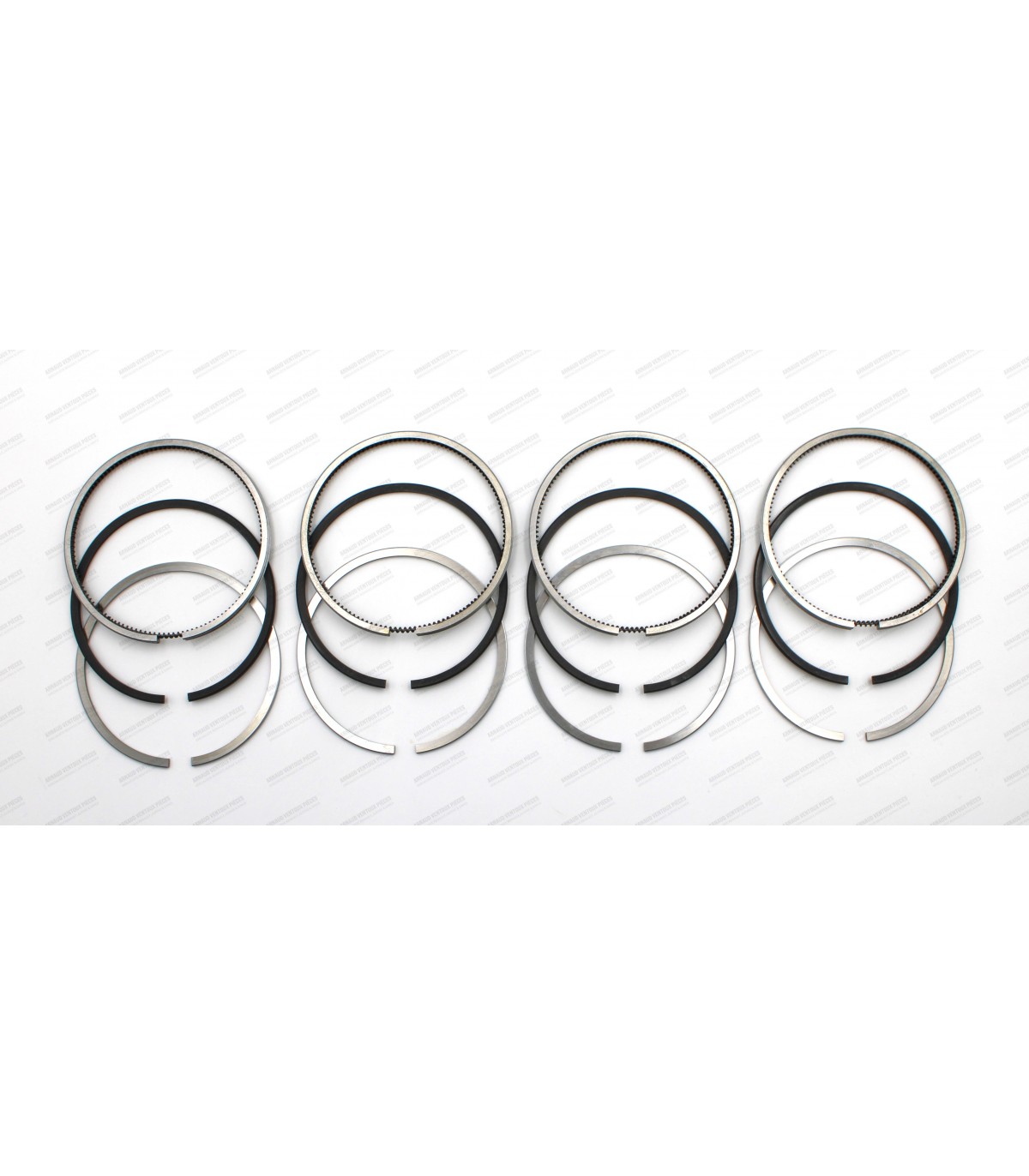

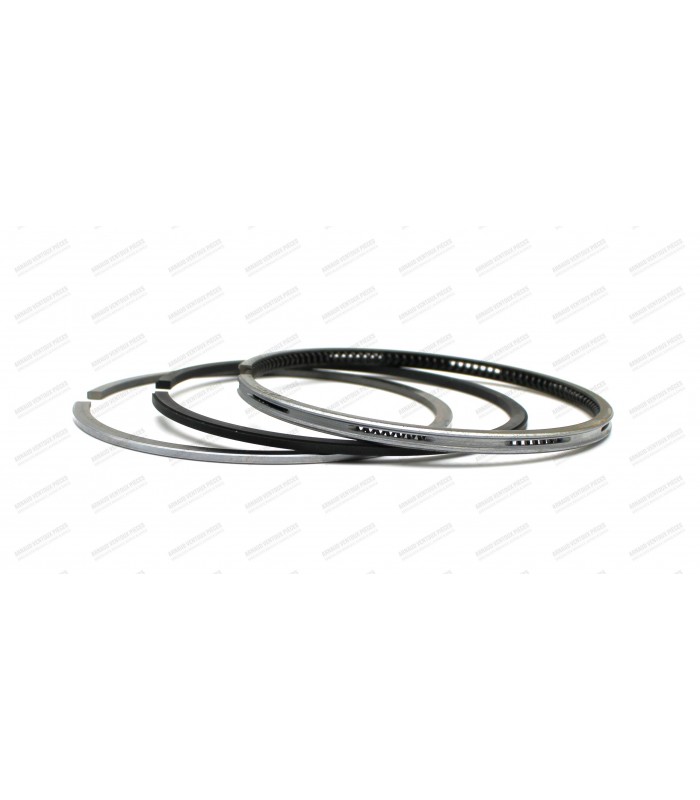

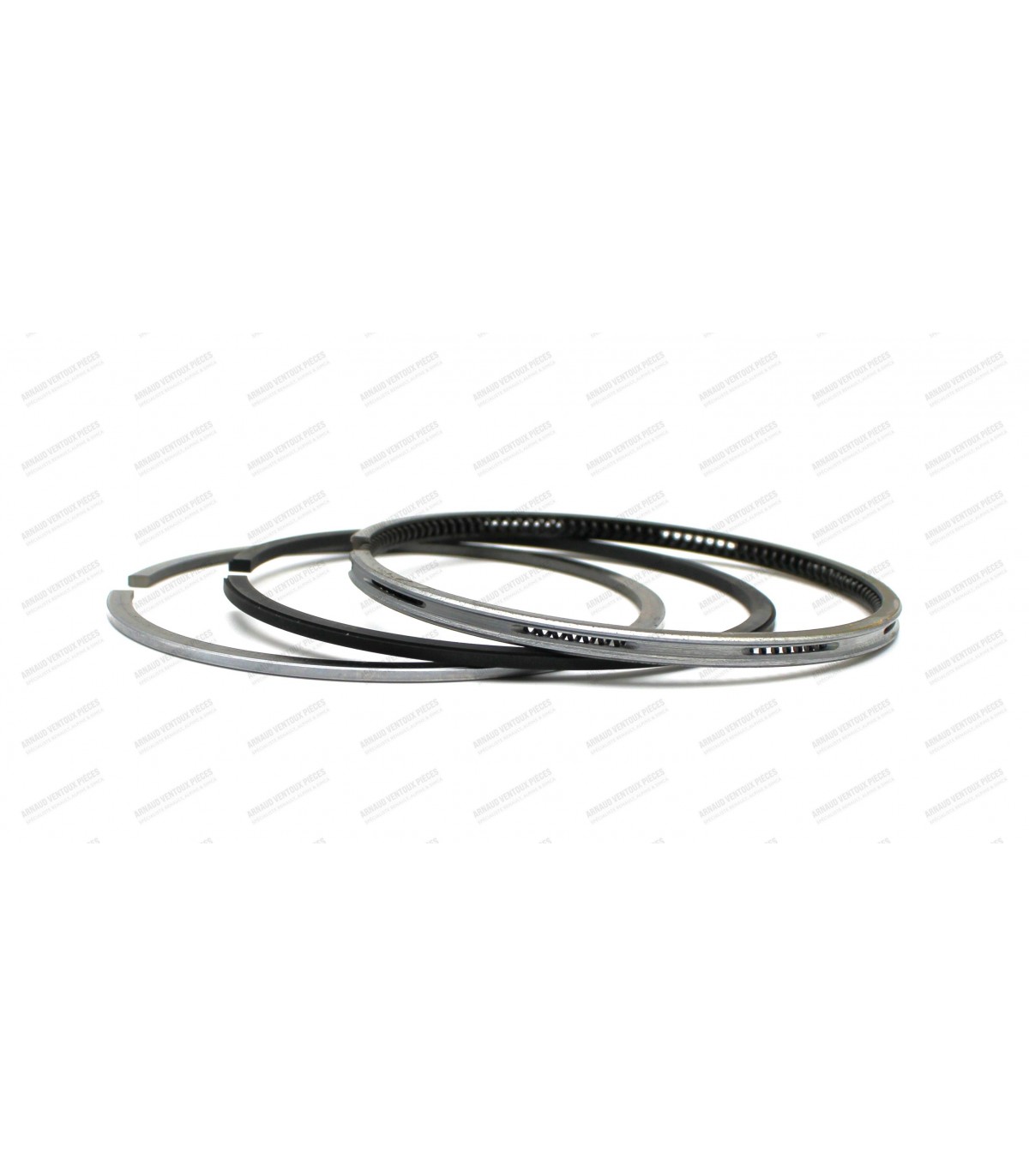

Set of 12 segments "Repair dimension" Ø 77.50mm - 1.75x2x4 - R1 / R2 / R3
Reference:
9069
Segment Characteristics:
- Segment Diameter: Ø 77.5mm
- Thickness of Upper Segments (Fire-resistant): 1.75mm
- Thickness of Intermediate Segments (Waterproof): 2mm
- Low ring thickness (Scraper): 4mm
It is essential to check the ring end gap of each ring before installing them on the pistons, according to the values given by the manufacturer or in the instructions provided.or the values given in the instruction manual.
During installation, the ring end gap must be evenly distributed around the piston circumference at 120°.
€118.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
