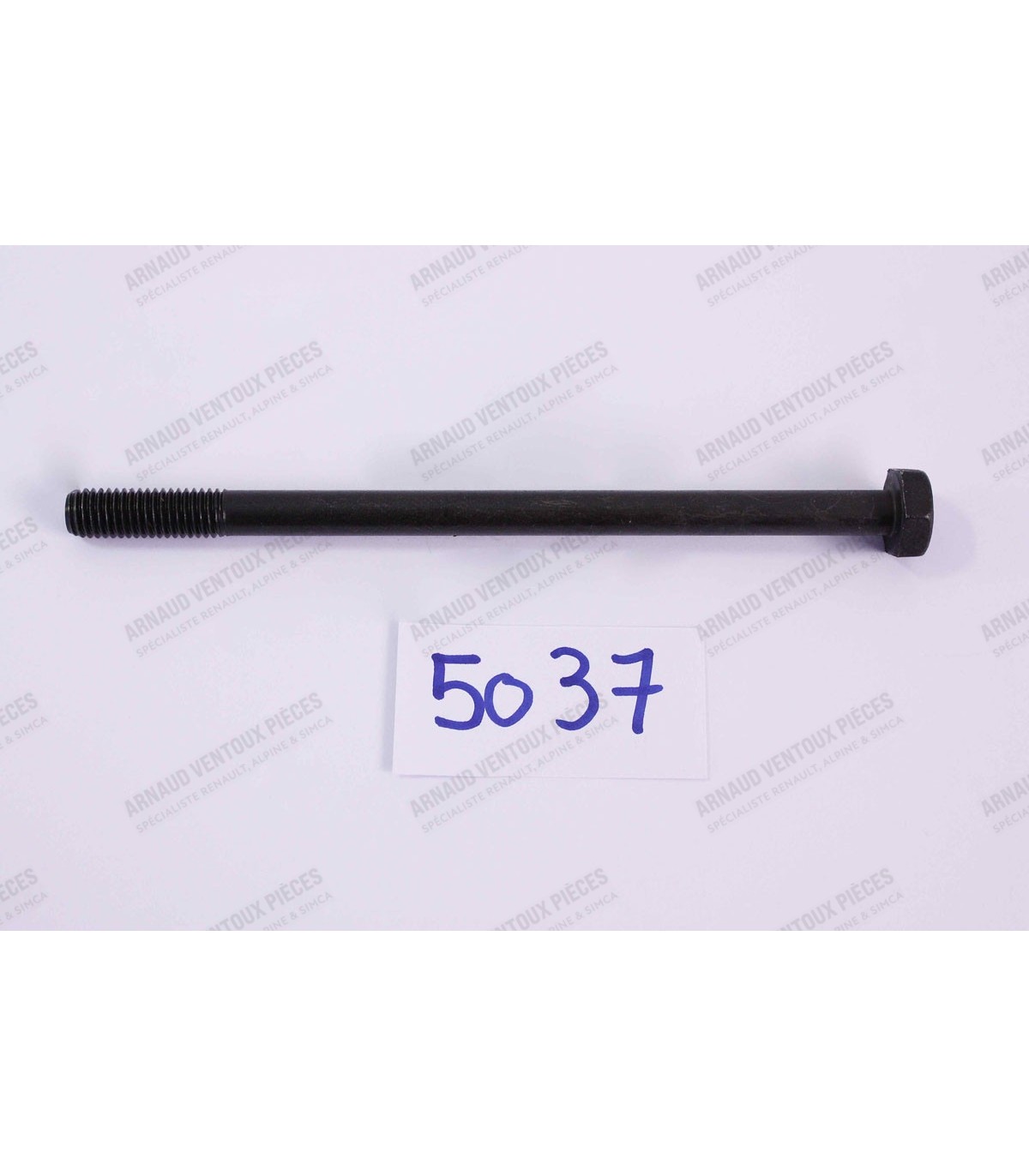

Cylinder head bolt M10 - R5 Alpine (1223) / R5 Alpine Turbo (122B) - ref 7700618680
Reference:
5037
- Length under head : 160mm
- Need x10 bolt for one engine
€20.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
Sold individually
