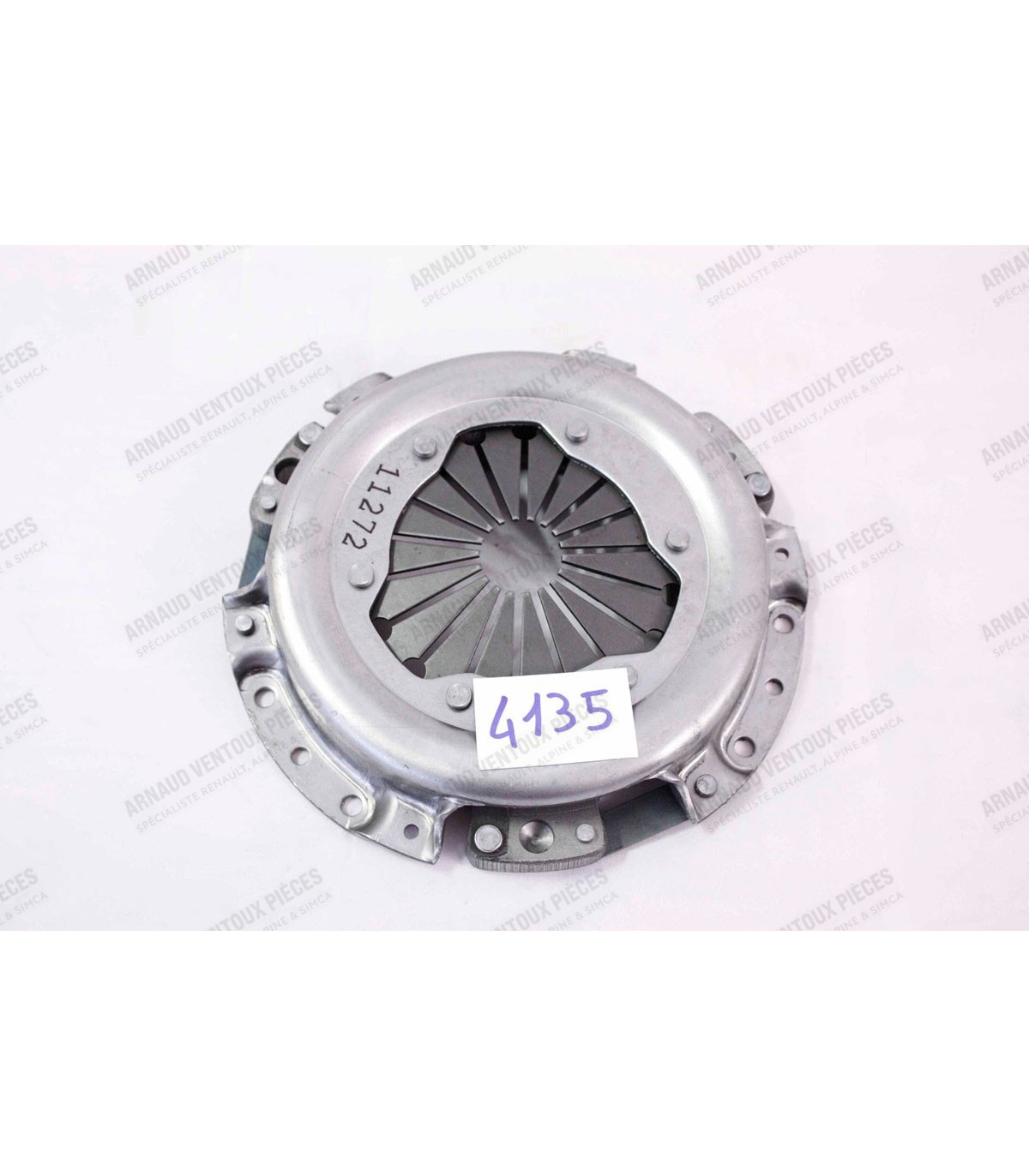

Diaphragm mechanism Ø 160mm (Center distance of fixing holes 50mm)

• Special Premium Quality graphite for clutch release bearings
• Important: The release bearing clamping screw must be placed on the side opposite the fork
• It is possible to keep the release bearing and replace only the graphite ring if worn.
• Depending on the diameter of the return spring, it may be necessary to re-drill the release bearing mounting.
• It is recommended to soak the release bearing in warm engine oil and then wipe it dry before installation to avoid squeaking noises

• Renault and Alpine OE Ref: 8576333 / 7700501036 / 6000001469 + 8576334 / 7700501034 / 6000001468

Suitable for dice in Ø 18.4mm, Ø 19.4mm, Ø 20.4mm

• Screw: M11x150
• Length under head: 138mm
• Sold individually, 10 screws required per motor

• This kit contains an M9 adjustment screw nut and an M8 nut
• To identify a caliper with a square or round joint, refer to the symbol indicated on the caliper casting.
• A square symbol indicates a square joint, while a circle symbol indicates a round joint.
• It is essential to preserve and replace the joint that originally came with the caliper.
• We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different origins, some with square joints and others with round joints.
• It is not recommended to mix calipers on the same axle, as this can lead to the risk of them slipping during braking.

• Capacitor capacity 0.27µF
