Rear Brake Caliper Repair Kit - Ø 32mm (Round Seal)
Reference:
4407

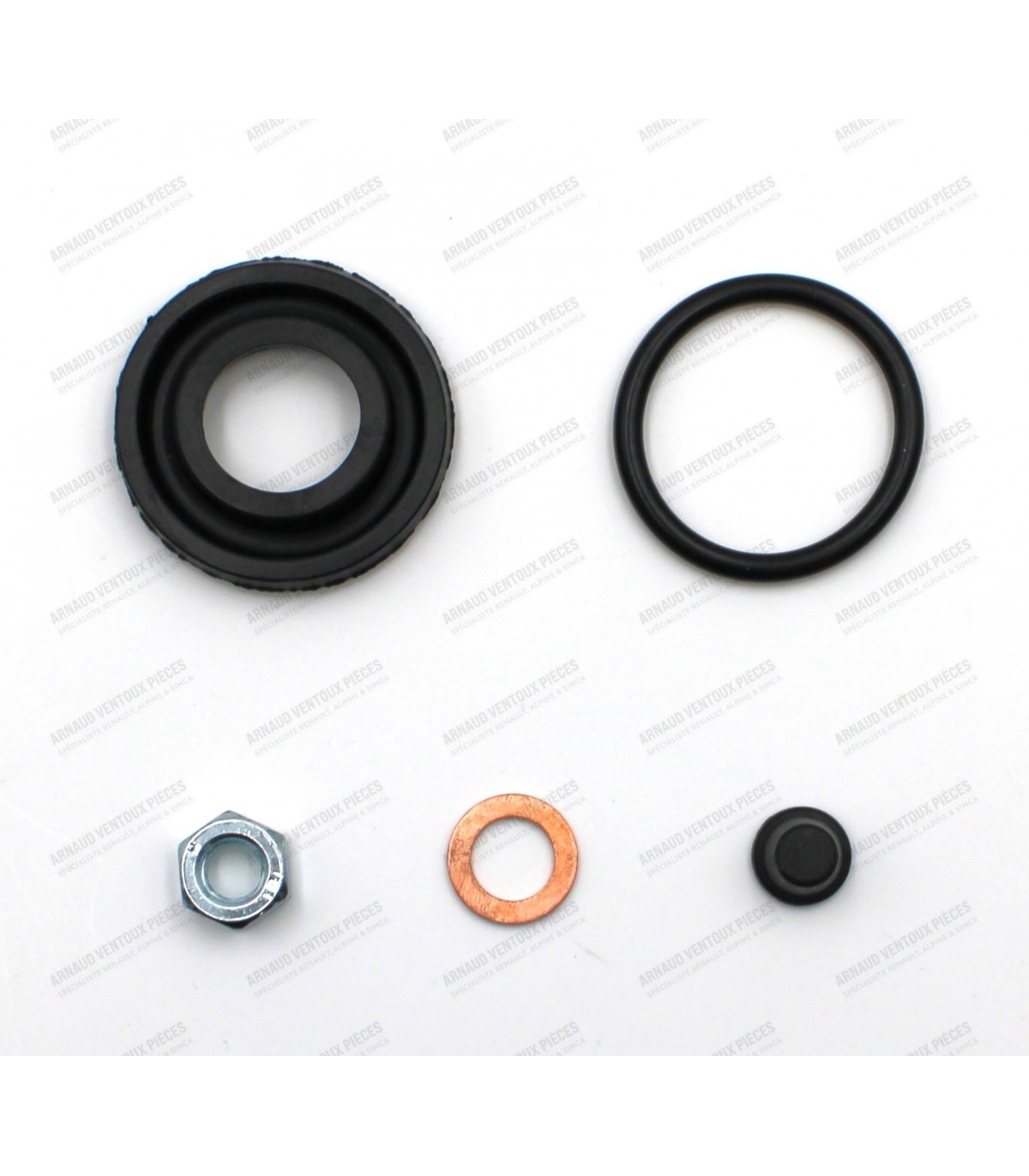

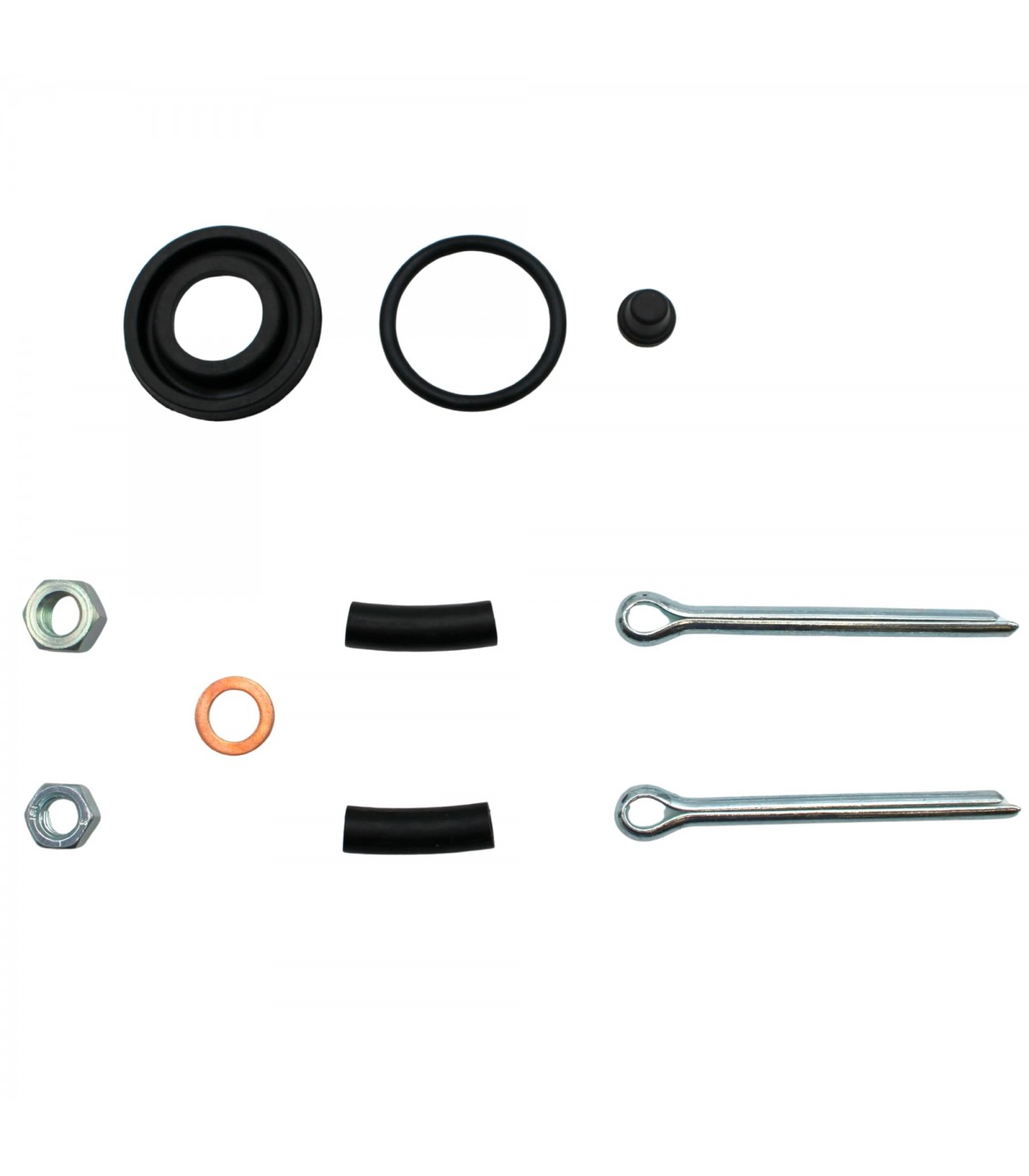

- This kit contains an M9 adjustment screw nut and an M8 nut

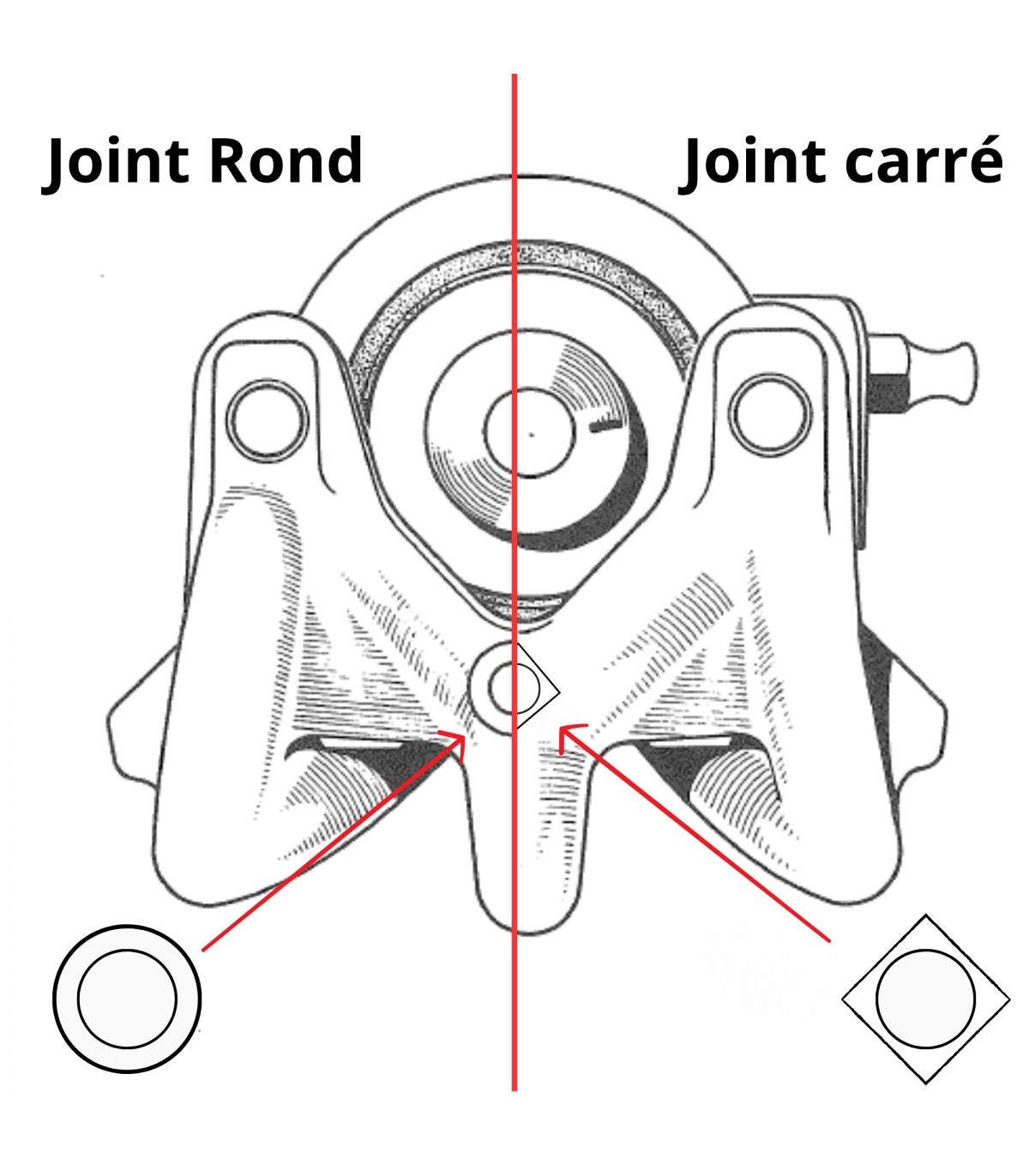

- To identify a caliper with a square or round seal, refer to the symbol indicated on the caliper casting.
- A square symbol indicates a square seal, while a circle symbol indicates a round seal.
- It is essential to replace the same seal type (round or square) according to the symbol on the caliper.
- We recommend checking the symbol displayed on each caliper, as a vehicle may have calipers from different manufacturers, some with square seals and others with round seals. round.
- It is not recommended to mix calipers on the same set, as this can lead to the risk of calipers slipping when braking.
€12.00
(tax incl.)
Order before 1pm and enjoy same day shipping !
